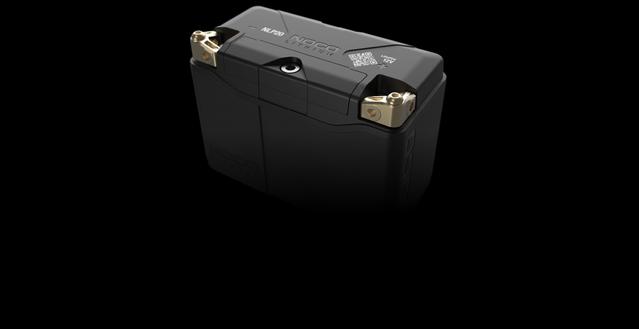

600A Lithium Powersport Battery

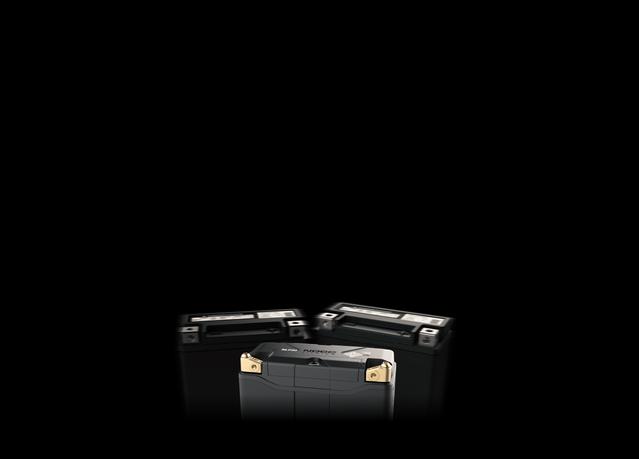

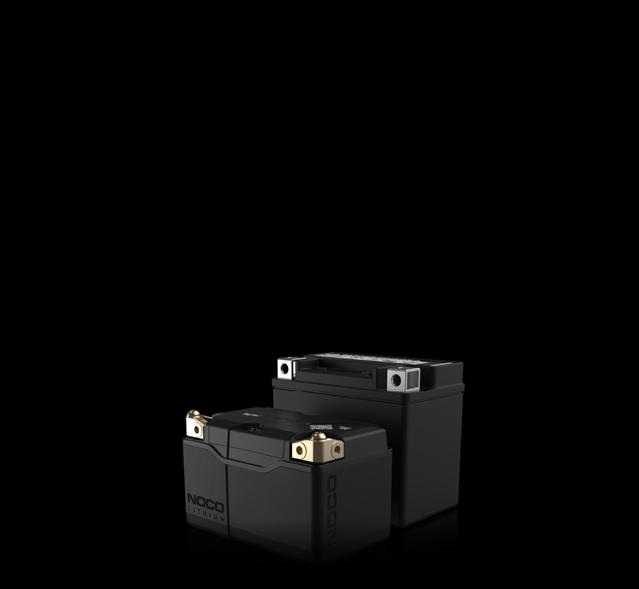

Introducing the all-new NOCO Lithium NLP20 12V Lithium Powersport Battery, a Group 20 battery, rated at 7Ah (89Wh) and 600-amps of starting power. It's better than lead-acid motorcycle batteries in almost every way: no sulfation, no activation, no acid, no maintenance, no water needed, and it comes fully charged and ready to install.

_NLP20_Super_Fast_F6R_XS

Super Fast.

Rapid Recharge.

Full charge in minutes.

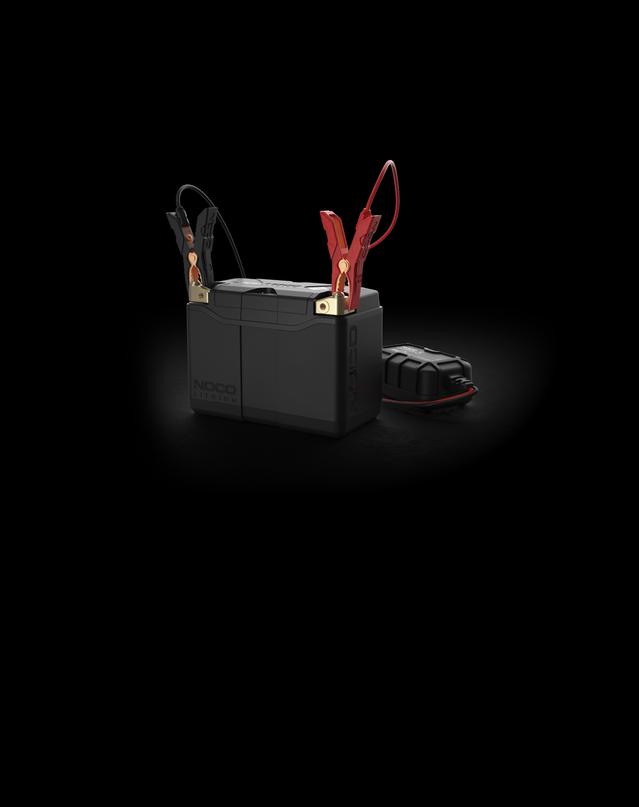

Use the Lithium mode on any GENIUS charger to fully recharge an NLP battery in minutes. Utilizing the most advanced rapid-charge technology, it provides enough starting power with just 5-minutes of charge.

Charger Model

Recharge Time

GENIUS1

420 minutes

GENIUS2

210 minutes

GENIUS5

84 minutes

GENIUS10

42 minutes

_NLP20_Dynamic_BMS_F6L_XS

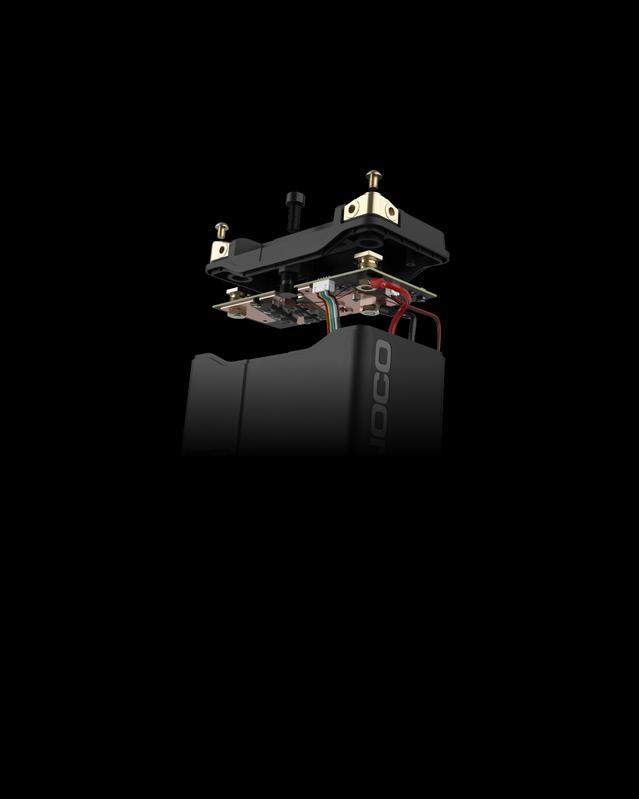

Dynamic BMS.

Active Protection.

Auto-Enabled Management System.

Equipped with an auto-enabled, advanced battery management system that provides maximum protection, performance, and bi-directional cell equalization for long-lasting stability. No BMS reset needed.

PROTECTS AGAINST:

Over-Charge

Short-Circuit

Over-Discharge

Extreme-Heat

Over-Current

Extreme-Cold

_NLP20_More_Ways_To_Connect_F3LA_XS

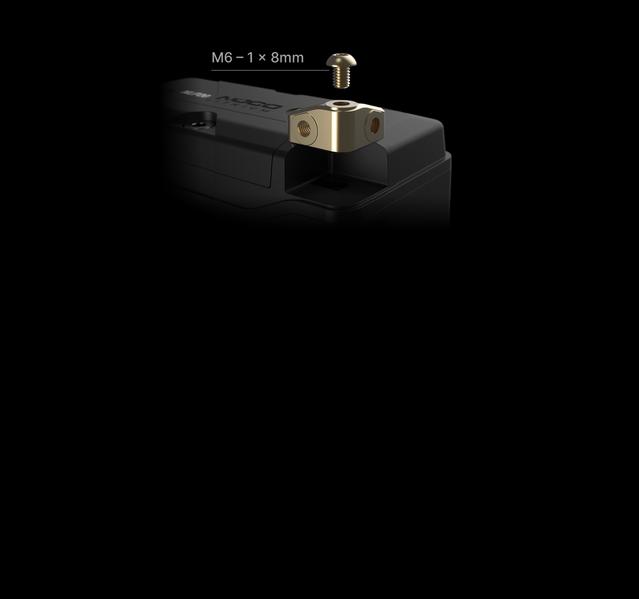

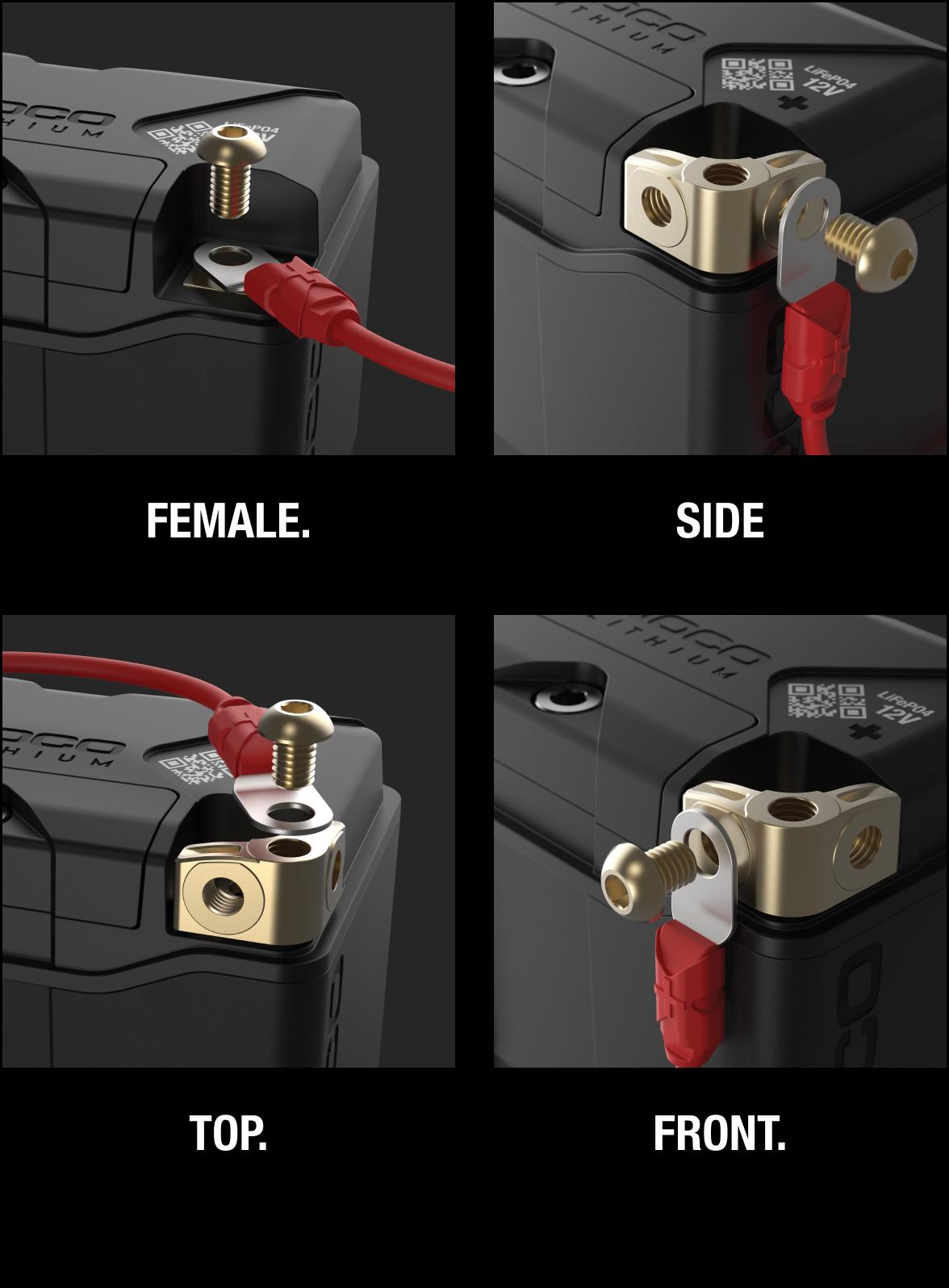

More Ways to Connect.

Multi-Connection Terminals.

NLP Terminals can be mounted from the front, side, or top, and can be removed altogether depending on the application. Use hex screw provided to mount the terminal.

_NLP20_Universal_Mounting_F6R_XS

Universal Mounting.

Adjustable Sizing.

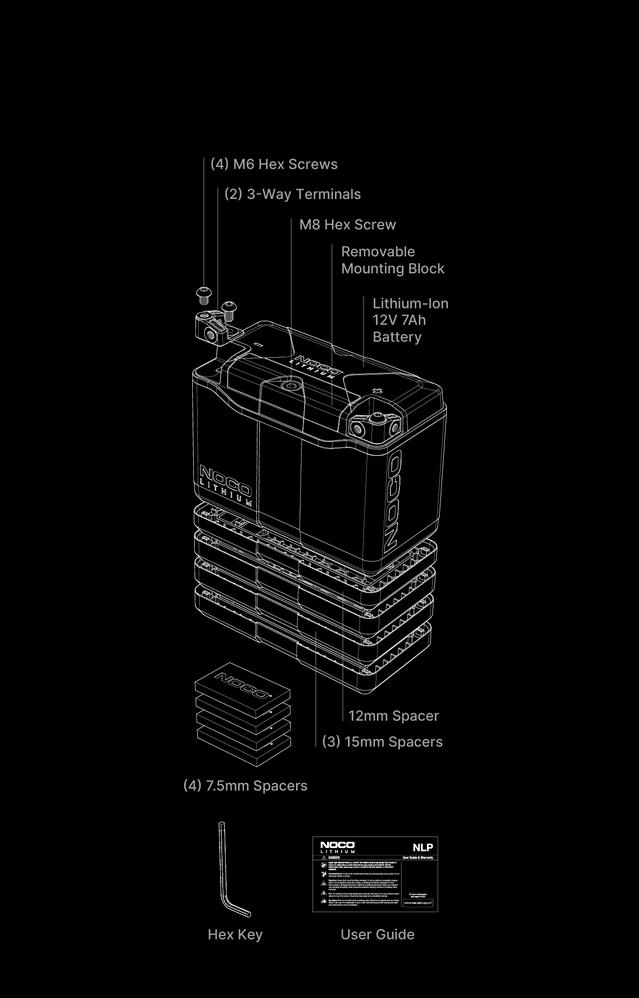

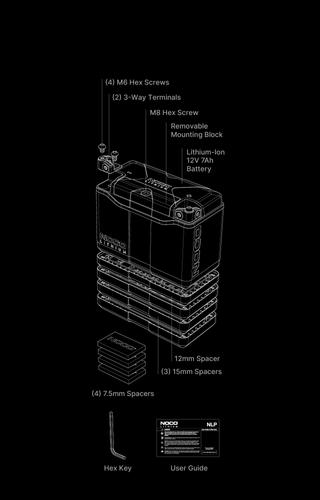

REMOVABLE MOUNTING BLOCK + MODULAR SPACERS.

A removable mounting block allows the battery to fit more applications. The threaded insert enables direct-mounting for additional simplicity and security. Modular mounting spacers can be stacked and attached to the NLP batteries to alter the BCI size enabling the battery to be safely and securely mounted.

Compatible Battery Sizes.

Compatible with most powersport brands, including Aprilla, BMW, Buell, Ducati, Harley-Davidson, Indian, Triumph, KTM, Argo, Can-Am, Honda, Husqvarna, Kawasaki, Suzuki, Arctic Cat, BRP, Waverunner, Polaris, Vespa, and more.

NLP20 Battery

No Spacers

Height: 5.1" (130mm)

NLP20 Battery +

.47" (12mm) Spacer &

.59" (15mm) Spacer

Height: 6.08" (154.5mm)

NLP20 Battery +

.47" (12mm) Spacer &

.59" (15mm) Spacer &

(2) Width Spacers

Height: 6.08" (154.5mm)

Width: 4.02" (102mm)

BTX15L

BTX15L-BS

BTX20L

BTX20HL-BS

BTX20L-BS

BTZ20L

B16L-B

YTX15L

YTX15L-BS

GYZ20L

GYZ20HL

YTX20HL

YTX20L

YTX20L-BS

YB16HL-A-CX

YB16L-B

SYB16L-B

–

ETX20L

ETX16L

NLP20 Battery +

(3) .59" (15mm) Spacers

Height: 6.79" (172.5mm)

NLP20 Battery +

(2) .59" (15mm) Spacers &

(1) Length Spacer

Height: 6.20" (157.5mm)

Length: 7.19" (182.5mm)

NLP20 Battery +

(2) .59" (15mm) Spacers &

(4) Length Spacers

Height: 6.20" (157.5mm)

Length: 8.07" (205mm)

–

B18L-A

B50-N18L-A3

YTX20HL-PW

YIX20HL-BS

YTX20HL-BS-PW

–

Y50-N18L-A3

-

NLP20 Battery +

(3) .59" (15mm) Spacers &

(2) Width Spacers

Height: 6.79" (172.5mm)

Width: 4.02" (102mm)

-

-

B16CL-B

-

-

YB16CL-B

-

YTX® is a registered trademark of GS Yuasa Corporation, and is not affiliated with NOCO.
