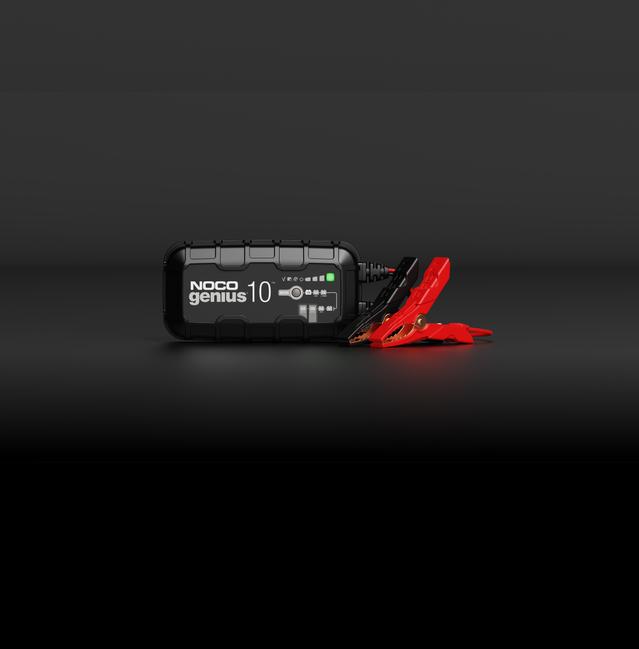

GENIUS10  6V/12V 10-Amp Smart Battery Charger

5/5
4 Reviews

75% Of Reviewers Recommend This Product

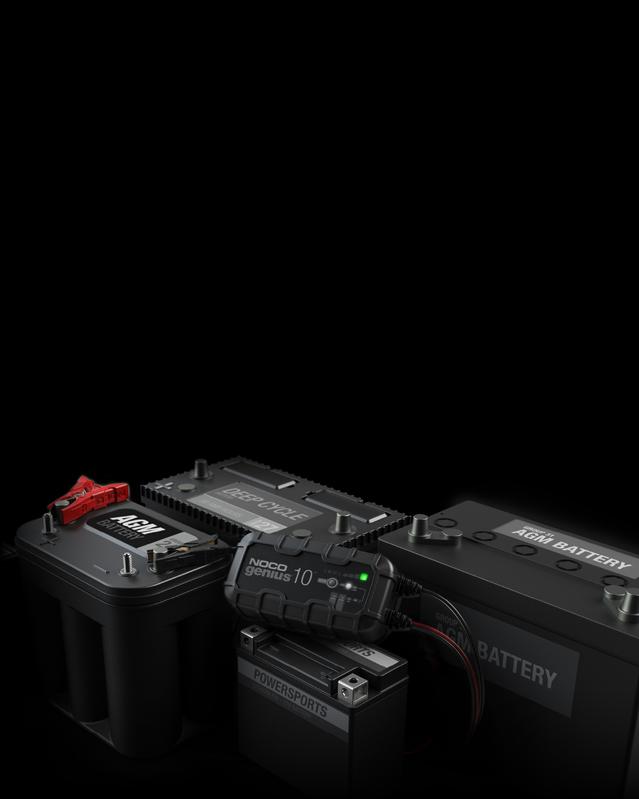

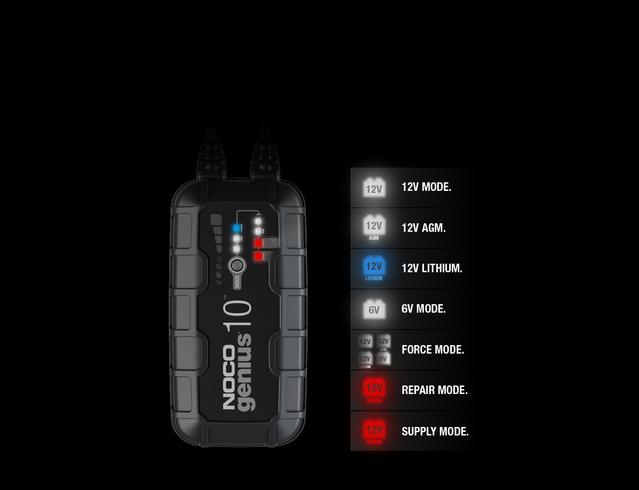

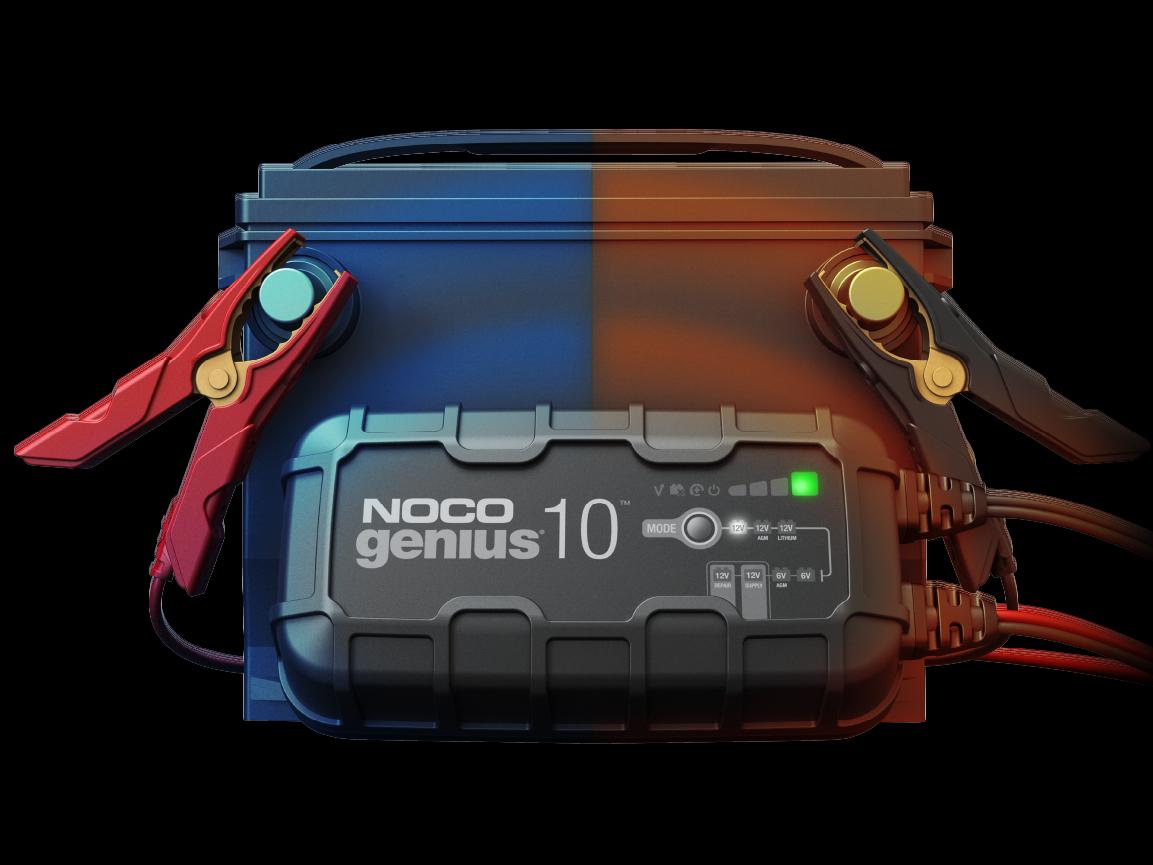

Multi-Voltage. Multi-Chemistry. Multi-Battery Type.

A multi-functional design that allows you to charge in more ways. Effortlessly charge multiple battery voltages (6-Volt and 12-volt lead-acid and lithium-ion batteries) chemistries (Flooded, gel, maintenance-free and AGM batteries) and types (Starter, deep-cycle, marine, powersport and more).

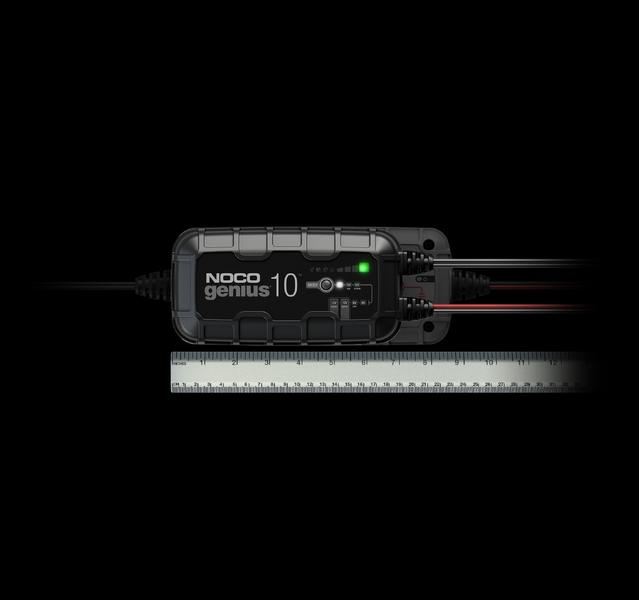

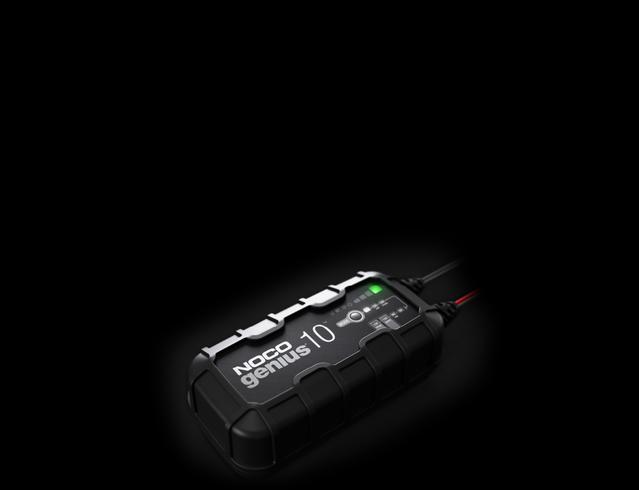

Our Most Powerful, Efficient, and Compact Charger Yet.

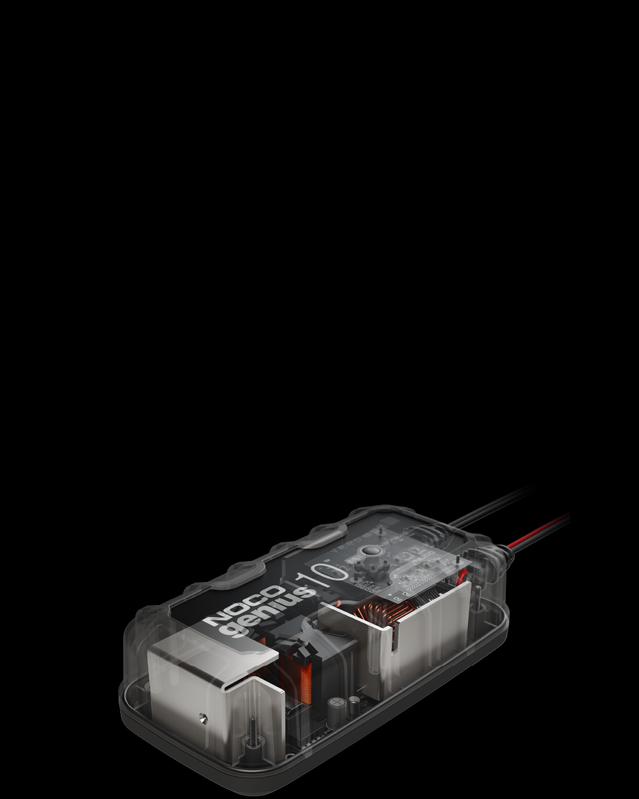

Compact, yet powerful battery charger. A mix of electrical engineering and industrial design pack a powerful battery charger into a tiny footprint. The GENIUS10 uses high-frequency switch-mode technology to efficiently convert A/C power into safe D/C power for battery charging. And its onboard microcomputer precisely controls the charging to minimize power loss to create an incredibly compact form factor.

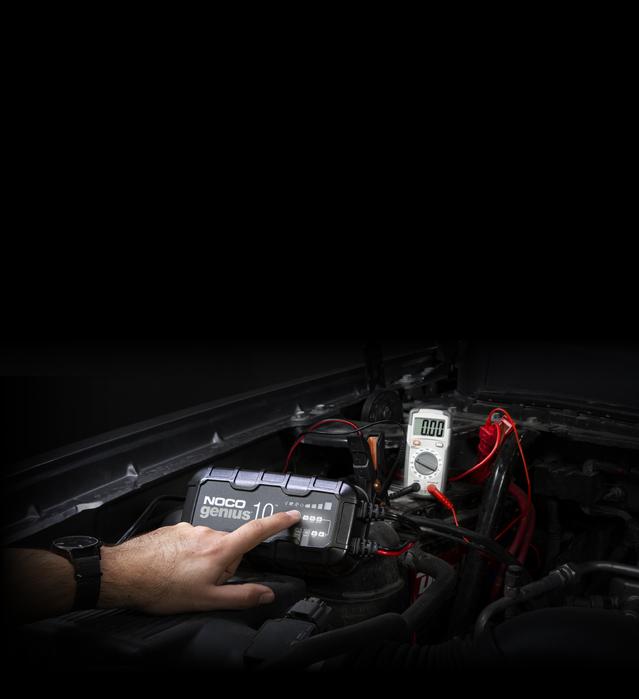

Improved Start Voltage Sensor. All-New Force Mode.

The all-new start-voltage sensor allows the GENIUS to detect and charge dead batteries as low as 1-volt. For extremely dead batteries lower than 1-volt, manually turn on force mode to detect and charge batteries all the way down to zero volts.

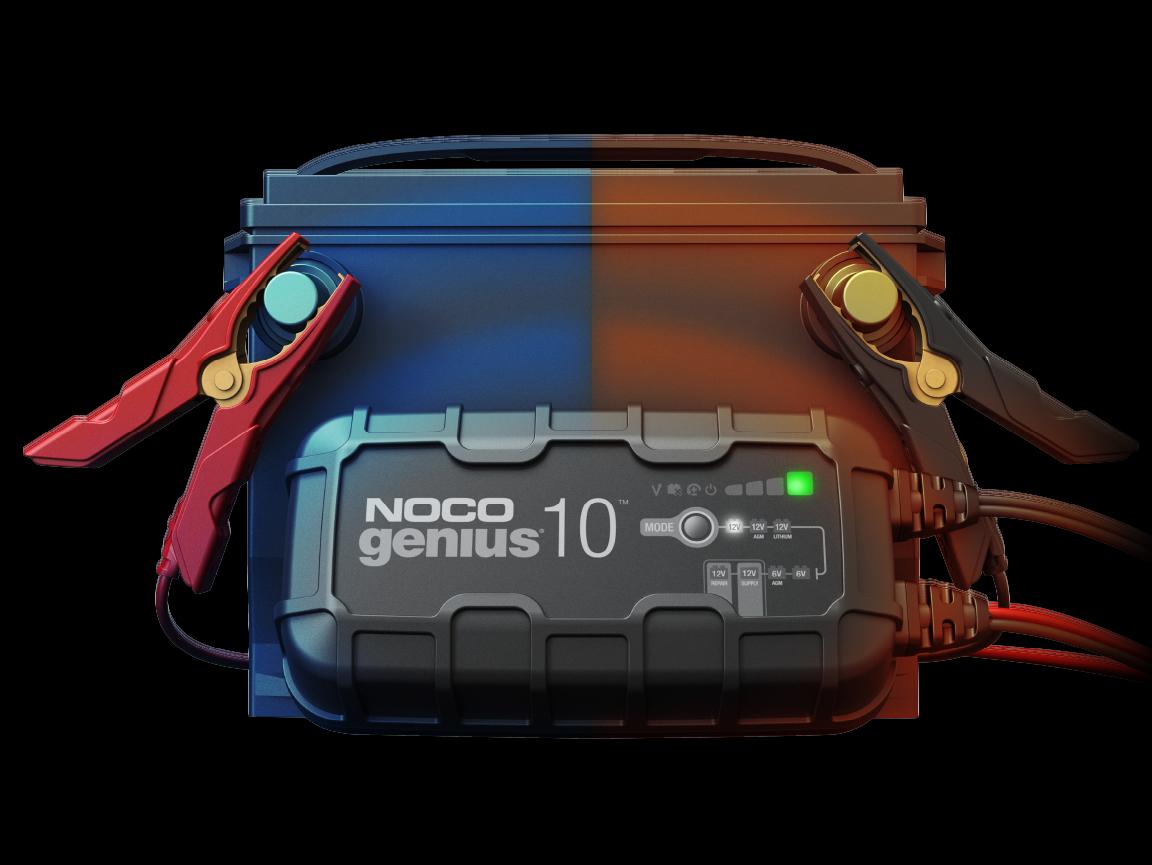

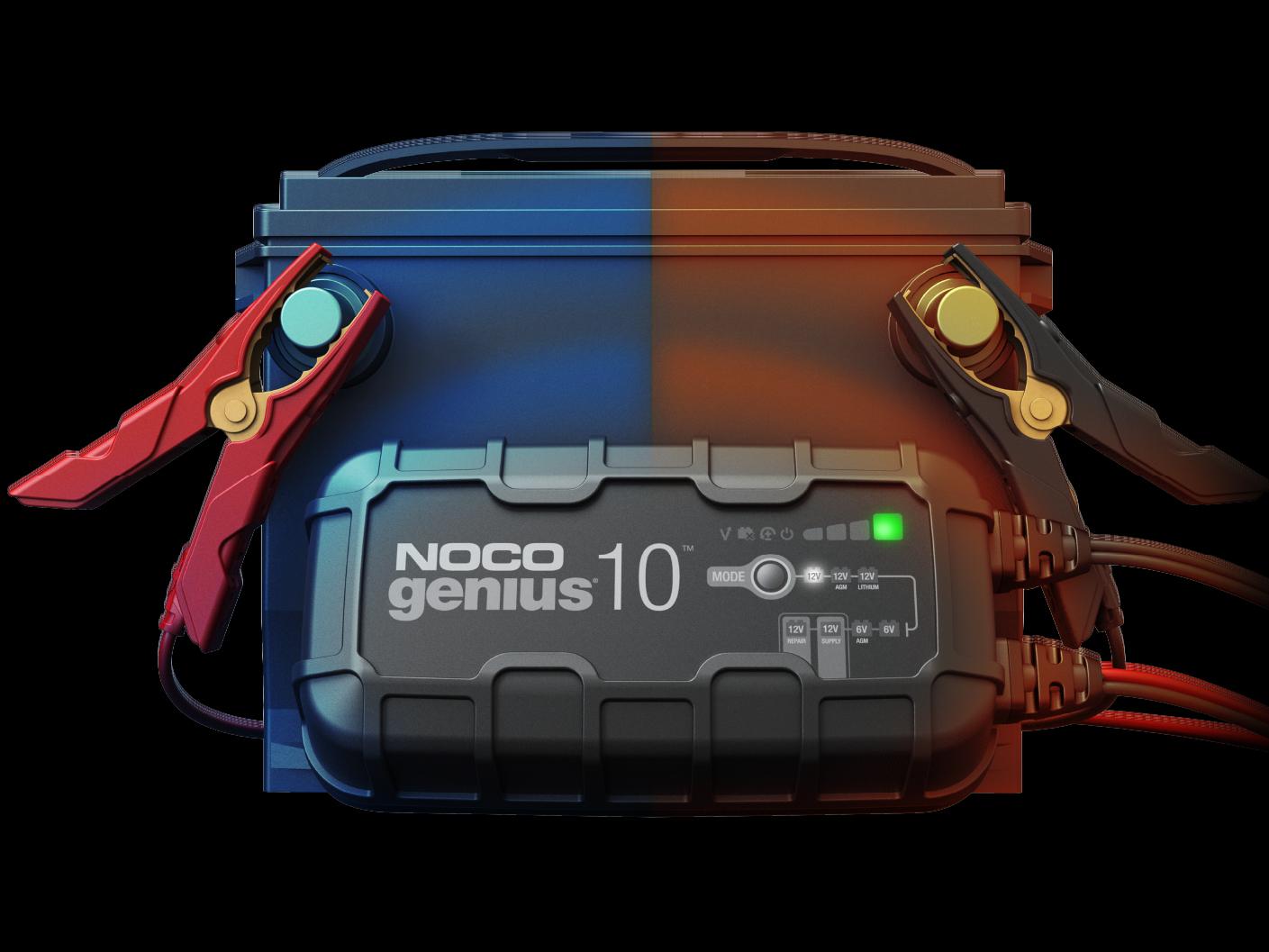

More Precise Charging in Any Climate.

The new integrated thermal sensor automatically monitors and adjusts the charging cycle based on fluctuations of ambient temperature, limiting the chance of under-charging or over-charging, providing a more accurate and fully charged battery. Avoids under-charging in cold weather down to -4 F and avoids over-charging in hot weather up to 104 F.

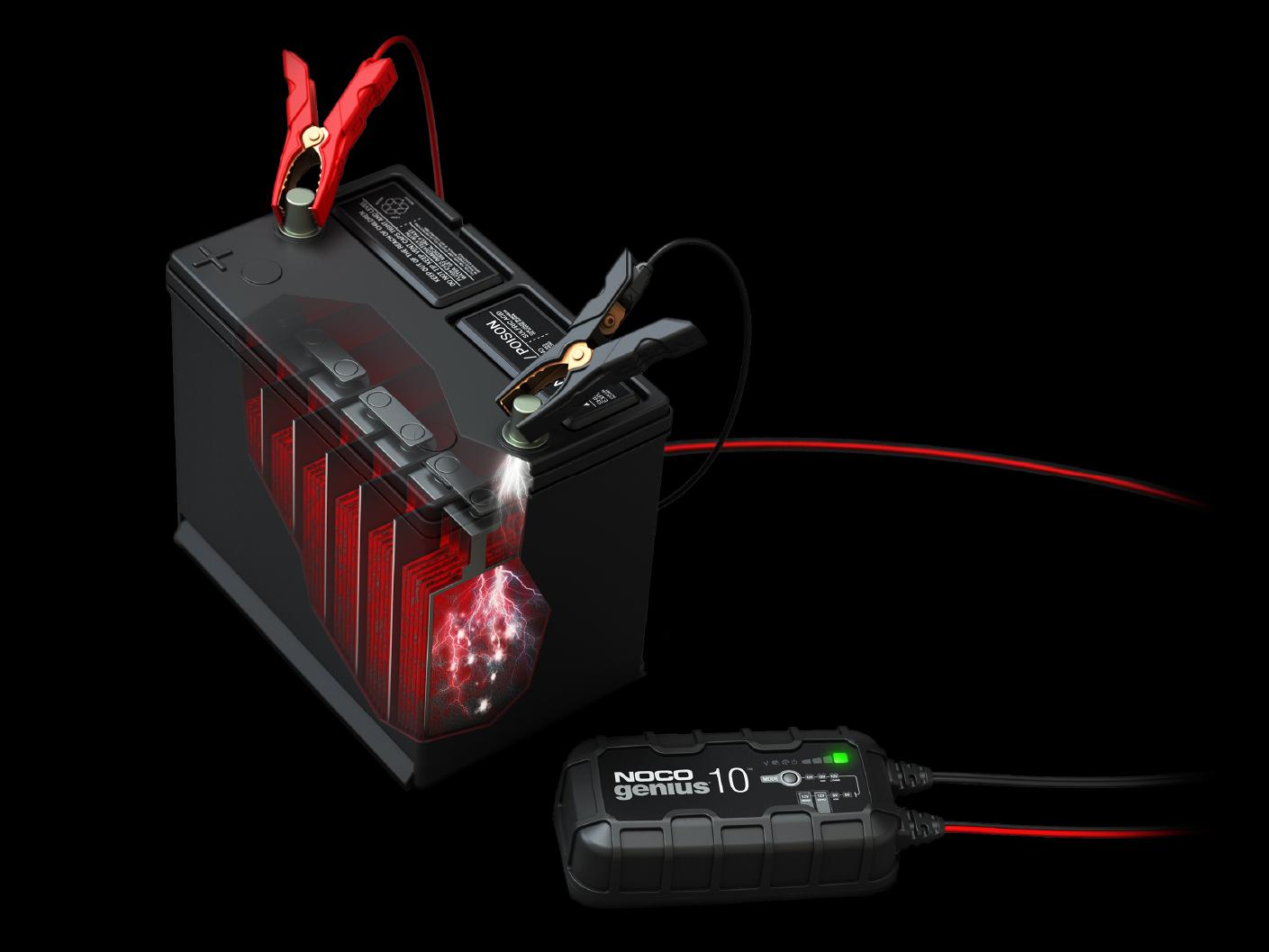

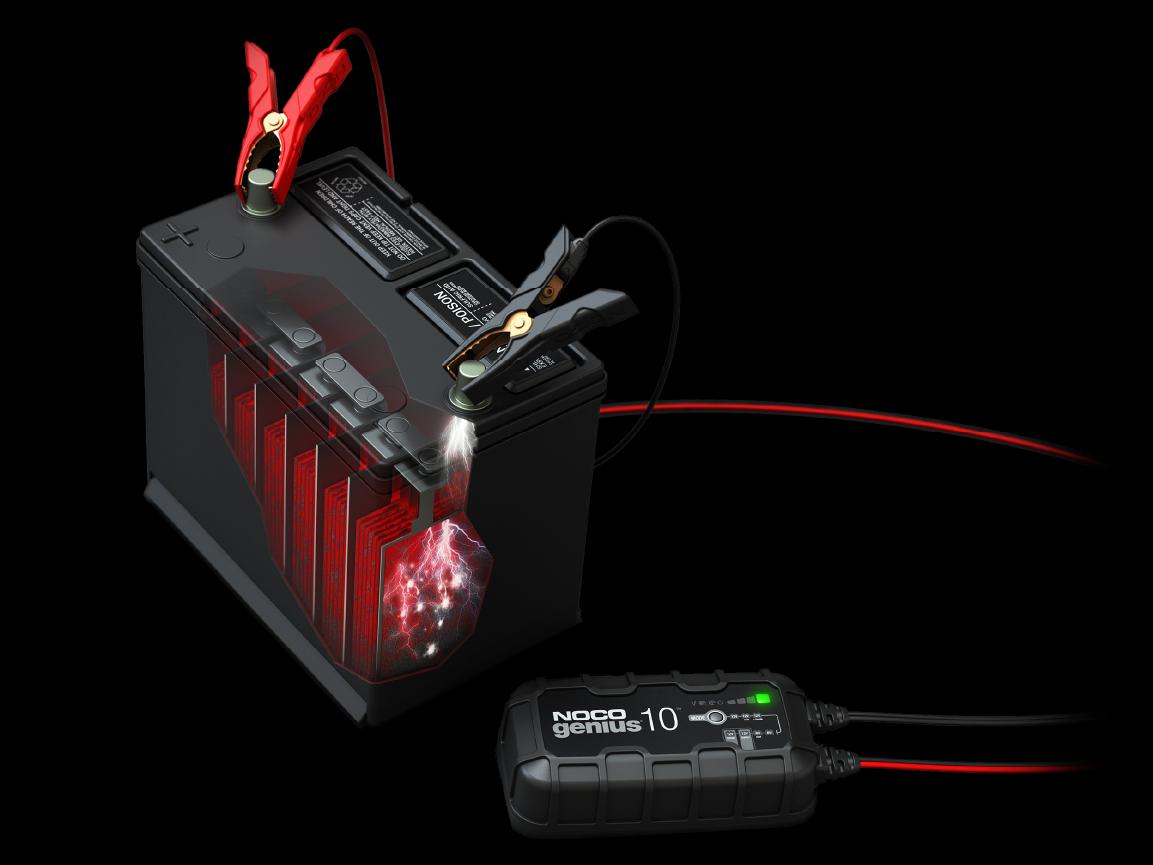

Auto Detection. Auto Repair. Improved Performance.

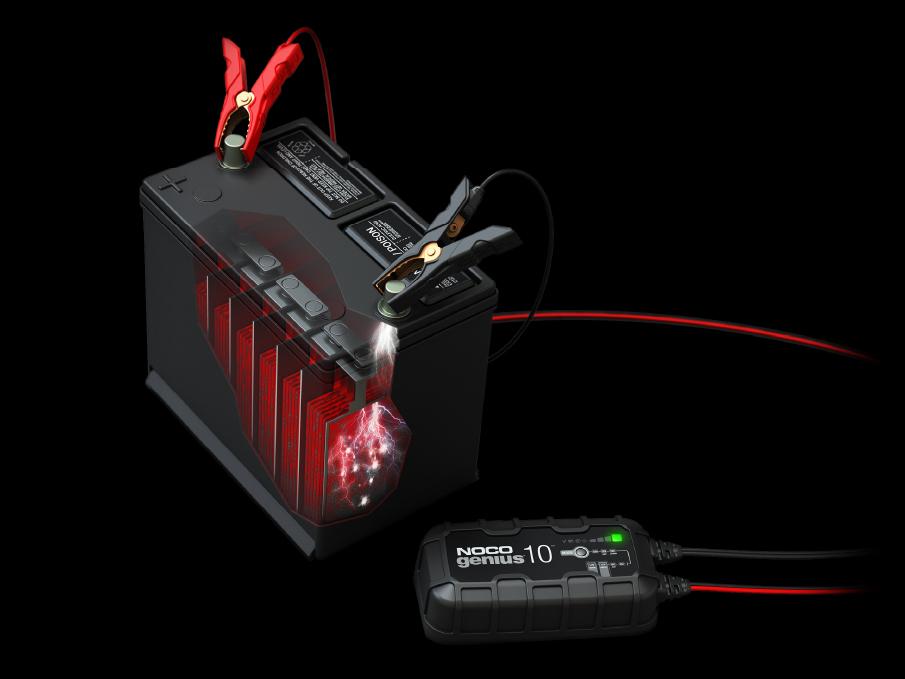

The GENIUS10 automatically detects sulfation/acid stratification. If any is found, the GENIUS10 will automatically repair and reverse the damage done to the battery, extending the usable life and increasing the performance.

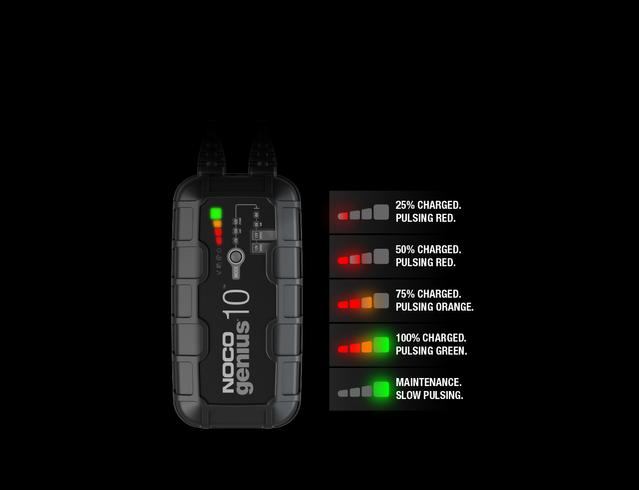

Year-Round Charging. Zero Overcharge. Auto Memory.

Finally a charger from start to finish that’s completely automatic. No special modes, no technical knowledge required. Genius will safely charge any battery. Detect damaged batteries and intuitively repair them. And actively monitor for long-term battery maintenance and extend battery life. This system allows for continuous operation without user intervention, and zero risk of overcharging your battery.

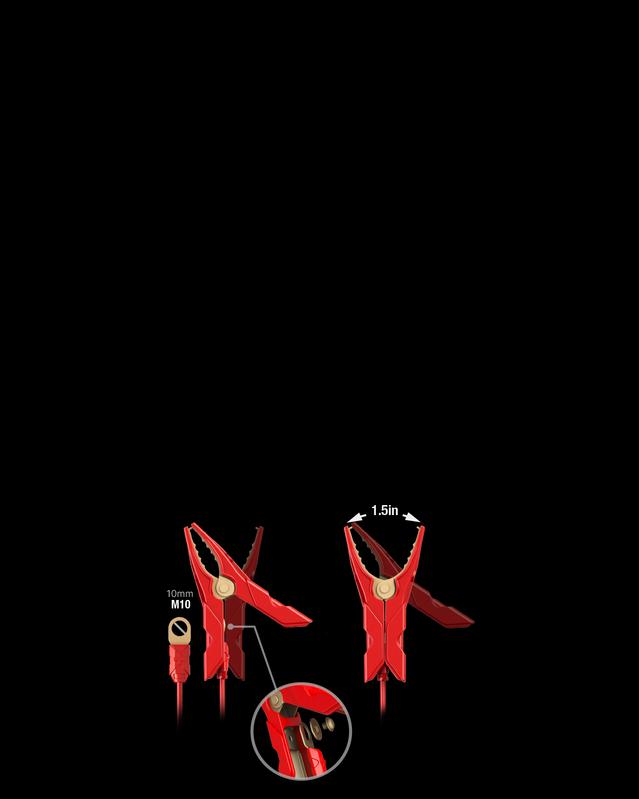

Improved Clamping Range. Improved Clamping Force.

Genius clamps are built with needle-nose profiles for smaller terminal applications and detachable integrated eyelets for permanent mounting the accessory to battery. Designed to fit battery terminals of any shape and size. Engineered for improved clamping range, clamping force, and higher conductivity.

Technical Specifications

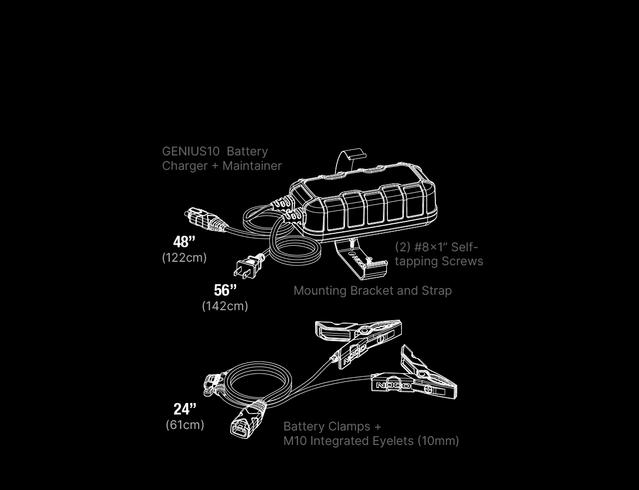

What’s In The Box

GENIUS10 Battery Charger w/ Interchangeable Connector
Clamps w/ Integrated Eyelets
Mounting Bracket w/ Strap
(2) Self-Tapping Screws
User Guide & Warranty Information

Operating Requirements

Line Voltage: 120V to 240V AC
Frequency: 50Hz to 60Hz
Operating Temperature: -4° to 104° F (-20° to 40° C)
Storage Temperature: -22° to 140° F (-30° to 60° C)
Relative Humidity: 0 to 95% Non-Condensing

Charging

Current: 10 Amps DC
Voltages: 6V, 12V
Chemistry: Lead-Acid and Lithium
Types: Wet, Gel, MF, CA, EFB, AGM, Lithium
Capacity Range: Up to 230 Amp-Hours
Maintenance: All Battery Sizes

Power

Consumption: 150 Watts (Max)
Efficiency: 87% (120VAC / 230VAC)

Protection

IP Rating: IP65

Safety

Short-Circuit: Yes
Open-Circuit: Yes
Overheating: Yes
Overcharge: Yes
Spark-Proof: Yes
Reverse Polarity: Yes

Size

Height: 7.1 Inches (180mm)
Width: 3.6 Inches (92mm)
Depth: 2.3 Inches (59mm)
Weight: 3.33 Pounds (1.5kg)

Cord Management

DC Cable Length: 77.6 Inches (197cm)
DC Cable Size: 14 AWG
DC Fuse Size: 20 AMP MINI ® Blade Fuse
AC Cable Length: 71.7 Inches (182cm)
AC Cable Size: 18 AWG
Oil, gas, grease, water, chemical, UV, abrasion resistant

Limited Warranty

3-Year Limited Warranty
