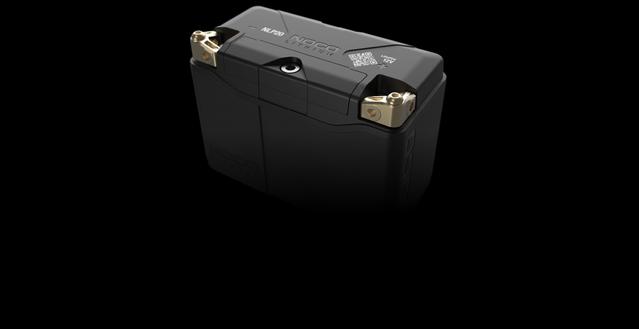

NLP20  12V 600A Lithium Powersport Battery

3.86/5
7 Reviews

57% Of Reviewers Recommend This Product

The most highly-designed and engineered lithium powersport battery series ever.

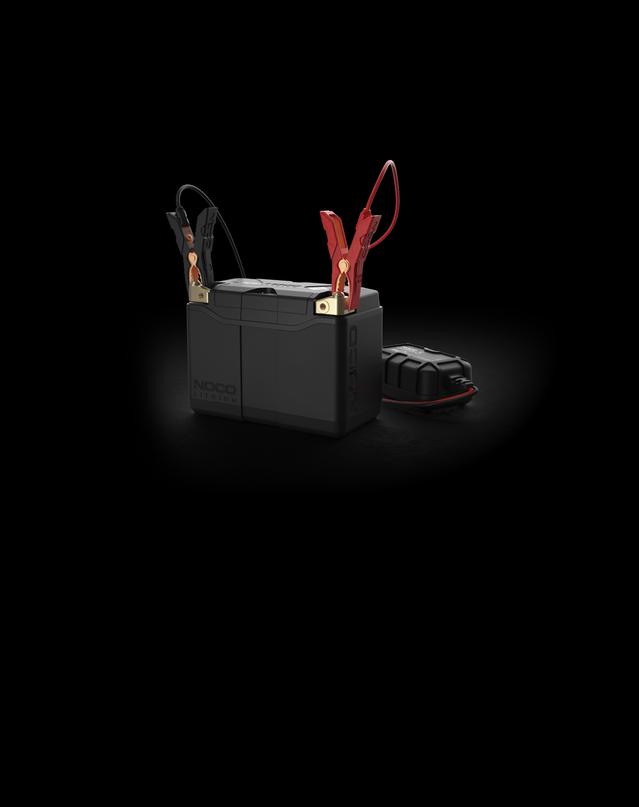

Use the Lithium mode on any GENIUS charger to fully recharge an NLP battery in minutes.

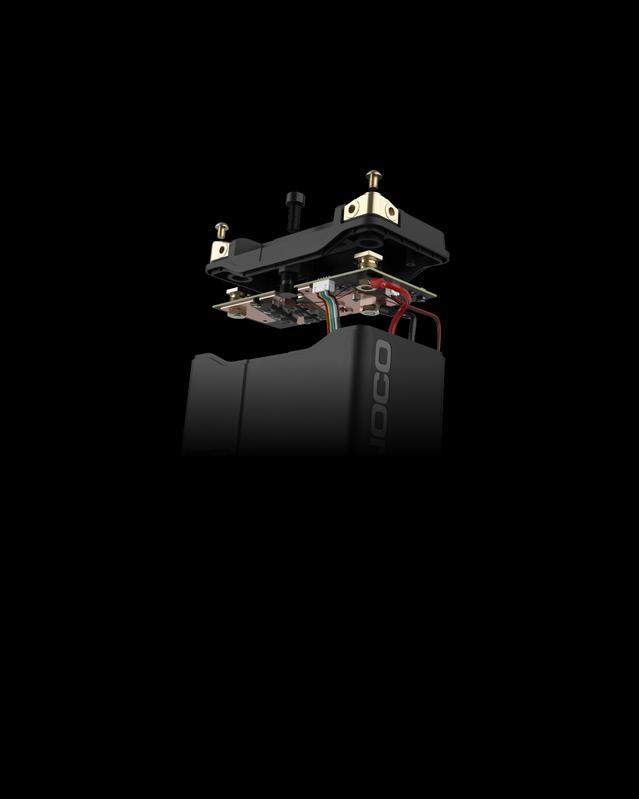

Equipped with an auto-enabled, advanced battery management system that provides maximum protection,performance, and bi-directional cell equalization for long-lasting stability. No BMS reset needed.

Designed with a custom rubber dampening base and foam inserts to extend the life of the battery and keep connections secure.

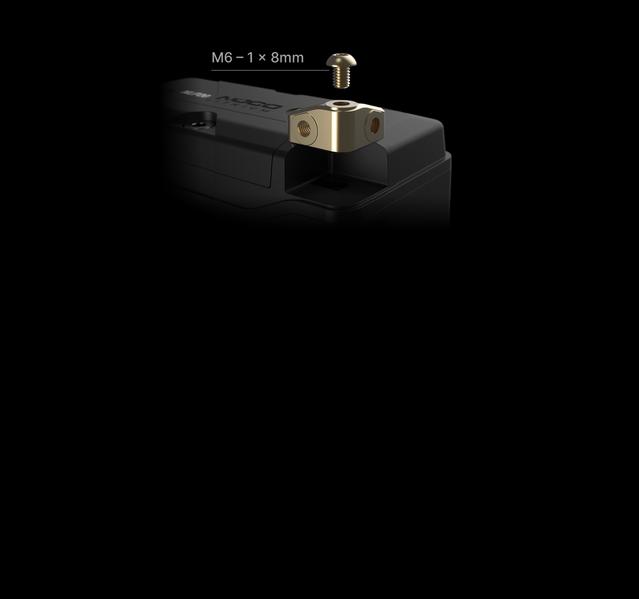

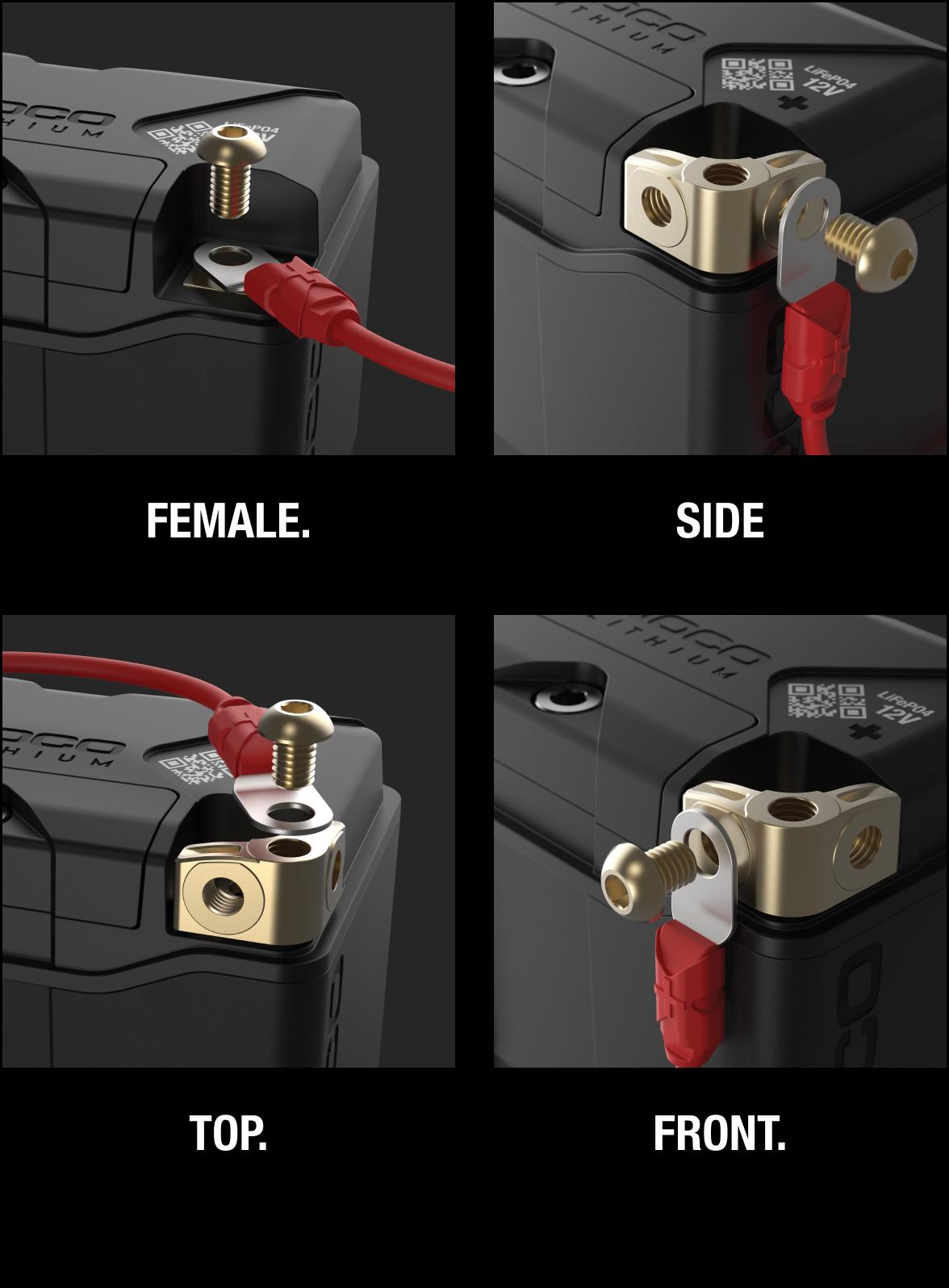

NLP Terminals can be mounted from the front, side, or top, and can be removed altogether depending on the application.

A removable mounting block allows the battery to fit more applications. The threaded insert enables direct-mounting for additional simplicity and security.
Modular mounting spacers can be stacked and attached to the NLP batteries to alter the BCI size enabling the battery to be safely and securely mounted.

Technical Specifications

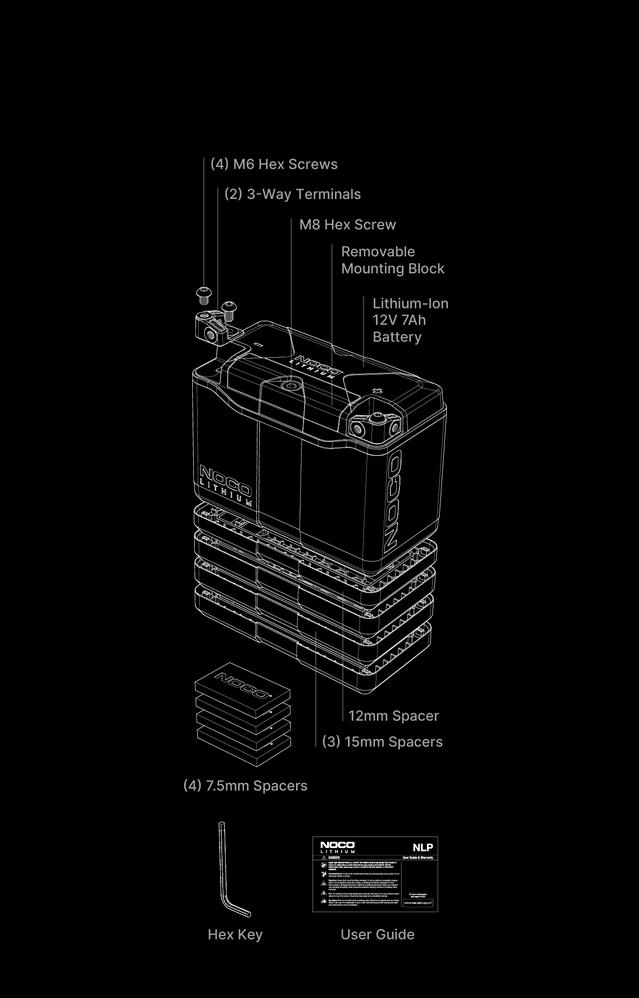

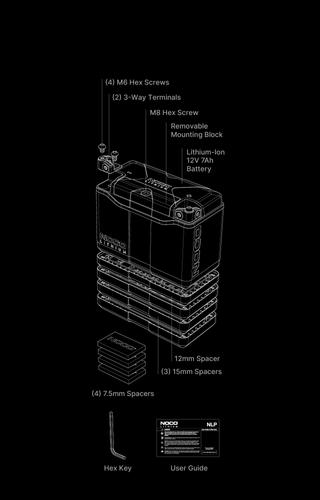

What's In The Box

  • NLP20 Lithium Powersport Battery
  • (2) 3-Way Terminals
  • (1) 0.5 Inch (12 mm) Spacer
  • (3) 0.6 Inch (15 mm) Spacers
  • (4) 0.3 Inch (7.5 mm) Spacers
  • Hex Key
  • Safety and Warranty Information

Battery Chemistry

Lithium Iron Phosphate (LiFePO4)

Battery Capacity

7 Amp-Hours / 89.6 Watt-Hours

Lead-Acid Equivalent

19 Amp-Hours

Starting Current

600 Amps (Peak)

BCI Size

20

Compatible Battery Sizes

BTX20HL-BS
B16L-B
BTX15L-BS
BTX20L
B18L-A
BTZ20L
B16CL-B
B50-N18L-A3
BTX20L-BS
BTX15L

GYZ20L
GYZ20HL
YTX20HL
YIX20HL
YTX20HL-PW
YTX20HL-BS
YTX20HL-BS-PW
YIX20HL-BS
YTX15L
YTX20L
YTX15L-BS
YTX20L-BS
YB16HL-A-CX
YB16L-B
YB16CL-B
SYB16L-B
Y50-N18L-A3

ETX16L
ETX20L

Dimensions

Height: 5.12 Inches (130 mm)
Width: 6.9 Inches (175 mm)
Depth: 3.4 Inches (87 mm)
Weight: 3.73 lbs (1.7 kg)

IP Rating

IP66 Waterproof Rated

Limited Warranty

5-Year Limited Warranty
