NLP20

Tech Specs

What's in the box

  • NLP20 Lithium Powersport Battery
  • (2) 3-Way Terminals
  • (1) 0.5 Inch (12 mm) Spacer
  • (3) 0.6 Inch (15 mm) Spacers
  • (4) 0.3 Inch (7.5 mm) Spacers
  • Hex Key
  • User Guide

Battery Chemistry

Lithium Iron Phosphate

Battery Capacity

7 Amp-Hours / 89.6 Watt-Hours

Lead-Acid Equivalent

19 Amp-Hours

Starting Current

600 Amps (Peak)

BCI Size

20

Compatible Battery Sizes

BTX20HL-BS
B16L-B
BTX15L-BS
BTX20L
B18L-A
BTZ20L
B16CL-B
B50-N18L-A3
BTX20L-BS
BTX15L
GYZ20L
GYZ20HL
YTX20HL
YIX20HL
YTX20HL-PW
YTX20HL-BS
YTX20HL-BS-PW
YIX20HL-BS
YTX15L
YTX20L
YTX15L-BS
YTX20L-BS
YB16HL-A-CX
YB16L-B
YB16CL-B
SYB16L-B
Y50-N18L-A3
ETX16
ETX16L
ETX20L

Product Size

Height: 5.12 inches (130 mm)

Width: 6.9 inches (175 mm)

Depth: 3.4 inches (87 mm)

Weight: 3.73 lbs (1.7 kg)

IP Rating

IP Rating: IP66

Limited Warranty

5- Limited Warranty

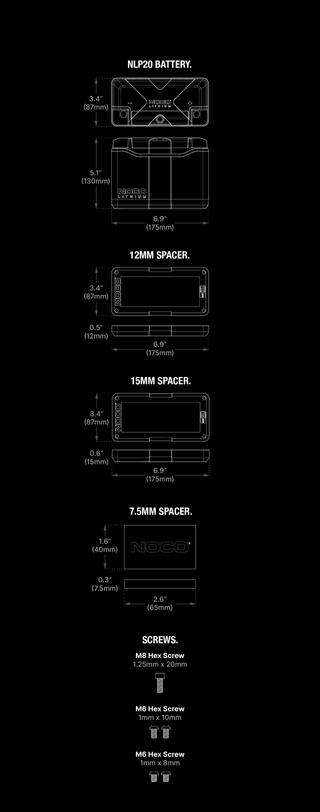

NLP20_F9T_XS

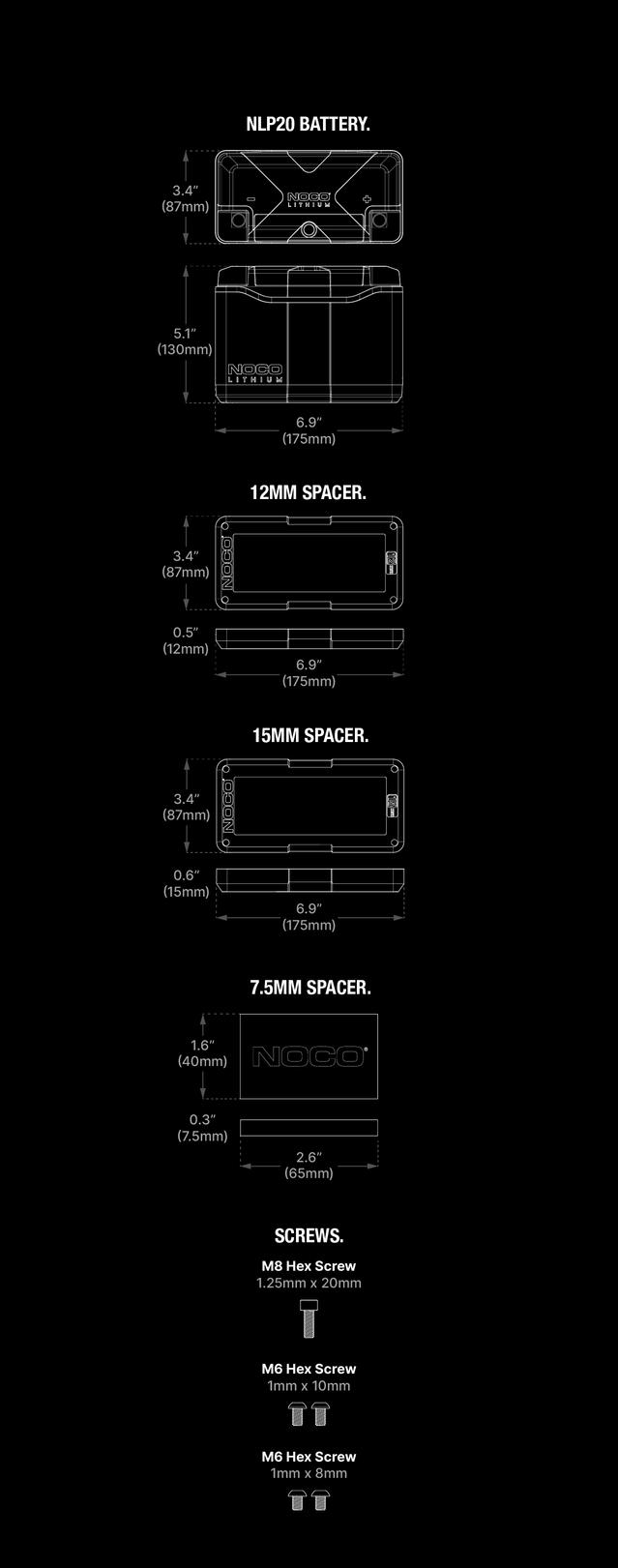

Dimensions.
