NLP14  12V 500A Lithium Powersport Battery

4.4/5
5 Reviews

20% Of Reviewers Recommend This Product

The most highly-designed and engineered lithium powersport battery series ever.

Use the Lithium mode on any GENIUS charger to fully recharge an NLP battery in minutes.

Equipped with an auto-enabled, advanced battery management system that provides maximum protection,performance, and bi-directional cell equalization for long-lasting stability. No BMS reset needed.

Designed with a custom rubber dampening base and foam inserts to extend the life of the battery and keep connections secure.

NLP Terminals can be mounted from the front, side, or top, and can be removed altogether depending on the application.

A removable mounting block allows the battery to fit more applications. The threaded insert enables direct-mounting for additional simplicity and security.
Modular mounting spacers can be stacked and attached to the NLP batteries to alter the BCI size enabling the battery to be safely and securely mounted.

Technical Specifications

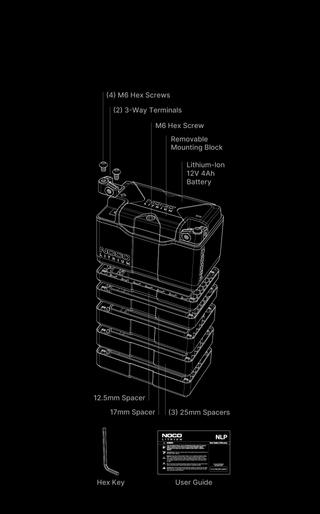

What's In The Box

  • NLP14 Lithium Powersport Battery
  • (2) 3-Way Terminals
  • (1) 0.5 Inch (12.5 mm) Spacer
  • (1) 0.67 Inch (17 mm) Spacer
  • (3) 0.98 Inch (25 mm) Spacers
  • Hex Key
  • User Guide

Battery Chemistry

Lithium Iron Phosphate (LiFePO4)

Battery Capacity

4 Amp-Hours / 51.2 Watt-Hours

Lead-Acid Equivalent

13 Amp-Hours

Starting Current

500 Amps (Peak)

BCI Size

14

Compatible Battery Sizes

BT12A-BS
BTZ14S
BTZ12S
BTX14
BT14B-4
BTX20CH-BS
BTX16-BS-1
B16A-AB
BTX12-BS
BTX14-BS
BTX16-BS
BTZ10S

GYZ16H
YTX14H
YTX20CH
YTZ10S
YTZ12S
YTZ14S
YTX14H-BS
YTX20CH-BS
YTX12
YTX14
YT12A-BS
YTX12-BS
KMX14-BS
YTX14-BS
YTX16-BS
YTX16-BS-1
HYB16A-AB

ETX12
ETX14
ETX14L

Product Size

Height: 3.76 Inches (96 mm)
Width: 5.87 Inches (149 mm)
Depth: 3.43 Inches (87 mm)
Weight: 2.58 lbs (1.17 kg)

IP Rating

IP66 Waterproof Rated

Limited Warranty

5-Year Limited Warranty
