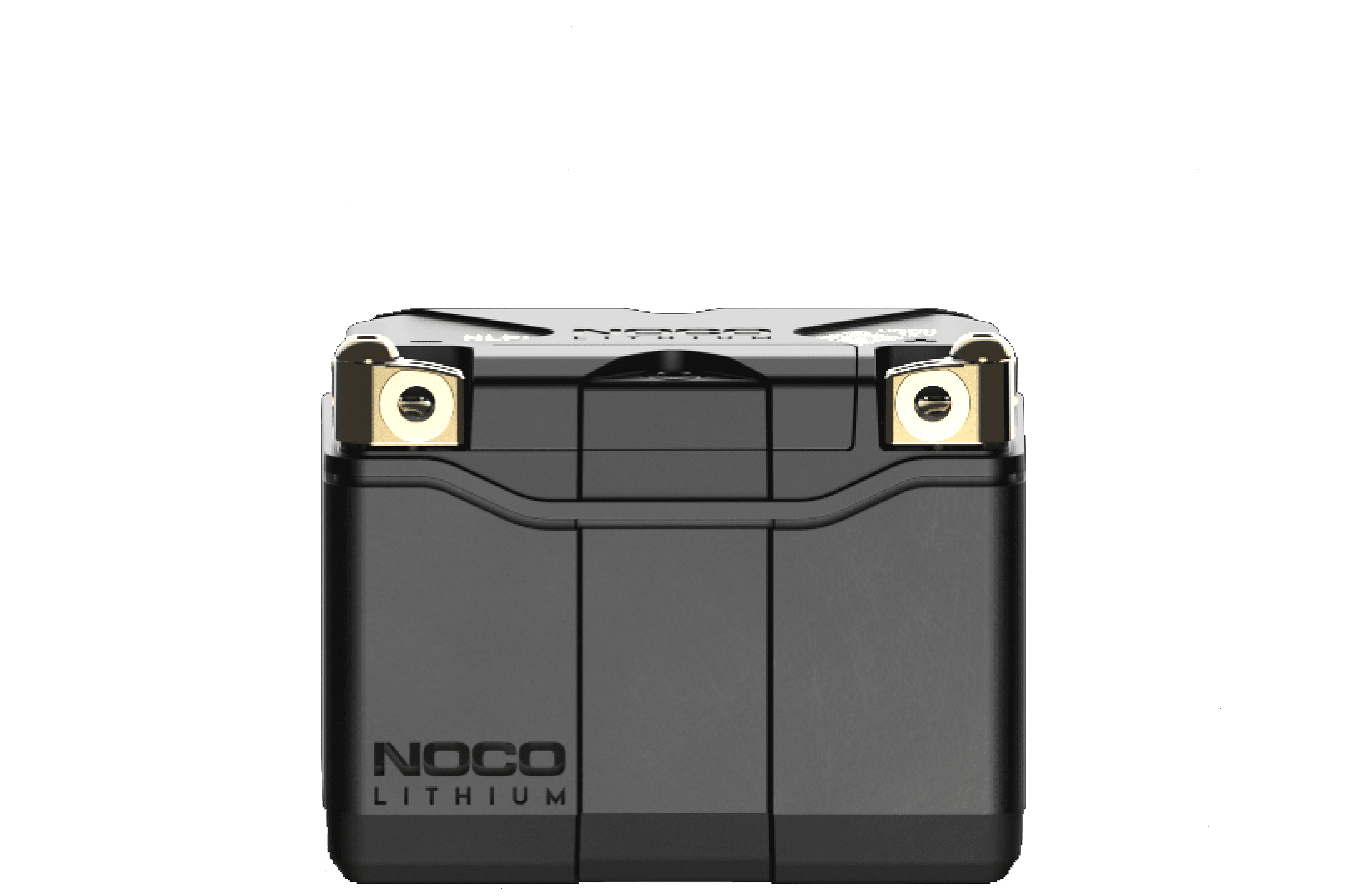

NLP5  12V 250A Lithium Powersport Battery

4/5
4 Reviews

75% Of Reviewers Recommend This Product

The most highly-designed and engineered lithium powersport battery series ever.

Use the Lithium mode on any GENIUS charger to fully recharge an NLP battery in minutes.

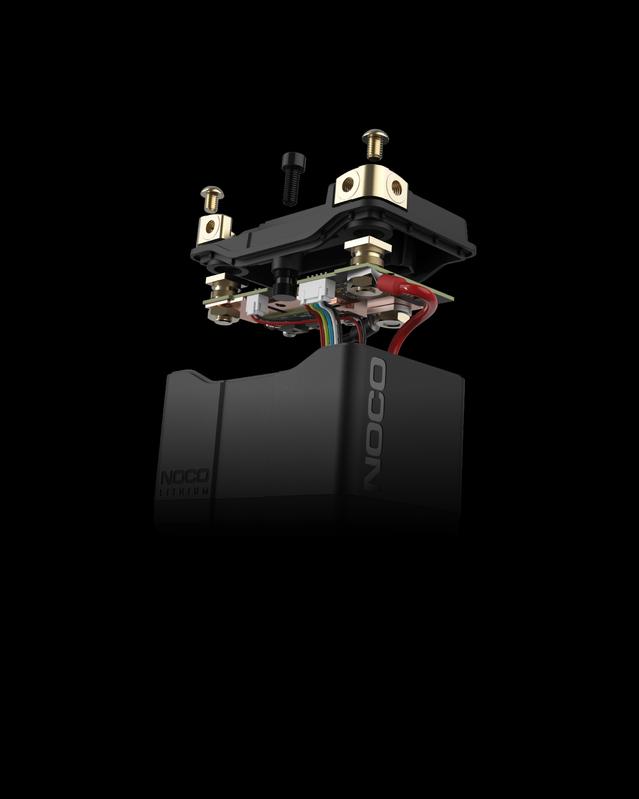

Equipped with an auto-enabled, advanced battery management system that provides maximum protection,performance, and bi-directional cell equalization for long-lasting stability. No BMS reset needed.

Designed with a custom rubber dampening base and foam inserts to extend the life of the battery and keep connections secure.

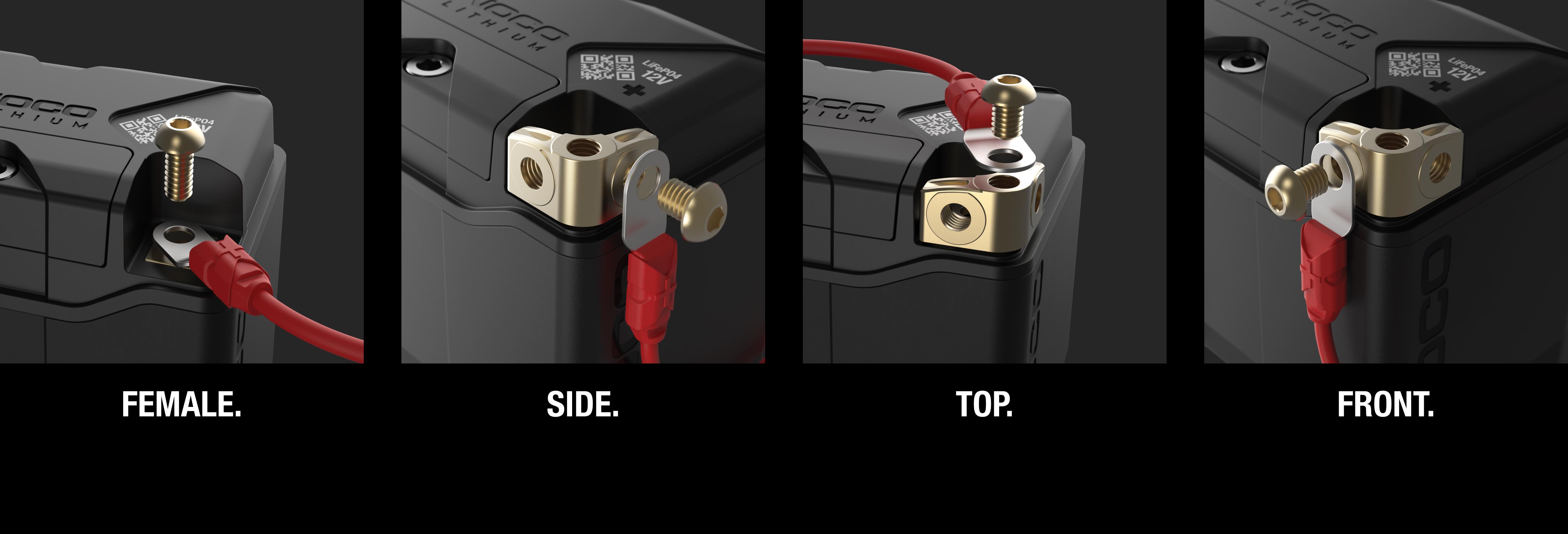

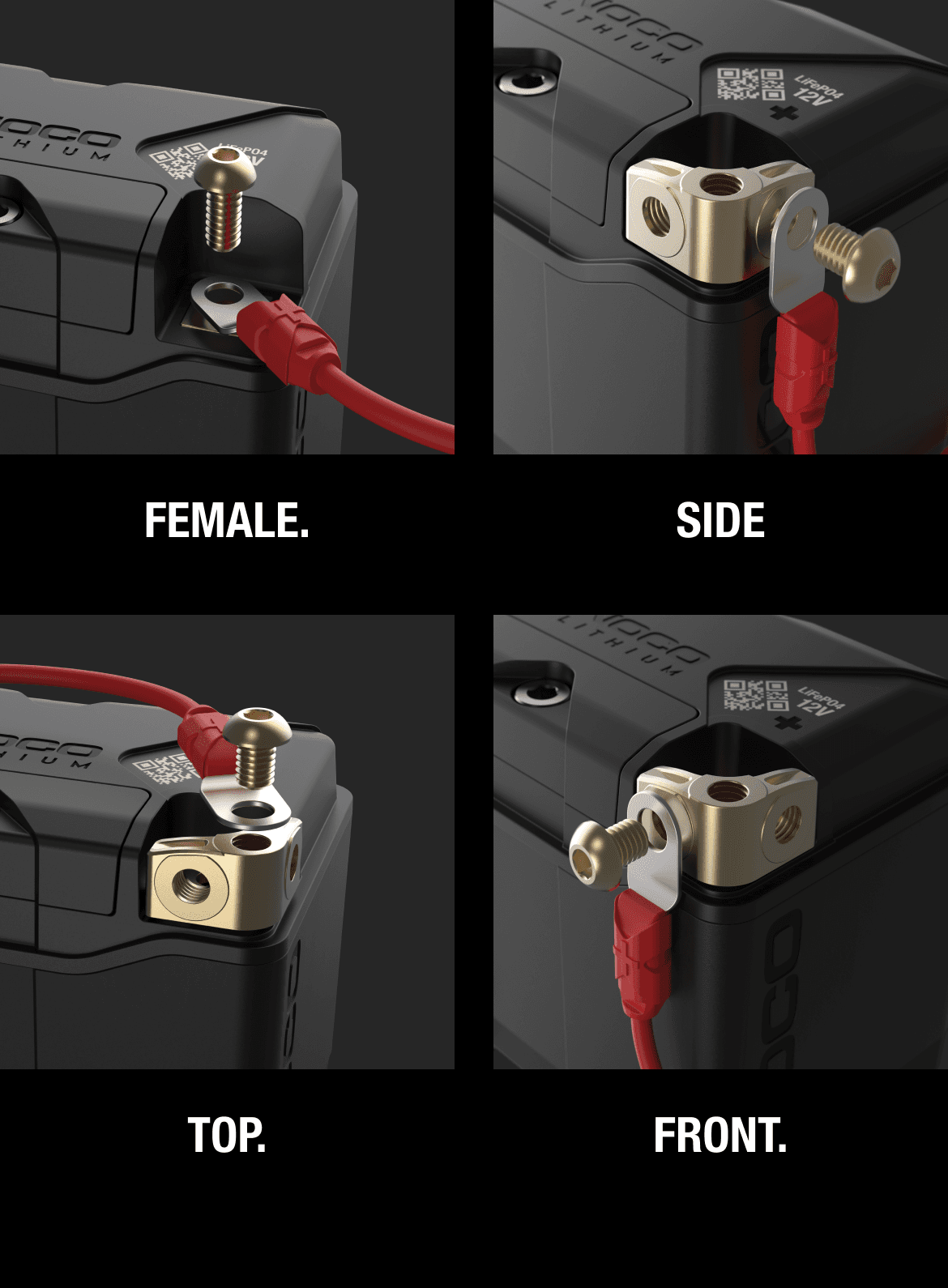

NLP Terminals can be mounted from the front, side, or top, and can be removed altogether depending on the application.

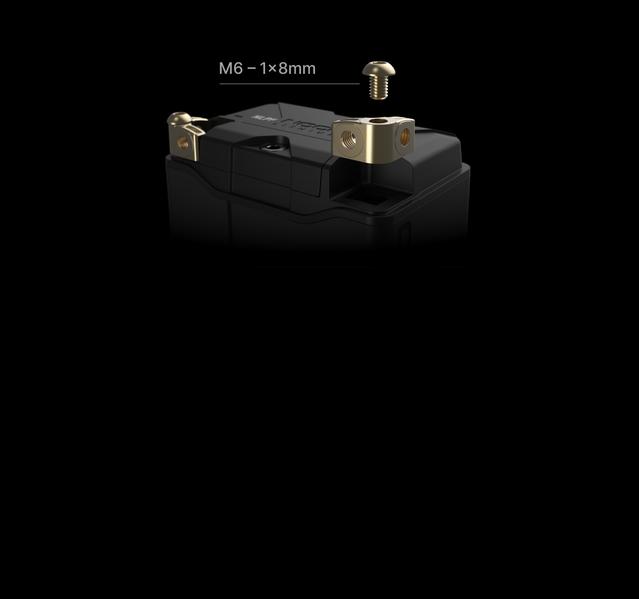

A removable mounting block allows the battery to fit more applications. The threaded insert enables direct-mounting for additional simplicity and security.

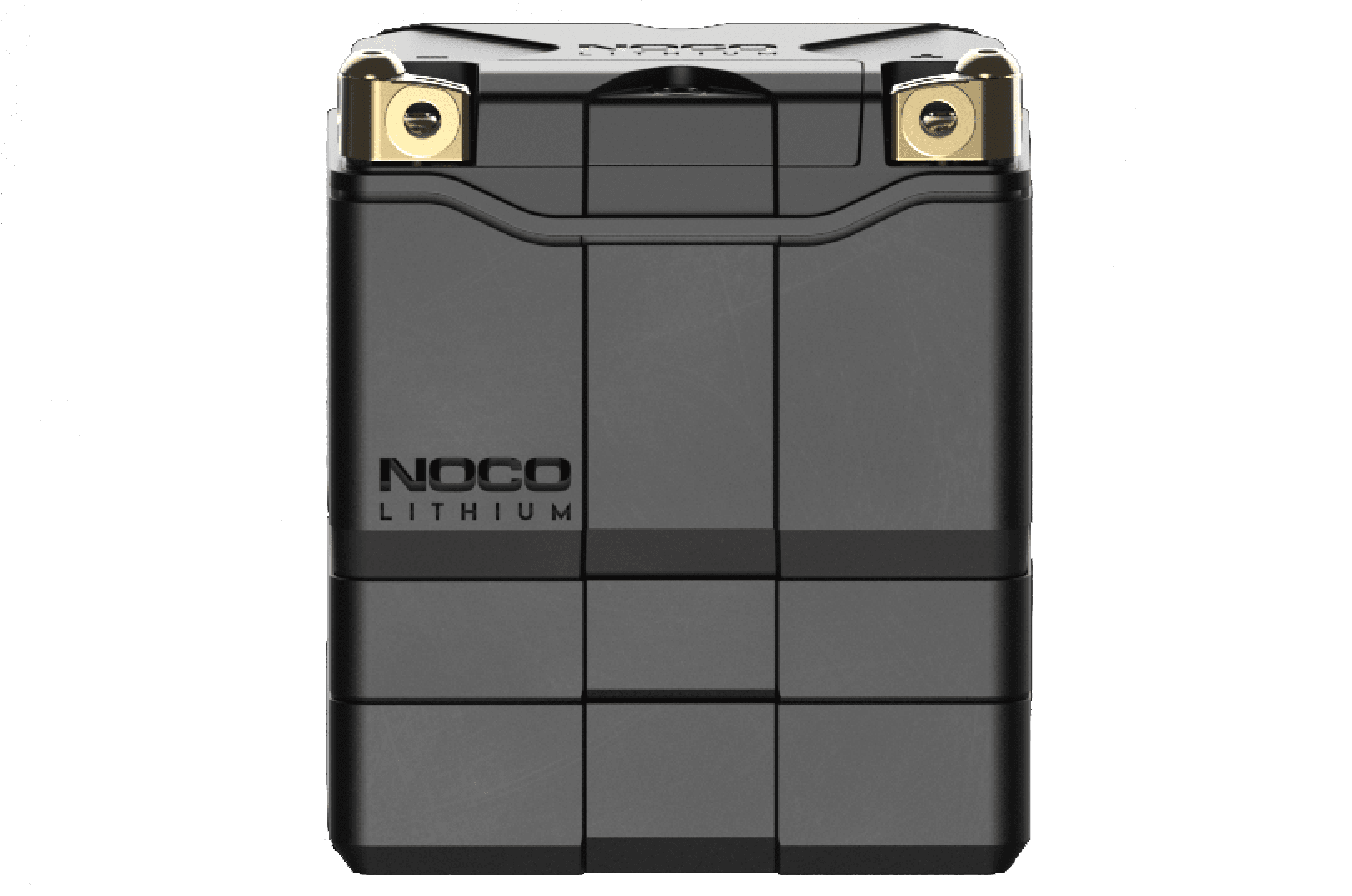

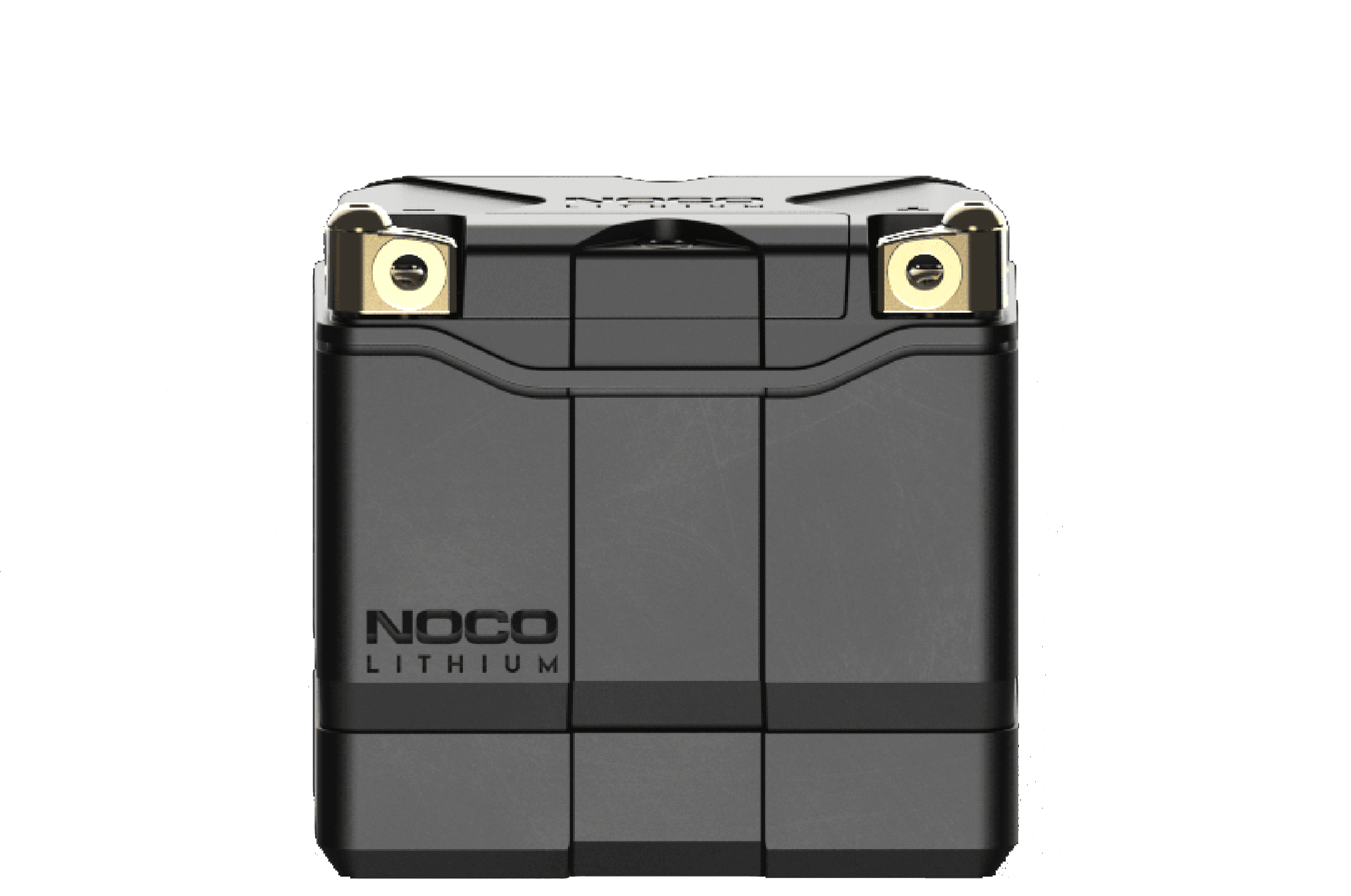

Modular mounting spacers can be stacked and attached to the NLP batteries to alter the BCI size enabling the battery to be safely and securely mounted.

Technical Specifications

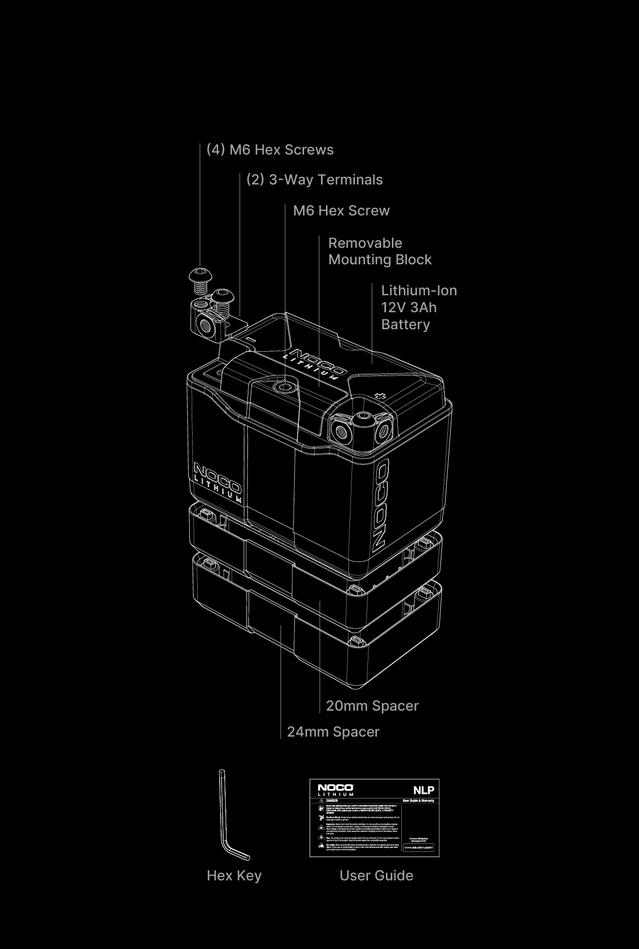

What's In The Box

  • NLP5 Lithium Powersport Battery
  • (2) 3-Way Terminals
  • (1) 0.79 Inch (20 mm) Spacer
  • (1) 0.94 Inch (24 mm) Spacer
  • Hex Key
  • Safety & Warranty Information

Battery Chemistry

Lithium Iron Phosphate (LiFePO4)

Battery Capacity

2 Amp-Hours / 25.6 Watt-Hours

Lead-Acid Equivalent

4.2 Amp-Hours

Starting Current

250 Amps (Peak)

BCI Size

5

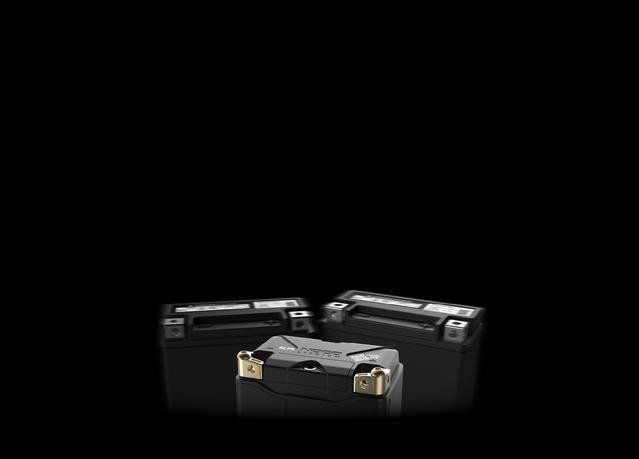

Compatible Battery Sizes

BTZ7S
BTZ8V
BTX4L-BS
BTX5L-BS
BTX7L-BS
BTZ5S

YTZ7S
YTZ8V
YTZ5S-BS
YTX4L-BS
YTX5L-BS
YTX7L-BS

Product Size

Height: 3.46 Inches (88 mm)
Width: 4.45 Inches (113 mm)
Depth: 2.76 Inches (70 mm)
Weight: 1.5 lbs (0.69 kg)

IP Rating

IP66 Waterproof Rated

Limited Warranty

5-Year Limited Warranty
