NLP5

Tech Specs

What's in the box

  • NLP5 Lithium Powersport Battery
  • (2) 3-Way Terminals
  • (1) 0.79 Inch (20 mm) Spacer
  • (1) 0.94 Inch (24 mm) Spacer
  • Hex Key
  • User Guide & Warranty Information

Operating Requirements

Operating Temperature: -4° to 140°F (-20° to 60°C)

Charging Temperature: 14º to 122ºF (-10º to 50ºC)

Storage Temperature: -4º to 140ºF (-20º to 60ºC)

Battery Chemistry

Lithium Iron Phosphate

Battery Capacity

2 Amp-Hours / 25.6 Watt-Hours

Lead-Acid Equivalent

4.2 Amp-Hours

Starting Current

250 Amps (Peak)

BCI Size

5

Compatible Battery Sizes

BTZ7S
BTZ8V
BTX5L-BS
BTX7L-BS
YTZ7S
YTZ8V
YTX5L-BS
YTX7L-BS

Product Size

Height: 3.35 inches (85 mm)

Width: 4.45 inches (113 mm)

Depth: 2.76 inches (70 mm)

Weight: 1.5 lbs (0.69 kg)

IP Rating

IP66

Limited Warranty

5-Year Limited Warranty

NLP5_F9T_XS

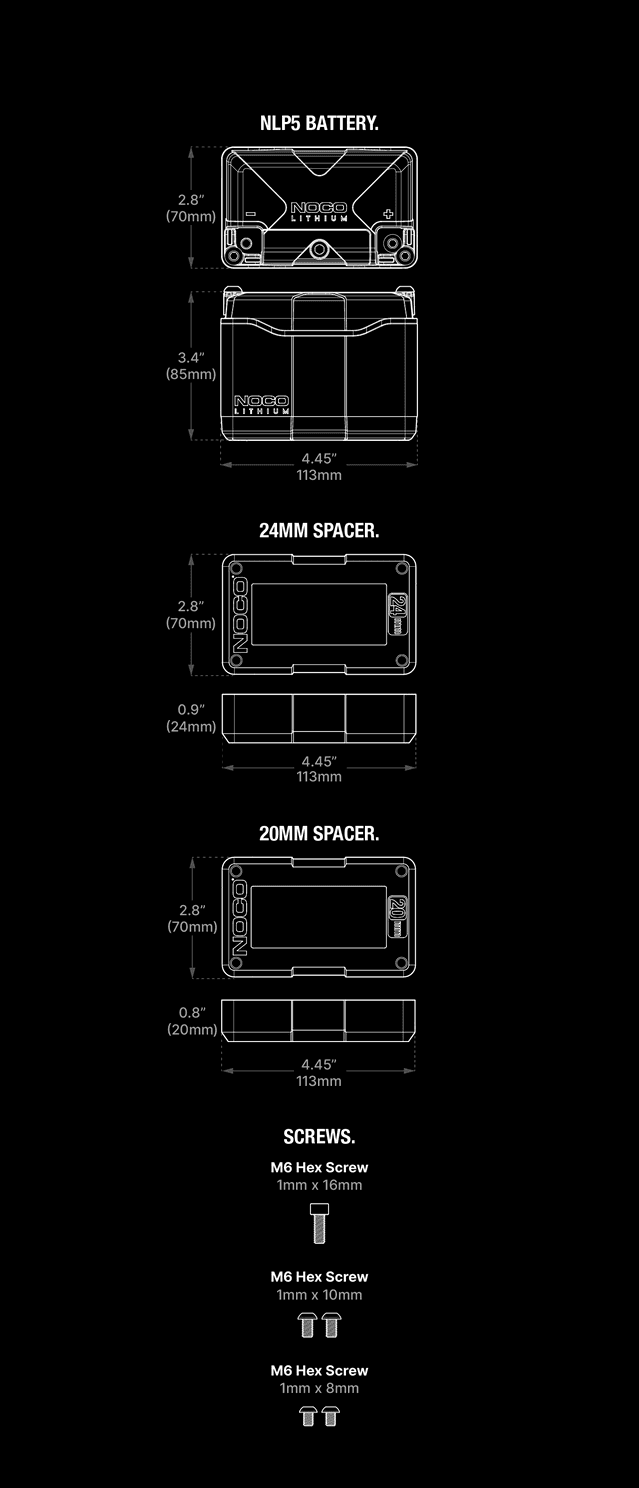

DIMENSIONS.
