NLP14

Tech Specs

What's in the box

  • NLP14 Lithium Powersport Battery
  • (2) 3-Way Terminals
  • (1) 0.5 Inch (12.5 mm) Spacer
  • (1) 0.67 Inch (17 mm) Spacer
  • (3) 0.98 Inch (25 mm) Spacers
  • Hex Key
  • User Guide

Battery Chemistry

Lithium Iron Phosphate

Battery Capacity

4 Amp-Hours / 51.2 Watt-Hours

Lead-Acid Equivalent

13 Amp-Hours

Starting Current

500 Amps (Peak)

BCI Size

14

Compatible Battery Sizes

BT12A-BS
BTZ14S
BTZ12S
BTX14
BT14B-4
BTX20CH-BS
BTX16-BS-1
B16A-AB
BTX12-BS
BTX14-BS
BTX16-BS
BTZ10SGYZ16H
YTX14H
YTX20CH
YTZ10S
YTZ12S
YTZ14S
YTX14H-BS
YTX20CH-BS
YTX12
YTX14
YT12A-BS
YTX12-BS
KMX14-BS
YTX14-BS
YTX16-BS
YTX16-BS-1
HYB16A-ABETX12
ETX14
ETX14L

Product Size

Height: 3.76 inches (96 mm)

Width: 5.87 inches (149 mm)

Depth: 3.43 inches (87 mm)

Weight: 2.58 lbs (1.17 kg)

IP Rating

IP66

Limited Warranty

5-Year Limited Warranty

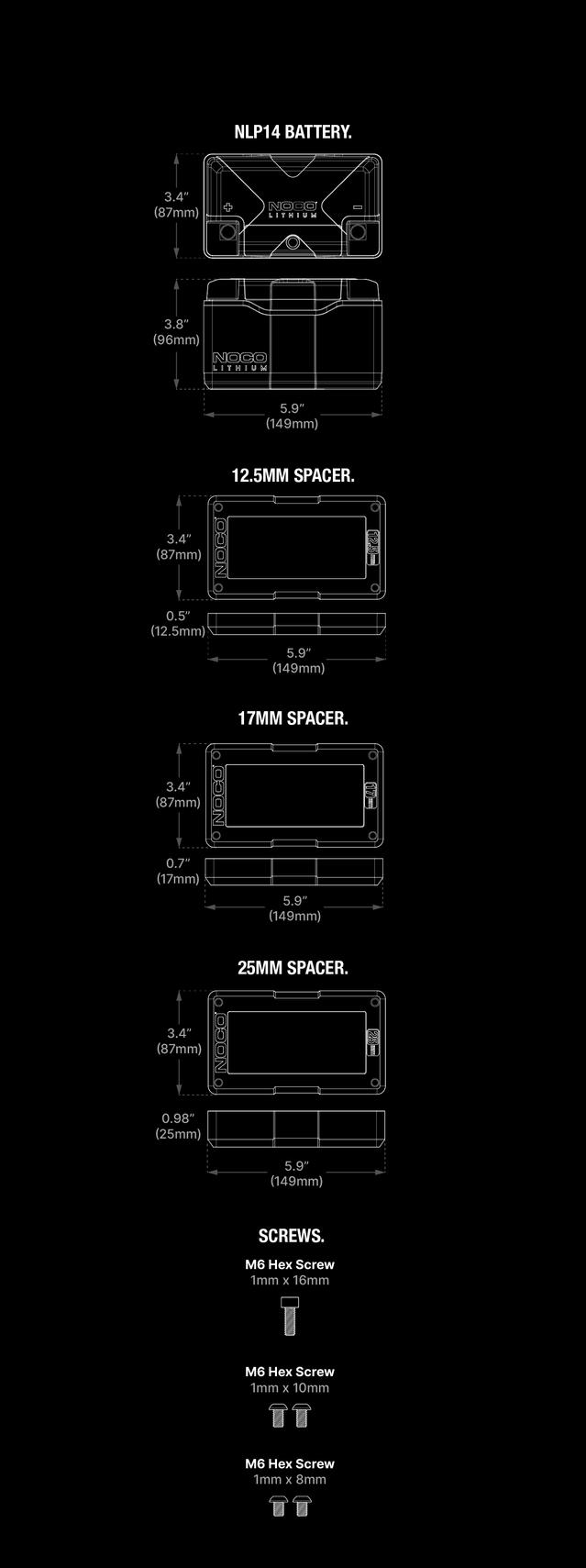

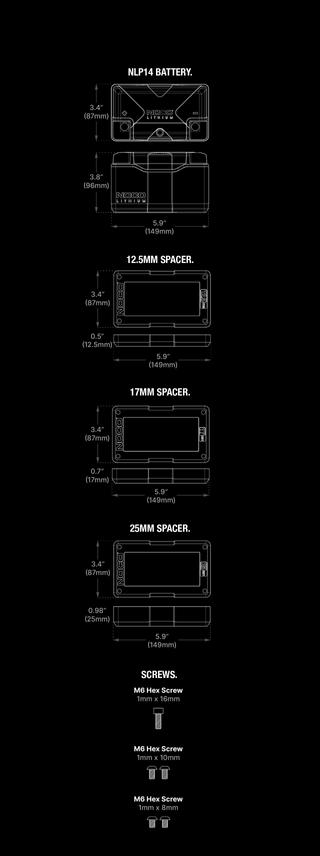

NLP14_Dimensions_F9T_XS

Dimensions.
