GB150 How To

GB150

HOW TO USE.

Videos

How to jump start using your NOCO Boost GB150

Learn how to jump start using your NOCO Boost GB150 UltraSafe Lithium Jump Starter in three simple steps.

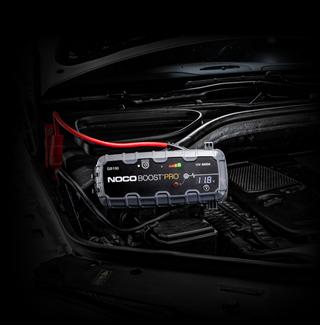

The GB150 is a portable lithium-ion battery jump starter booster pack that delivers 2,000-amps for jump starting a car, boat, trucks and more.
Learn how to use manual override on your NOCO Boost GB150 UltraSafe Lithium Jump Starter to begin jump starting a dead battery below 2-volts.
Learn how to charge a phone or other USB devices using NOCO Boost.

More Videos

GB150

HOW TO JUMP START.

Media

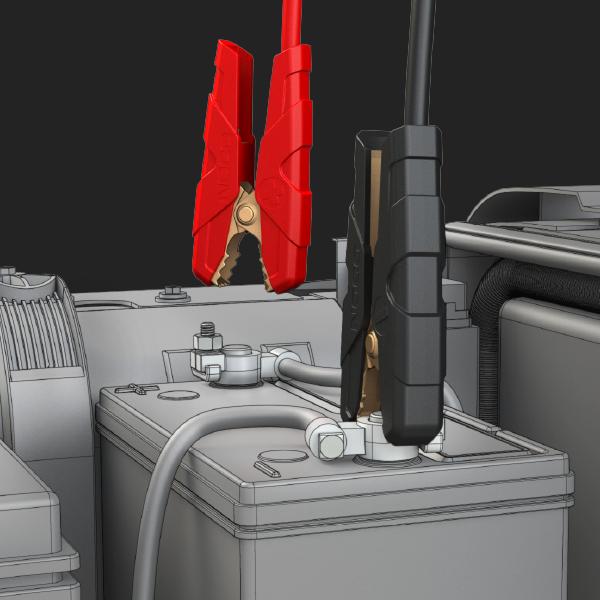

ATTACH CLAMPS.

Media

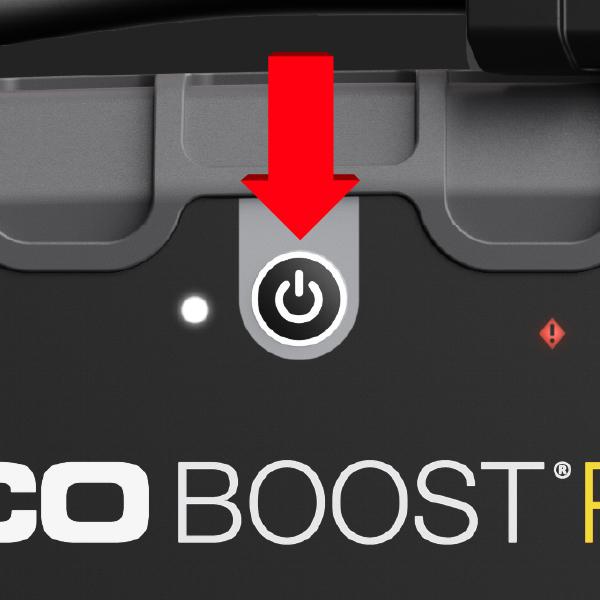

POWER ON.

Media

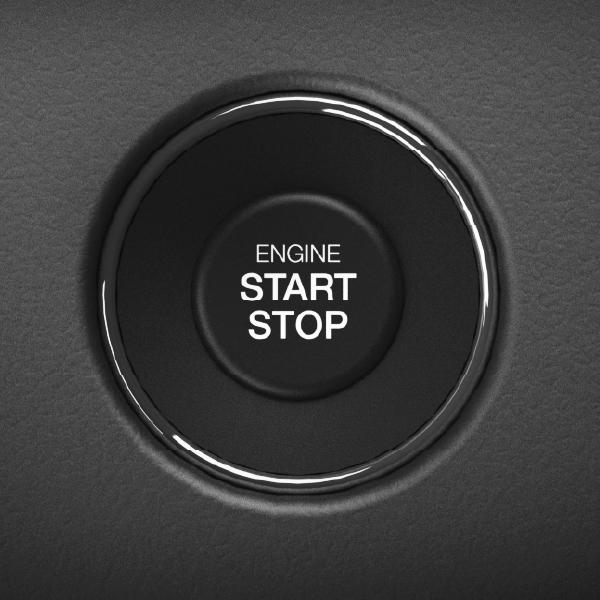

START VEHICLE.

Media

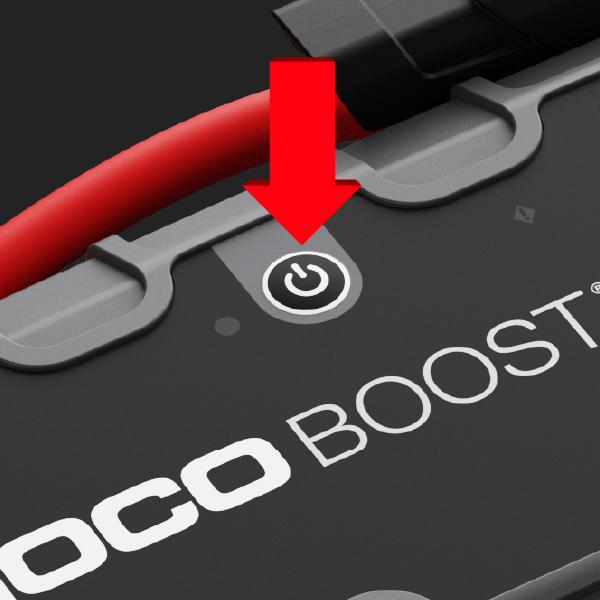

POWER OFF.

Or power off/on to reset.

Boost

FAQ





GB150

LEDs

Media
Media

Power LED

Illuminates White when unit is "on".

Media

Error LED

Illuminates Red if reverse polarity is detected. Blinks “on” and “off” when internal battery temperature is too high.

Media

Charge LEDs

Indicates the charge level of the internal battery.

Media

Boost LED

Illuminates White when Boost is active. LED flashes White when Manual Overide feature is active.

GB150

Buttons

Media
Media

Power Button

Push to turn unit "on" and "off".

Media

Manual Override

To enable, push and hold for three (3) seconds. WARNING: Disables safety protection and manually forces Boost "On". Only for use when a battery is too low to be detected.

Media

Light Mode

Toggles the ultra-bright LED light through 7 light modes: 100% > 50% > 10% > SOS > Blink > Strobe > Off

Media

Voltmeter

The built-in voltmeter reads the voltage of the vehicle’s battery for enhanced diagnostics and troubleshooting.

Boost

TROUBLESHOOTING.

ERROR

REASON / SOLUTIONS

Error LED: Solid Red

Error LED: Solid Red

Reverse polarity/Reverse the battery connections.

Error LED: Blinking Red w/Cables Connected Properly

The internal battery is too hot/ Allow the unit to cool. Bring the unit into cooler environment.

Boost Light Does Not Come On w/Cables Connected Properly

Connected battery is below 2-volts/ Remove all loads, and try again, or use Manual Override Mode.

GB150 Manual Override

GB150

MANUAL OVERRIDE

PUSH AND HOLD FOR 3 SECONDS.

WARNING: Disables safety protection and manually forces Boost “On”. Only for use when a battery voltage is too low to be detected.

Charge and Store.

GB150 Accessories

The GB150 is compatible with an array of NOCO accessories. Fast charge in your car with the GBC010 or at home with the XGC4. Store and protect your GB150 with the GBC015 EVA Case.

GET SUPPORT.

Didn’t find the answers you were looking for, or have other questions regarding your product? Contact NOCO customer support.

CHAT WITH SUPPORT
