NLXU1

Tech Specs

What's In The Box

  • NLXU1 12V 40Ah Lithium Dual-Purpose Battery
  • (2) Type X Terminal
  • (2) 3/8"-24 X 9/16” Terminal Bolts
  • (2) 1/4"-20 X 7/16” Terminal Bolts
  • (2) Terminal Covers
  • (2) Hex Keys
  • Safety & Warranty Information

Operating Requirements

Operating Temperature: -4° to 122°F (-20º to 50ºC)

Charging Temperature: 14º to 122ºF (-10º to 50ºC)

Storage Temperature: -4° to 122° F (-20º to 50ºC)

Recommended Storage Temperature: 77°F (25°C)

Battery Chemistry

Lithium Iron Phosphate

Battery Capacity

40 Amp-Hours / 512 Watt-Hours

Starting Current

600 Amps (Peak)

Continuous Current

75 Amps

BCI Size

Group U1

Product Size

Height: 6.69 inches (170 mm)

Width: 7.76 inches (197 mm)

Depth: 5.19 inches (132 mm)

Weight: 12 lbs (5.44 kg)

IP Rating

IP66

Limited Warranty

5-Year Limited Warranty

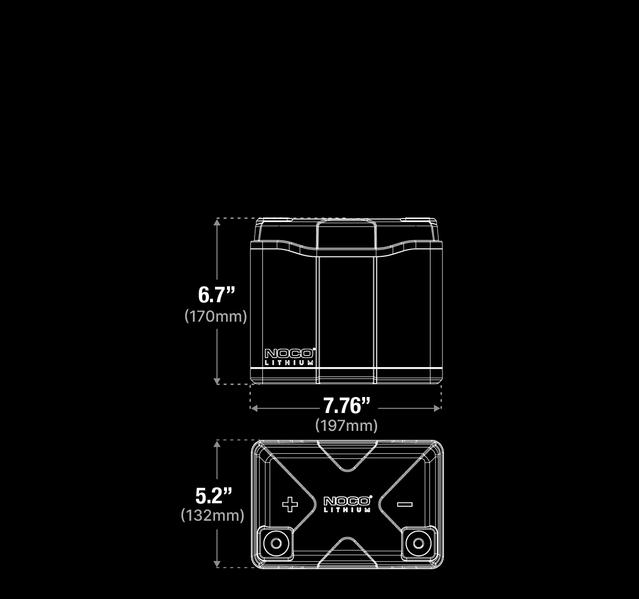

dimensions Of NLXu1 noco lithium battery_F9B_XS_1_2x 100

DIMENSIONS
