What's In The Box

• GENPRO10X3 On-Board Battery Charger
• (2) Self-Tapping Screws
• User Guide & Warranty Information

Operating Requirements

Line Voltage: 120V to 240V AC

Frequency: 50Hz to 60Hz

Operating Temperature: -4° to 104°F(-20° to 40°C)

Storage Temperature: -22° to 140°F(-30° to 60°C)

Relative Humidity: 0 to 95% Non-Condensing

Charging

Current: 10 Amps DC x 3 Banks

Voltages:

Chemistry: Lead-Acid and Lithium

Types:

• AGM
• CA
• EFB
• Gel
• Lithium
• MF
• Wet

Capacity Range: Up to 230 Amp-Hours

Maintenance: All Battery Sizes

Power

Consumption: 150 Watts x 3 Banks (450 Watts Max)

Safety

Short-Circuit: Yes

Open-Circuit: Yes

Overheating: Yes

Overcharge: Yes

Spark-Proof: Yes

Reverse Polarity: Yes

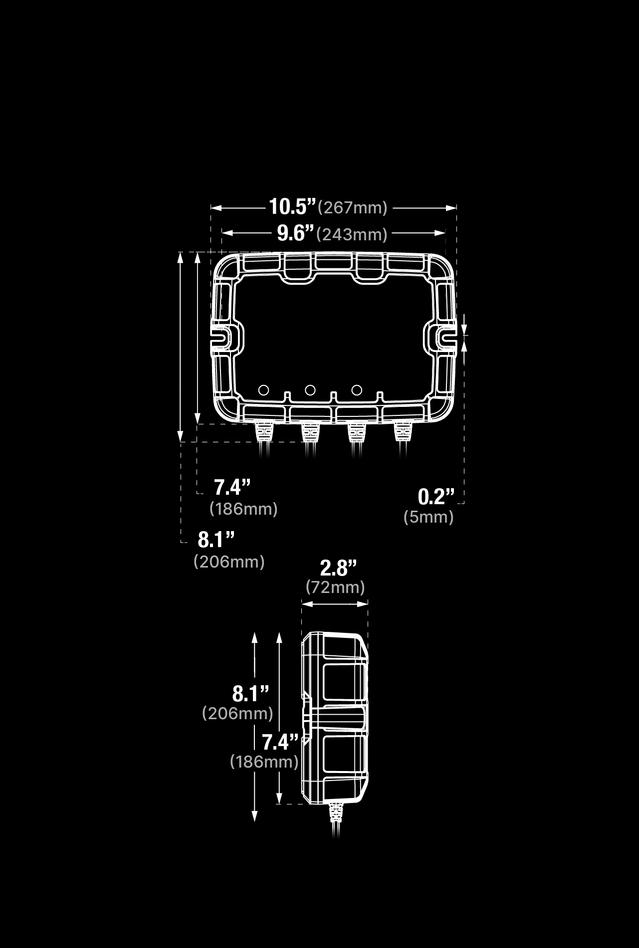

Product Size

Height: 8.11in (206mm)

Width: 10.51in (267mm)

Depth: 2.83in (72mm)

Weight: 13.43lb (6.2kg)

Cable Management

DC Cable + Eyelet Length: 72in (182cm)

DC Cable Size: 14 AWG AWG

DC Fuse Size: 15 Amp Mini Blade Fuse AMP MINI ® Blade Fuse

AC Cable Length: 72in (182cm)

AC Cable Size: 18 AWG

Oil, gas, grease, water, chemical, UV, abrasion resistant

IP Rating

IP68

Limited Warranty

3-Year Limited Warranty
