GENPRO10X3  12V 3-Bank, 30-Amp On-Board Battery Charger

6 Reviews

33% Of Reviewers Recommend This Product

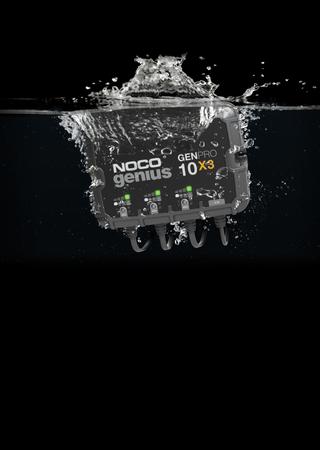

Rated To IP68. Fully-Sealed Charging.

The GEN series is 100% waterproof and designed to withstand hours underwater. The GENPRO10X3 is an on-board charger built for extreme conditions.

Our Most Powerful, Efficient, and Compact Charger Yet.

Compact, yet powerful battery charger. A mix of electrical engineering and industrial design pack a powerful battery charger into a tiny footprint. The GENPRO10X3 uses high-frequency switch-mode technology to efficiently convert A/C power into safe D/C power for battery charging. And its onboard microcomputer precisely controls the charging to minimize power loss to create an incredibly compact form factor.

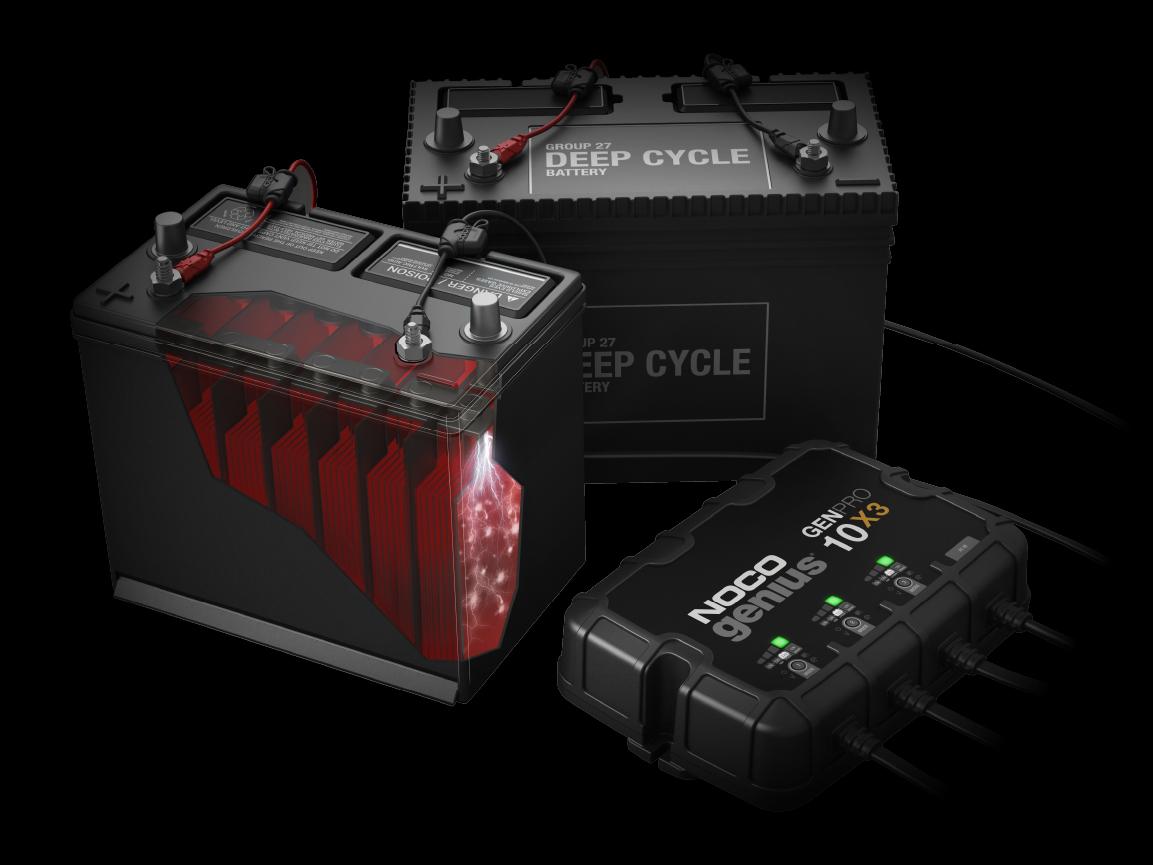

Multi-Chemistry. Multi-Battery Type.

A multi-functional design that allows you to charge in more ways. Effortlessly charge 12-volt lead-acid and lithium-ion batteries of multiple chemistries (Flooded, gel, maintenance-free and AGM batteries) and types (Starter, deep-cycle, marine, and more).

Improved Start Voltage Sensor. All-New Force Mode.

The all-new start-voltage sensor allows the Genius GEN charger to detect and charge dead batteries as low as 1-volt. For extremely dead batteries lower than 1-volt, manually turn on force mode to detect and charge batteries all the way down to zero volts.

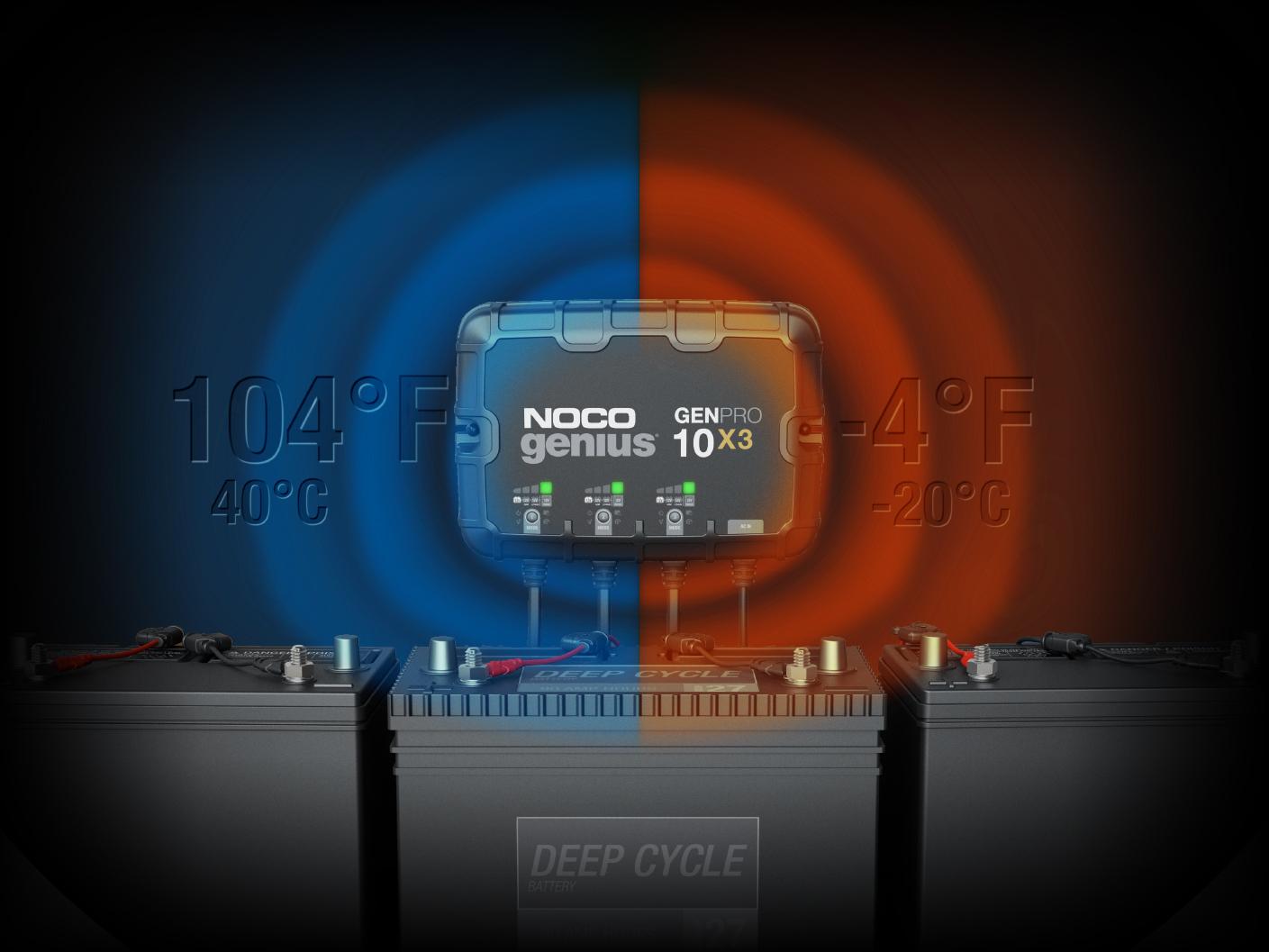

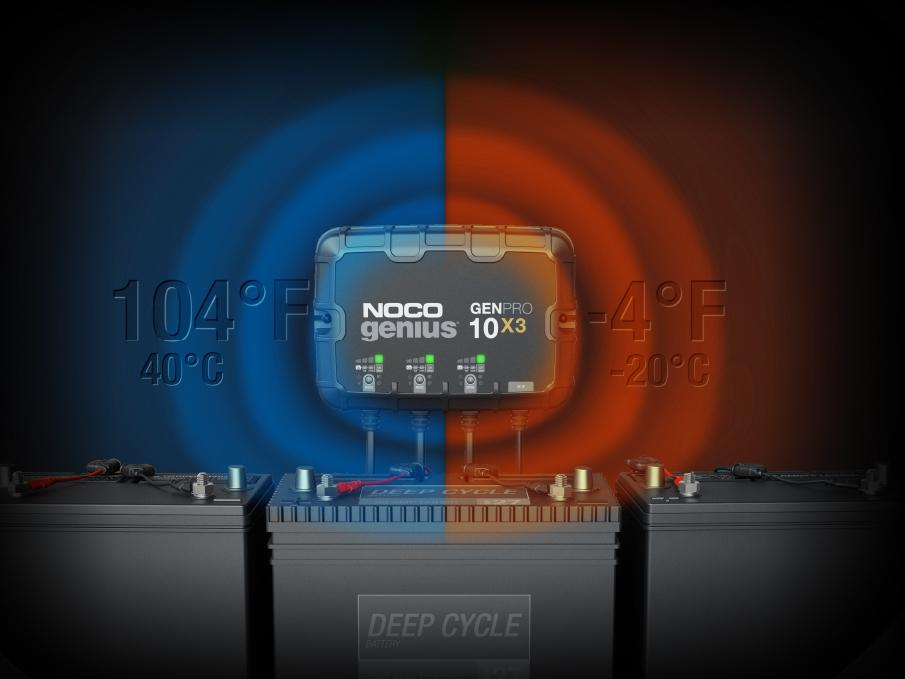

More Precise Charging in Any Climate.

The new integrated thermal sensor automatically monitors and adjusts the charging cycle based on fluctuations of ambient temperature, limiting the chance of under-charging or over-charging, providing a more accurate and fully charged battery. Avoids under-charging in cold weather down to -4F and avoids over-charging in hot weather up to 104F.

The GENPRO10X3 automatically detects sulfation/acid stratification. If any is found, the GENPRO10X3 will automatically repair and reverse the damage done to the battery, extending the usable life and increasing the performance.

Year-Round Charging. Zero Overcharge. Auto Memory.

Finally a charger from start to finish that’s completely automatic. No special modes, no technical knowledge required. Genius will safely charge any battery. Detect damaged batteries and intuitively repair them. And actively monitor for long-term battery maintenance and extend battery life. This system allows for continuous operation without user intervention, and zero risk of overcharging your battery.

Technical Specifications

What's In the Box

  • GENPRO10X3 On-Board Battery Charger
  • (2) Self-Tapping Screws
  • User Guide & Warranty Information

Operating Requirements

Line Voltage: 120V to 240V AC
Frequency: 50Hz to 60Hz
Operating Temperature: -4° to 104° F (-20° to 50° C)
Storage Temperature: -22° to 140° F (-30° to 60° C)
Relative Humidity: 0 to 95% Non-Condensing


Current: 10 Amps DC x 3 Banks
Voltages: 12V
Chemistry: Lead-Acid and Lithium
Types: Wet, Gel, MF, CA, EFB, AGM, Lithium
Battery Capacity Range: Up to 230 Amp-Hours
Maintenance: All Battery Sizes


Consumption: 150 Watts (Max) X 3 Banks


Short-Circuit: Yes
Open-Circuit: Yes
Overheating: Yes
Overcharge: Yes
Spark-Proof: Yes
Reverse Polarity: Yes


Height: 8.11 Inches (206 mm)
Width: 10.51 Inches (267 mm)
Depth: 2.83 Inches (73 mm)
Weight: 13.43 lbs (6.2 kg)

Cord Management

DC Cable + Eyelet Length: 72 Inches (182cm)
DC Cable Size: 14 AWG
DC Fuse Size: 15 AMP MINI ® Blade Fuse
AC Cable Length: 72 Inches (182cm)
AC Cable Size: 18 AWG
Oil, gas, grease, water, chemical, UV, abrasion resistant

IP Rating


Limited Warranty

3-Year Limited Warranty
