AL5

How To Use.

VIDEOS

How to inflate a tire using your NOCO AL5

Learn how to inflate your tires using the NOCO AL5 Lithium Air Compressor in a few simple steps.
Learn how to use the advanced features on your NOCO AL5 Lithium Air Compressor.
Learn how to use accessories with your NOCO AL5 Lithium Air Compressor.
Learn how to recharge your NOCO AL5 Lithium Air Compressor.
Learn how to use the LED Flashlight modes on your NOCO AL5 Lithium Air Compressor.
Learn how to charge USB devices with your NOCO AL5 Lithium Air Compressor.

More Videos

AL5

How To Inflate.

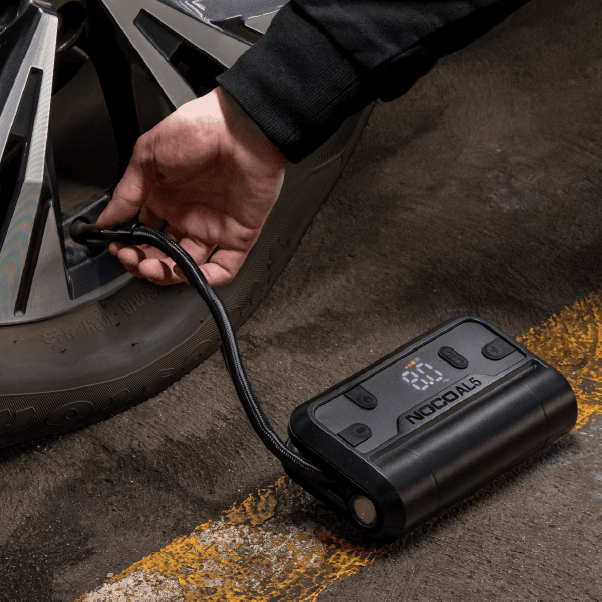

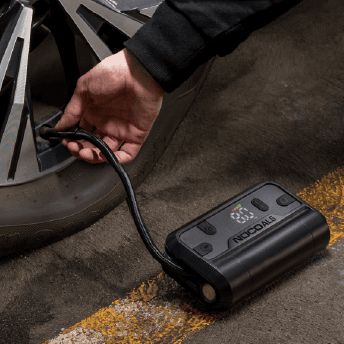

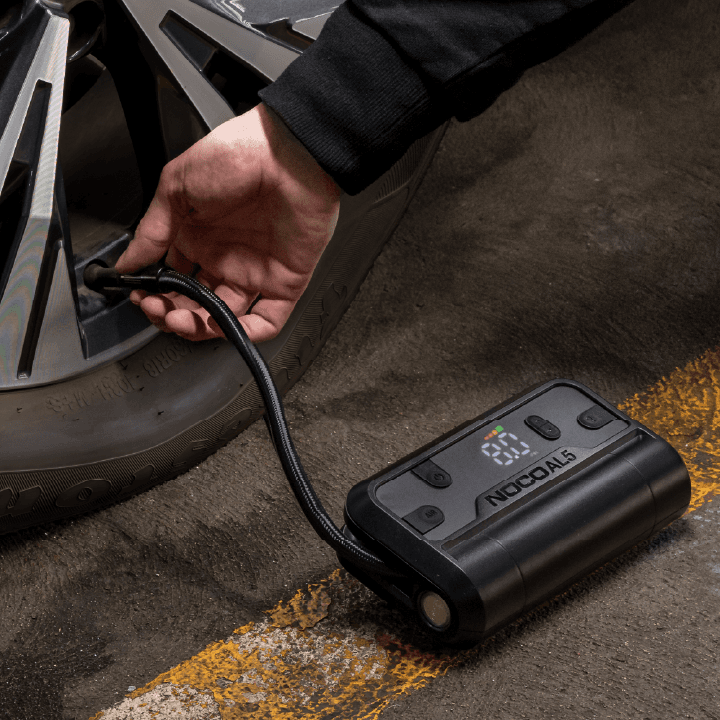

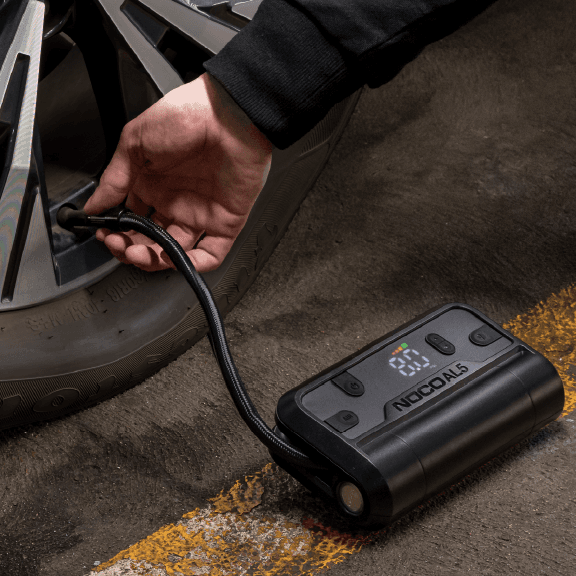

CONNECT THE AIR HOSE.

Connect the air hose on the AL5 to the tire before starting inflation. The air hose will screw onto the tire's air valve. No tools are necessary and should be hand tightened.

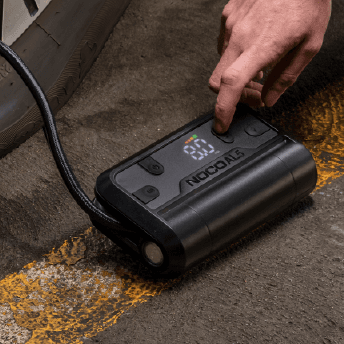

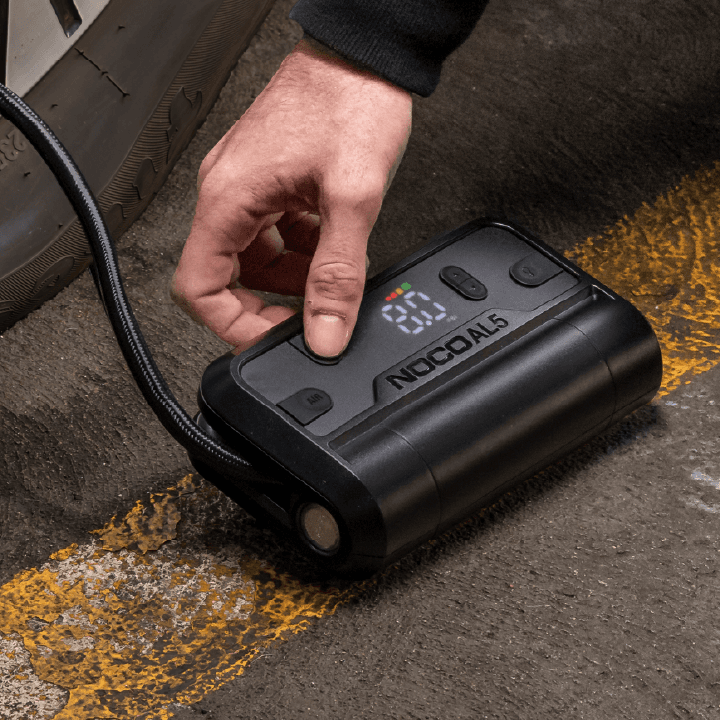

INITIALIZATION.

Turn the Product "ON" by pressing the Power Button. If more than 3 PSI is detected, then the detected pressure will be displayed with the “SET” LED being "OFF".

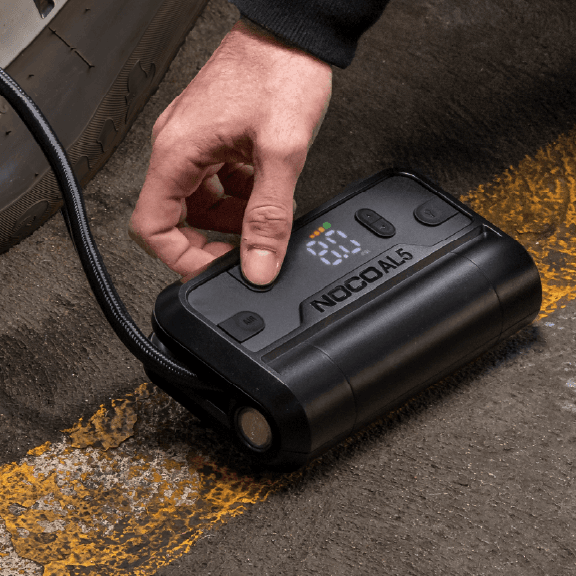

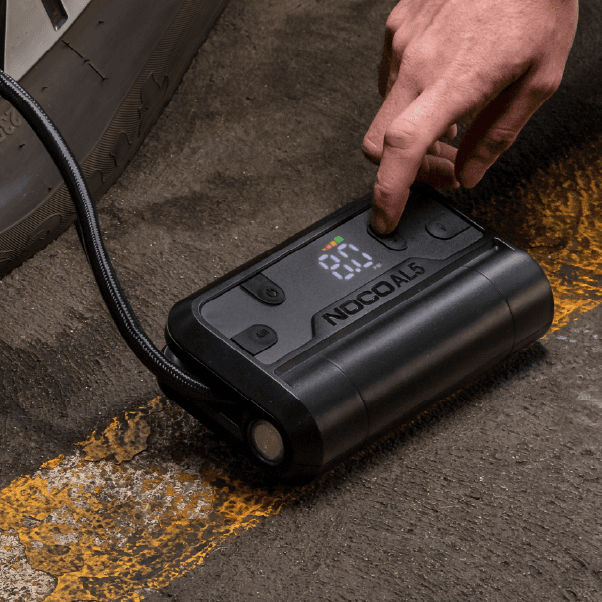

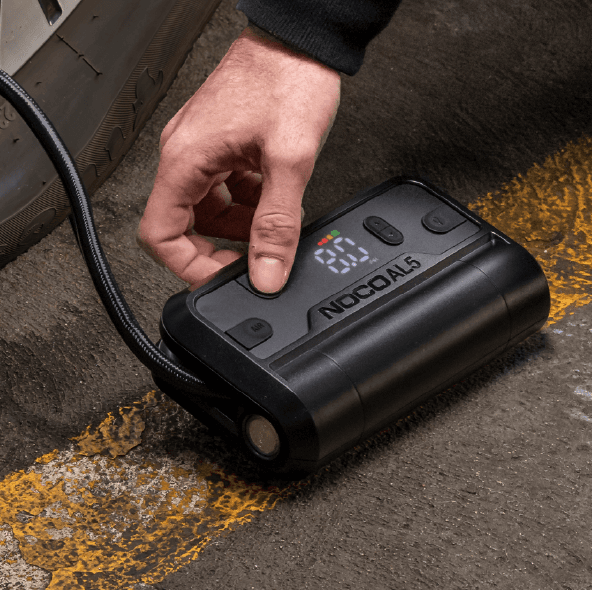

Set Pressure.

Change the Set Pressure to desired tire pressure level by pressing the ▼ or ▲ Buttons. Hold both ▼ and ▲ Buttons together at anytime to change the unit of pressure displayed (BAR, KPA, PSI).

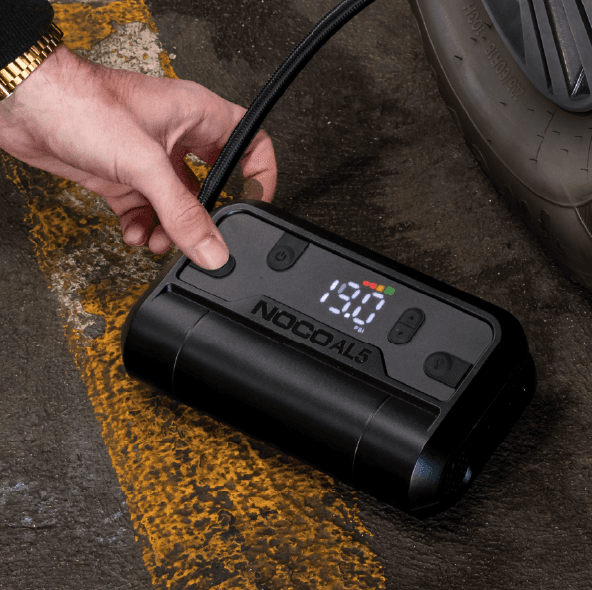

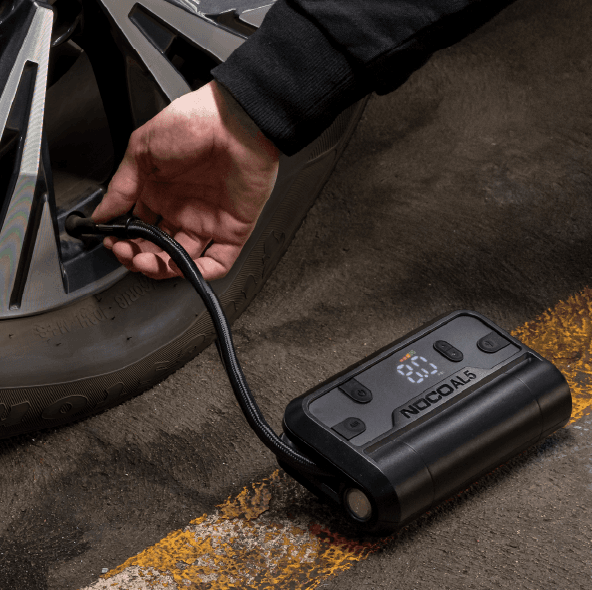

POWER ON.

Press the Air Button to begin tire inflation. Inflation will continue until the Set Pressure has been reached.

Air Lithium

FAQ

AL5

Intuitive Display.

Actual Pressure

When the “POWER” button is pressed, the compressor will begin inflating, the “SET” LED will turn off and the actual pressure will be displayed.

Set Pressure

When the display is in pressure set mode the “SET” LED will illuminate. Use the arrow buttons to set the desired pressure.

Change Units

To change units of pressure, hold both arrow buttons simultaneously for 3 seconds, use either arrow button to cycle through units.

Auto-Shutoff

Auto-shutoff works when pressure is above 15 PSI. Simply set the pressure and start inflating. AIR will shut off when the desired pressure is reached.

Manual Air Mode

When pressure is below 15 PSI, use manual mode. Set pressure to 0.0 and press the "POWER" button. AIR will run until the "POWER" button is pressed again.

Charge LEDs

Indicates the charge level of the internal battery.

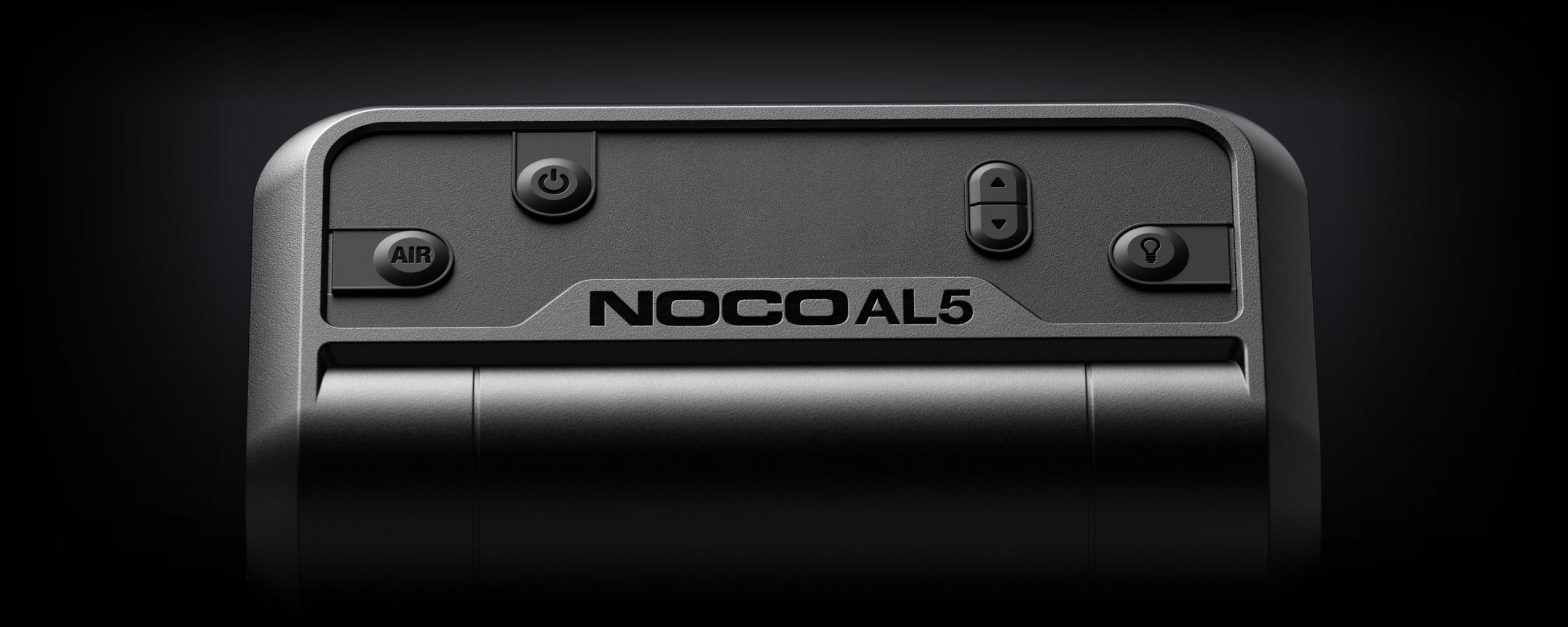

AL5

Buttons

Power Button

Push to start or stop inflating.

Arrow Buttons

Hold both Arrow Buttons to begin changing the pressure units. When LED Display is on, use the Arrow Buttons to change the set pressure.

Air Button

Push to initiate Air Mode to start inflating.

Light Mode Button

Toggles the ultra-bright LED light through 6 light modes: 100% > 50% > 10% > SOS > Blink > Off.

Troubleshooting

ERROR

RECOVERY PROCESS

Product does not turn "ON"

Product does not turn "ON"

Charge Product.

Over-Temperature

Turn the product "OFF" and place it in a well ventilated area, wait for product to cool before powering "ON" again.

Under-Temperature

Turn the product "OFF" and place it in an area within the recommended operating temperature, wait for product to warm up before powering "ON" again.

AL5_Manual_Air_Mode_6 AL5 Manual_Air_Mode F18_XS

AL5

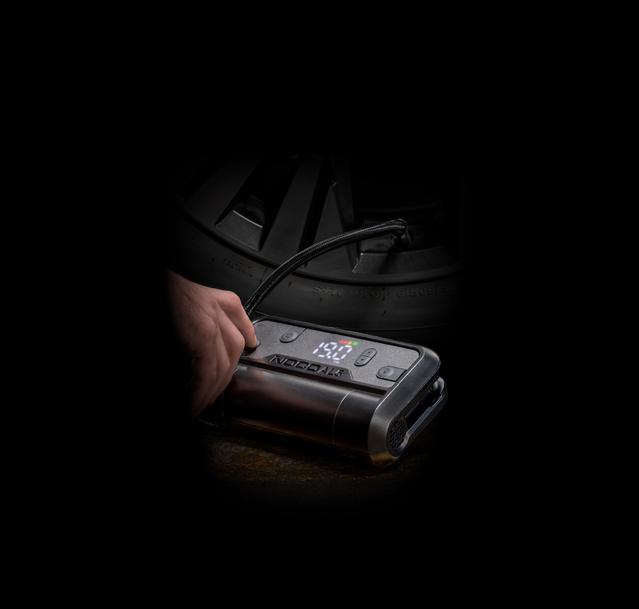

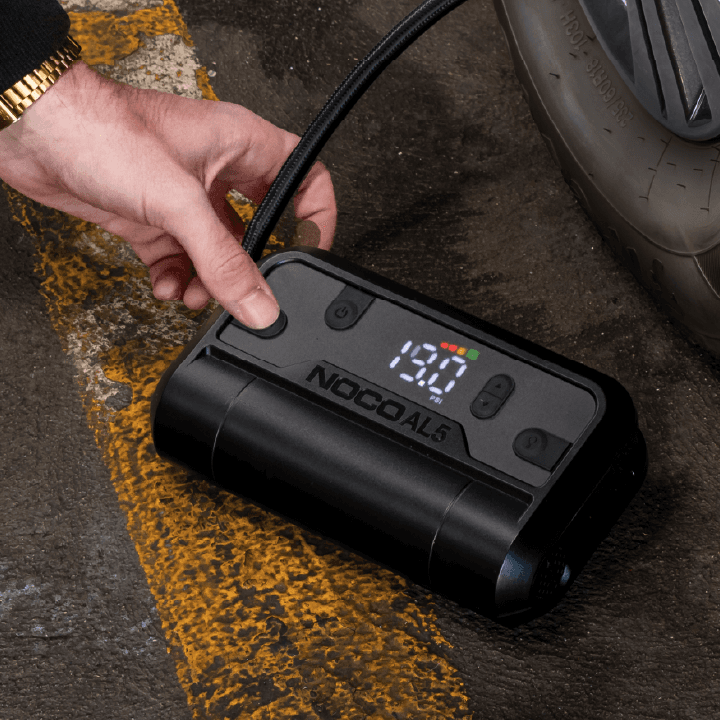

Manual Air Mode.

Set pressure to 0.0, then press the Air Button

To enter Manual Air Mode, set the pressure to 0.0. Press the Air Button to turn "ON" the compressor and the compressor will run until the Air Button is pressed again. During Manual Air Mode, the display will cycle LEDs. When Manual Air Mode is shut "OFF", the display will show the current pressure.

AL5

1 Year warranty.

All NOCO Air Lithium units come with a limited 1 Year warranty. Register your product after purchasing to qualify for the applicable warranty.

GET SUPPORT.

Didn’t find the answers you were looking for, or have other questions regarding your product? Contact NOCO customer support.
