What's In The Box

• AIR15 Portable Air Compressor w/ 3ft Braided Hose & 10ft Power Cord + 12V Cigarette Lighter Plug
• User Guide & Warranty Information
• Microfiber Storage Bag
• Presta Valve Adapter
• Needle Adapter
• Inflatable Toy Adapter

Operating Requirements

Operating Temperature: -4° to 122°F(-20° to 50°C)

Storage Temperature: -4° to 122° F (-20°C to +50°C)

Relative Humidity: 0 to 95% Non-Condensing

Vehicle Requirement: 12V Port to include a minimum 15A Fuse

Power

Voltage: 12 Volts

Max Current Draw: 15 Amps

Working Current: 14 Amps

Motor Rating: 200 Watts

Motor Efficiency: 80%

Cooling: Natural Convection

Air Compressor

Max Pressure: 80 psi / bar / 551.58 kPa

Max Tire Size: 33 Inches

Max Airflow: 44 SLPM

Duty Cycle: 15 min @ 30PSI on time / 45 min off time

Manual Mode Duty Cycle: 5 min on time / 30 min off time

Fill Time 0 - 40 PSI: 2.9 min +/- 10% with 205-65R16 95H Tire

Fill Time 35 - 40 PSI: 29 sec +/- 10% with 205-65R16 95H Tire

Pressure Gauge: Intuitive Interface + Digital Gauge

Features: Dwell, Auto-Memory, Auto-Shutoff, Manual Mode

Cord Management

DC Cable Length: 10ft (3m)

Plug Type: GC019 Hardwired Cigarette Lighter Plug

DC Cable Size: 16

DC Fuse Size: 20

Air Hose Length: 3ft (0.91m)

Air Hose Material: Black EDPM with Polyester Braiding

Oil, gas, grease, water, chemical, UV, abrasion resistant

Safety

Over-Current: Yes

Over-Temperature: Yes

LED Flashlight

60 Lumens

Number of Modes: 6X (100%, 50%, 10%, SOS, Blink, Off)

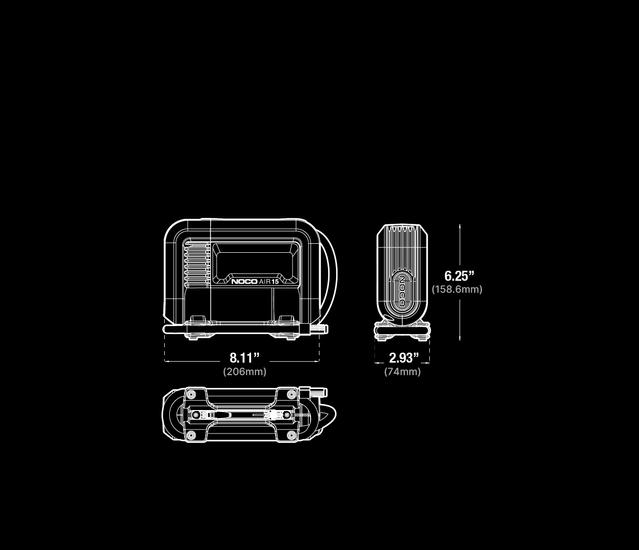

Product Size

Height: 6.25in (159mm)

Width: 8.11in (206mm)

Depth: 2.93in (74mm)

Weight: 5.72lb (2.59kg)

Protection

IP Rating: IP55 (Electronics)

Limited Warranty

1-Year Limited Warranty
