Quick Start Guide
To ensure maximum performance and wireless charging outputs, this device requires a minimum 35W USB-C PD power supply.

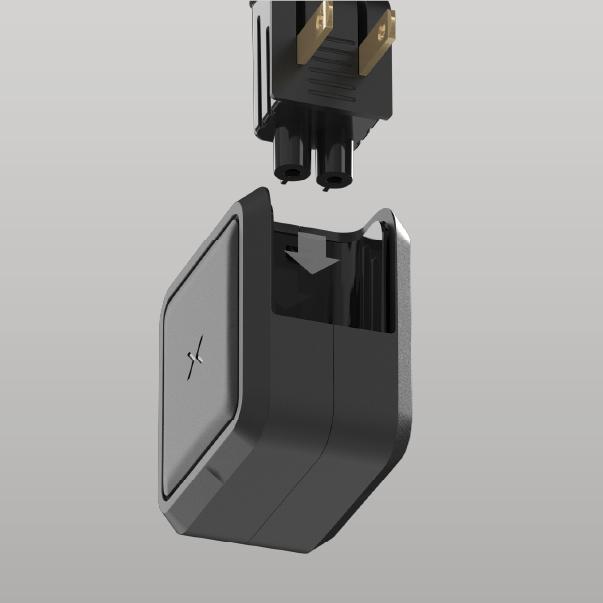

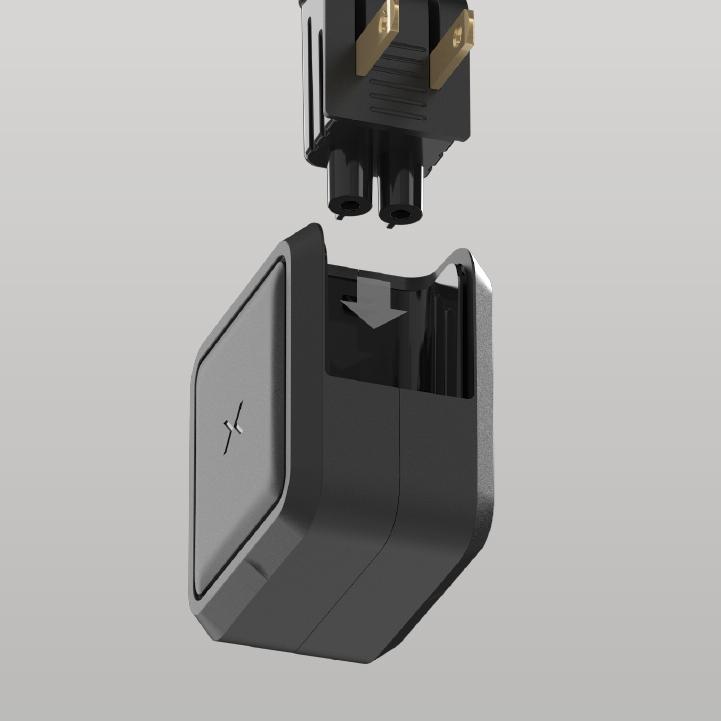

insert regional adapter.

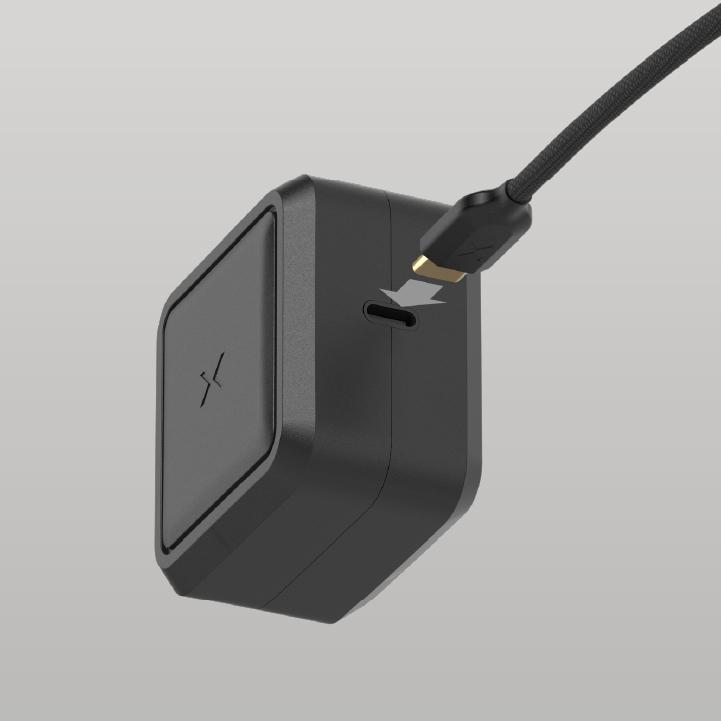

plug usb-c cable into adapter.

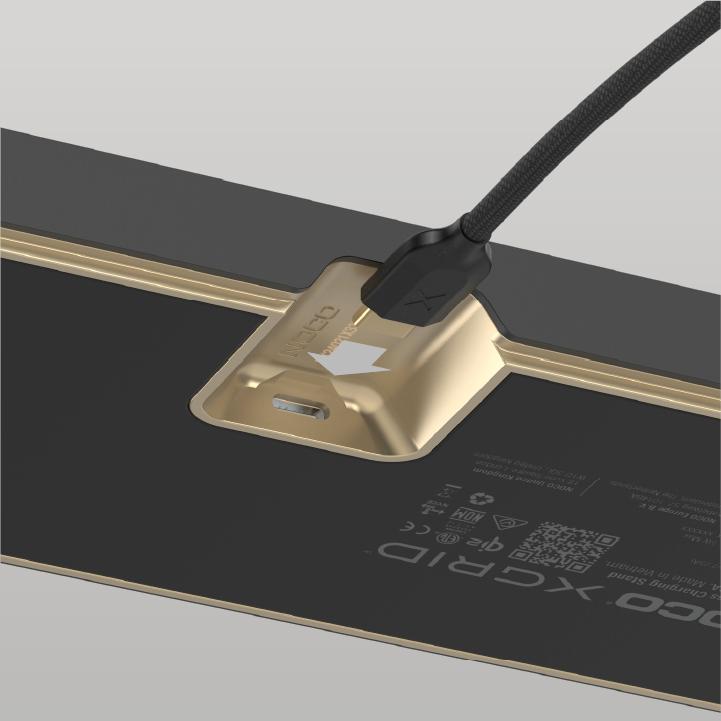

plug usb-c cable into dock.
Ensure the connector is fully inserted.
charge devices.
Connect compatible devices.
Device Compatibility
Qi2-Certified Charging
For use with iPhone 12 and later, select AirPods models, Google Pixel 10 series, Galaxy S25 series, Qi-compatible wireless earbuds, and other Qi2-certified devices.
See Full Device List
Official Apple Watch Charger
For use with Apple Watch Series 1-10, including SE and Ultra models.
See Full Device List
Qi Compatible Charging
For use with select AirPods models, certain wireless earbuds, and additional Qi-compatible devices.
See Full Device List
XDP3B

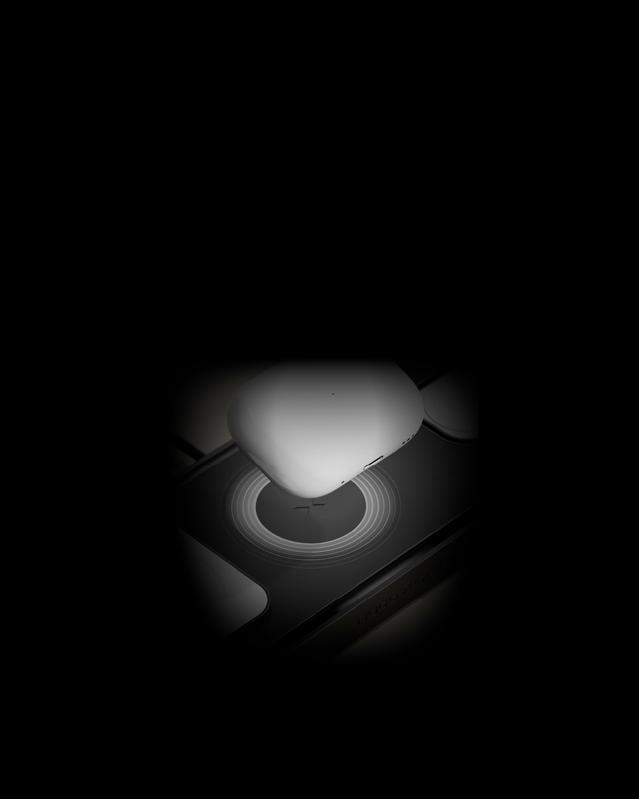

Alignment.

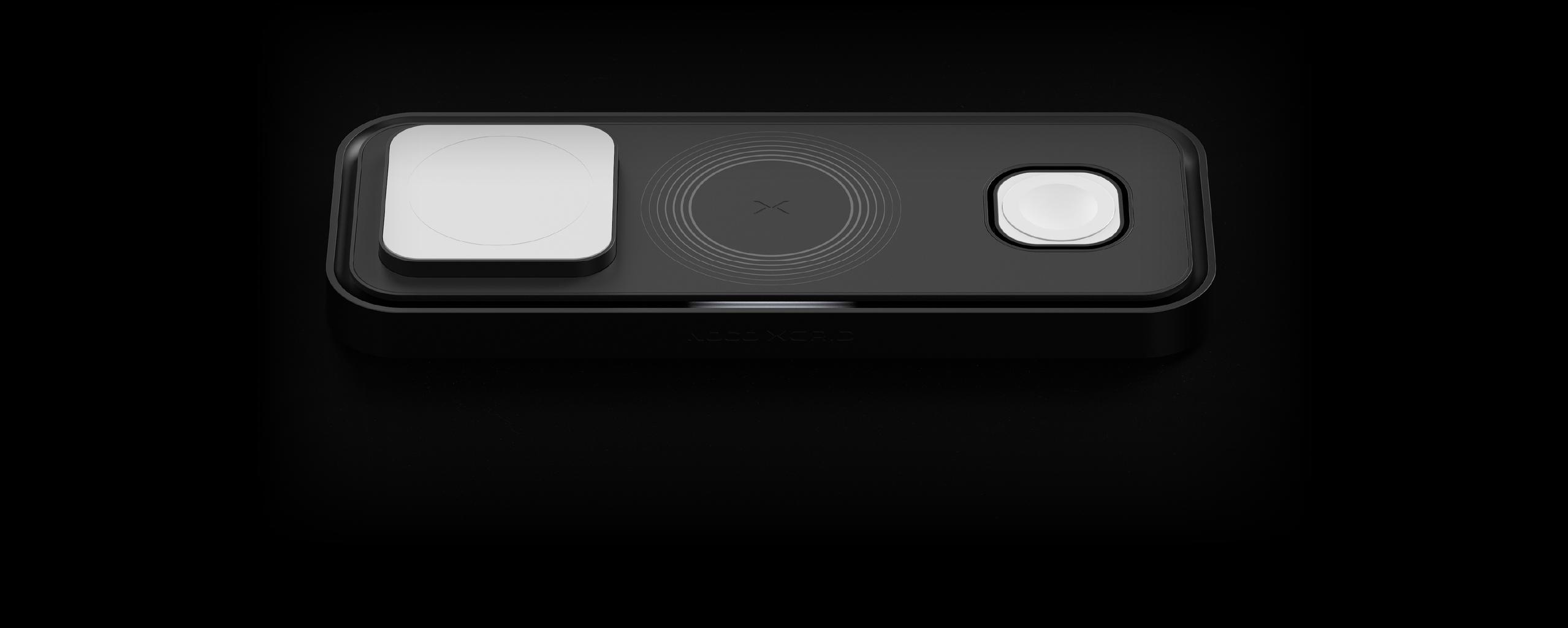

For best results, align devices on the center of the charging pad. The ‘X’ indicates the center of the charging pad. The foreign object detection LED indicator may illuminate if a device is not aligned with the charging coil.
XDP3B
LEDs
No Charge
No light means no device is charging on the center pad. Check that the connector is fully inserted.
Charging
A solid white light shows when a device is correctly charging. This LED only corresponds to the center charging pad.
Foreign Object Detection
A solid amber light means the device is misaligned with the charging coil or a foreign object is present. Place the device on the center ‘X’ of the pad; normal function will resume once the object is removed.
Under-Powered
A pulsing amber light indicates the dock is receiving insufficient power. This happens when connected to an adapter that cannot supply enough output for all pads. In this state, power is split until a 35W adapter is used to restore full charging.
Under-Powered and Charging
Alternating amber and white light means a device is charging while the dock is under-powered. Connect the dock to a minimum 35W adapter to restore full charging capability.
choosing the right case.

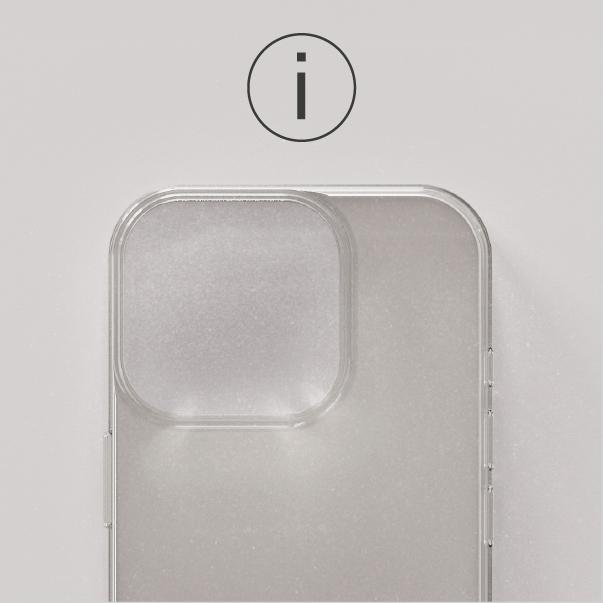

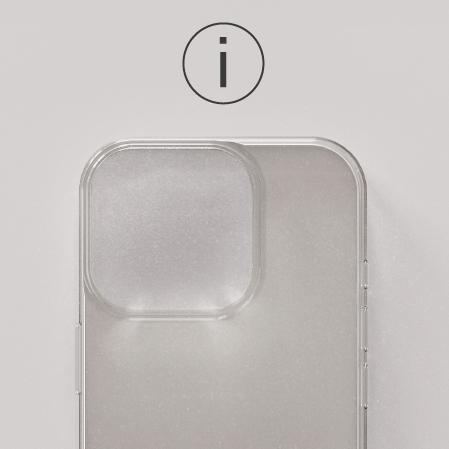

When using a phone case, choose a Qi2 or MagSafe-compatible case to ensure strong magnetic alignment and fast charging. Cases that are non-magnetic, too thick (over 3mm), or include wallets, credit cards, or metal parts can block the charging connection and reduce performance. (i) Cases without magnetic alignment will still allow charging, but Qi2 or MagSafe-compatible cases are recommended for optimal charge times and performance.

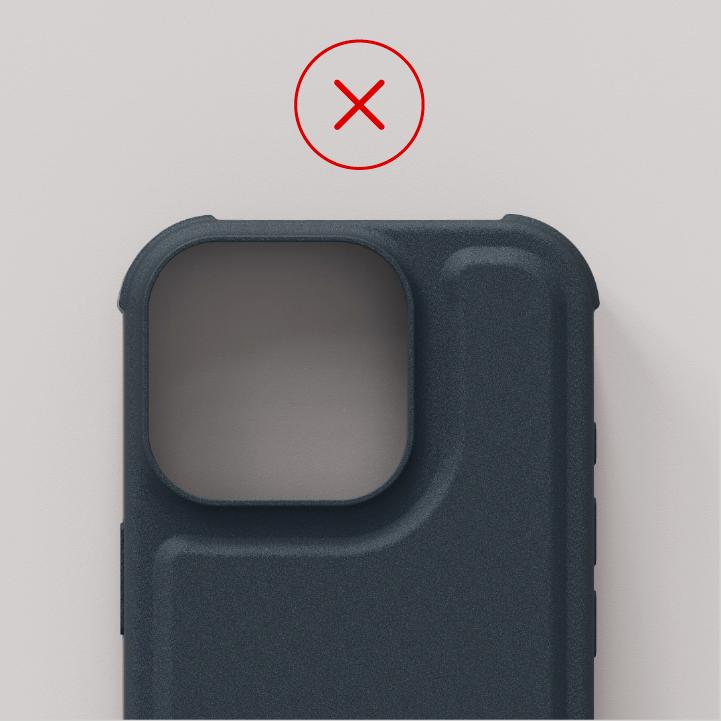

TOO THICK (OVER 3MM)

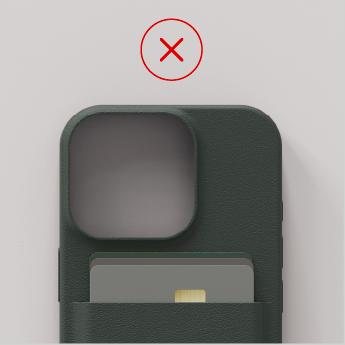

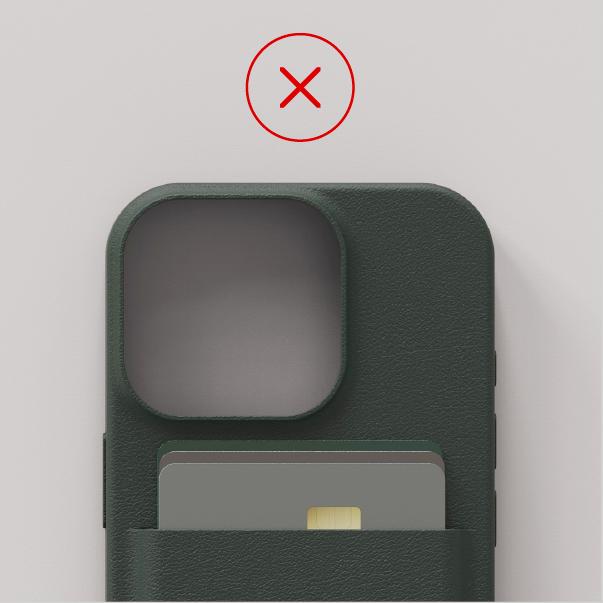

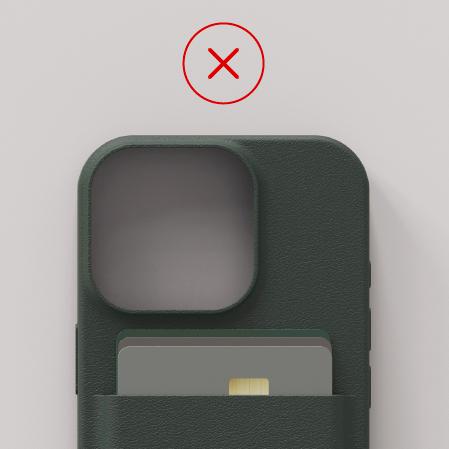

includes wallets, credit cards, or metal parts

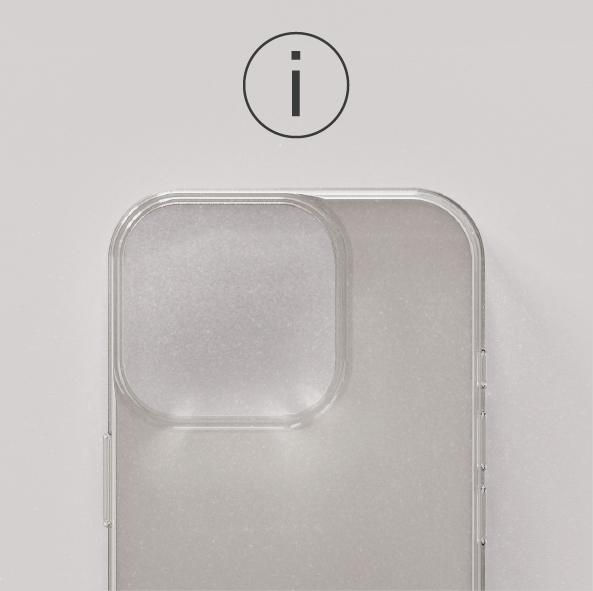

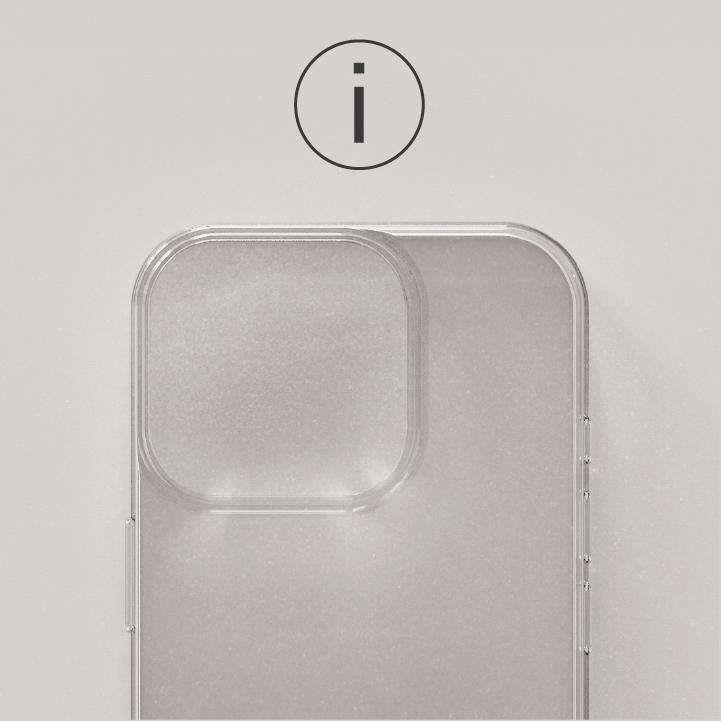

non-magnetic

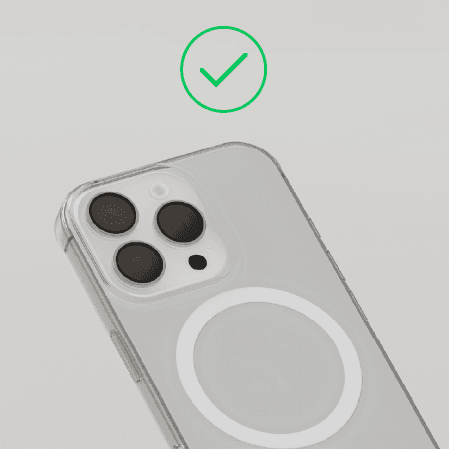

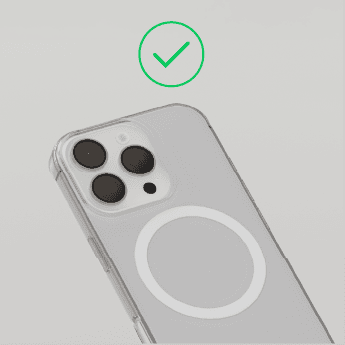

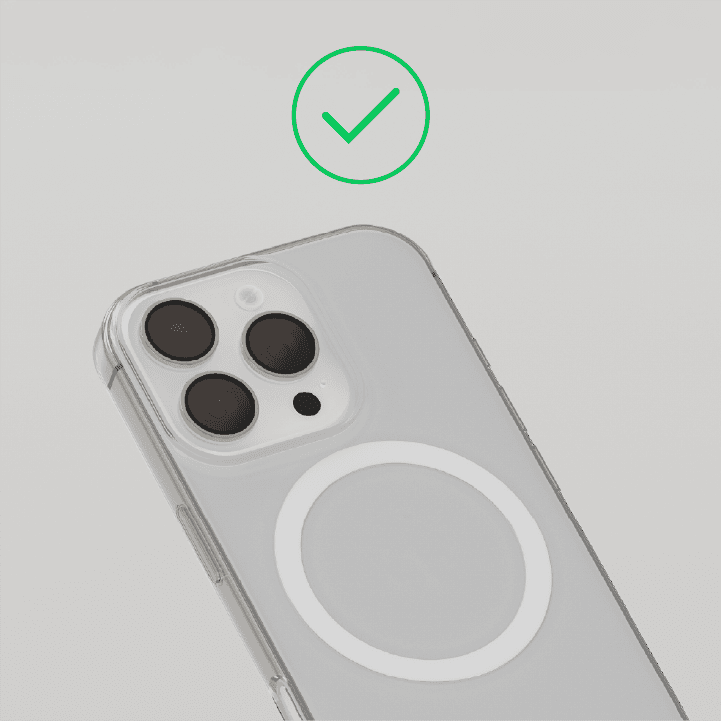

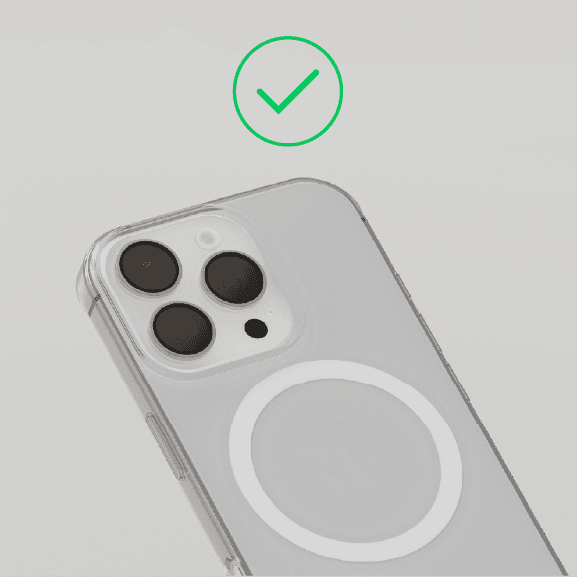

choose a Qi2 or MagSafe-compatible case

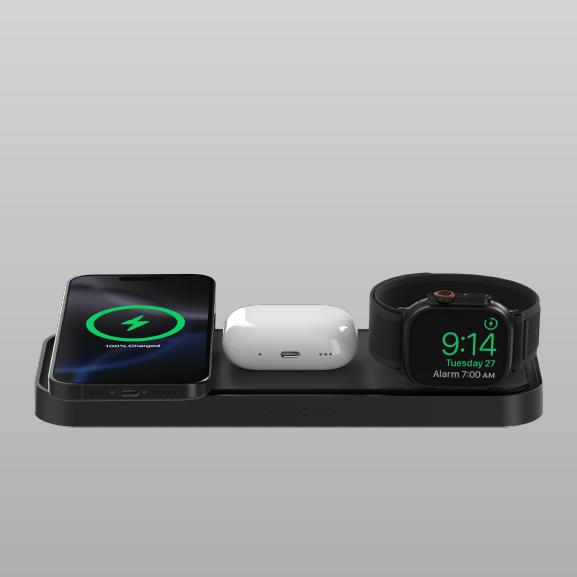

versatile charging for the apple watch.

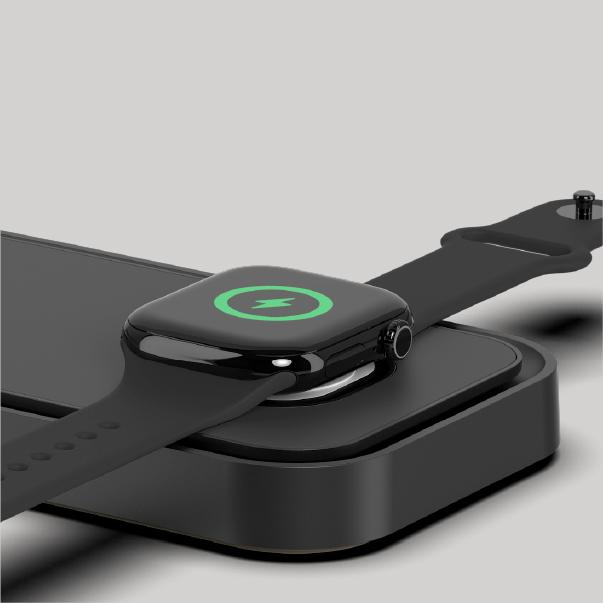

Charge Flat
Featuring a dedicated 5W charging area for Apple Watch.

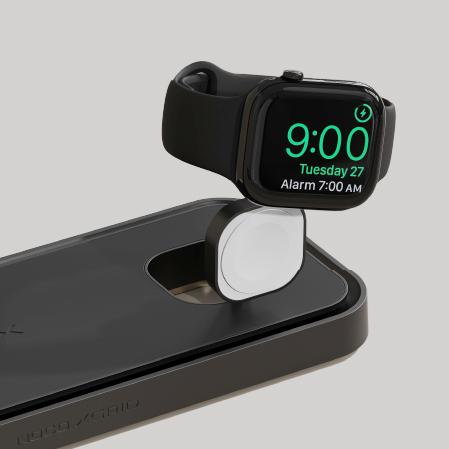

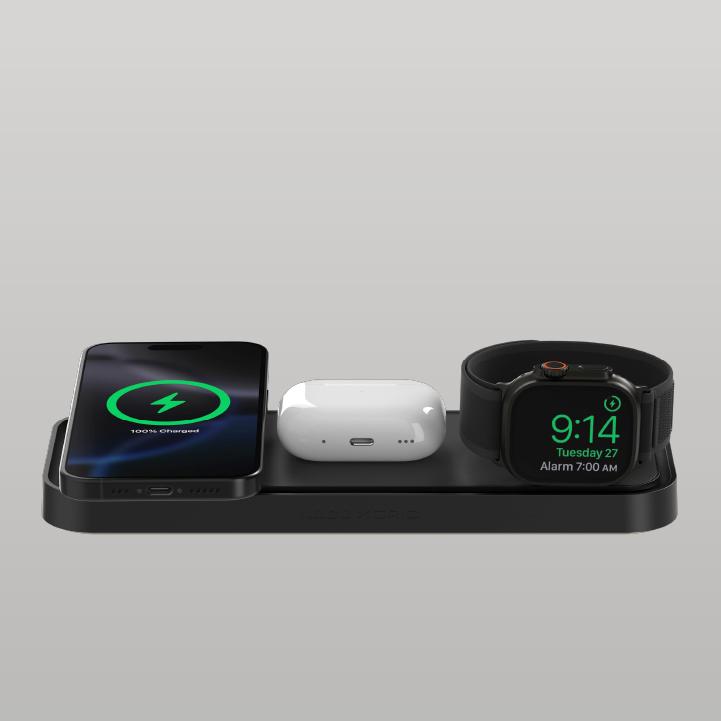

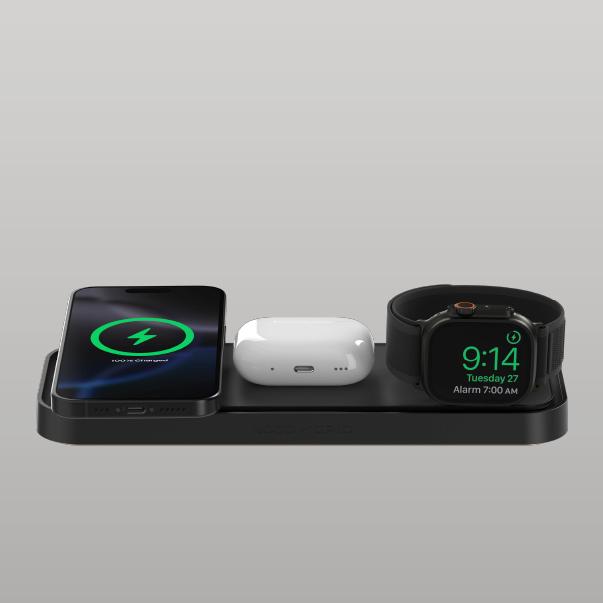

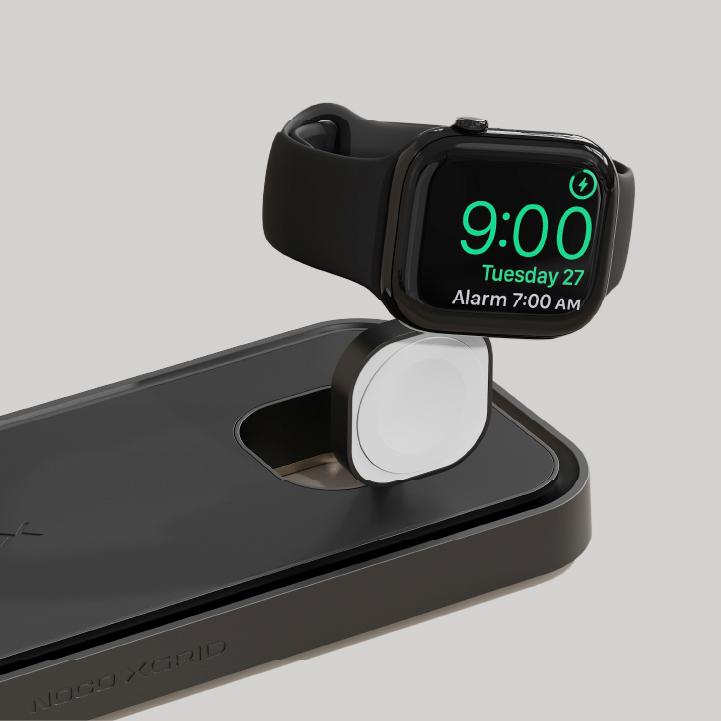

Nightstand mode
Turn your Apple Watch into a bedside alarm clock.
XDP3B
3 Year Warranty
All NOCO XGrid Wireless Charging Pads come with a limited 3 Year warranty. Register your product after purchasing to qualify for the applicable warranty.
