GENIUS2D
Advanced Diagnostics.
Reverse Polarity
Error LED will flash. Charger is connected to the battery in reverse / or battery voltage is too low to detect. Reverse the connections.
Temperature
Hot LED will flash. Internal / external temperature is too high. Charger will resume once the temperature is back within operating limits.
Bad Battery
Error and Standby LED single-flash. Battery will not hold a charge. Have the battery checked by a professional.
Battery Short
Error and Standby LED double-flash.There is a possible battery short, have the battery checked by a professional.
High Voltage
Error and Standby LED triple-flash. The battery voltage is too high for the selected charge mode. Check the battery.
GENIUS2D
Advanced Charging.
Below 75% Charged
Pulsing Red - The battery is less than 75% charged.
Above 75% Charged
Pulsing Green - Bulk Charge complete, optimizing battery for extended life.
100% Charged
Solid Green - The battery is 100% charged.
Maintenance
Slow Pulsing Green - After the battery is fully charged, the charger will continue to provide ongoing maintenance and optimization until disconnected.
SIMPLE INSTALLATION.
SECURE BRACKET.
Use a drill to secure the mounting bracket using self-tapping screws (included).
ATTACH STRAP.
Loop the velcro mounting strap into the mounting bracket.

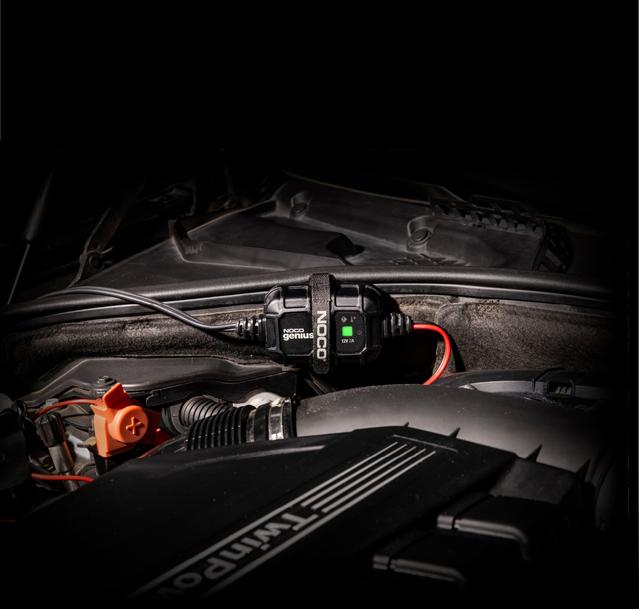

MOUNT GENIUS2D.
Clip the Genius 2D charger into the mounting bracket.
FASTEN STRAPS.
Fasten the Genius 2D charger using the velcro mounting strap.
