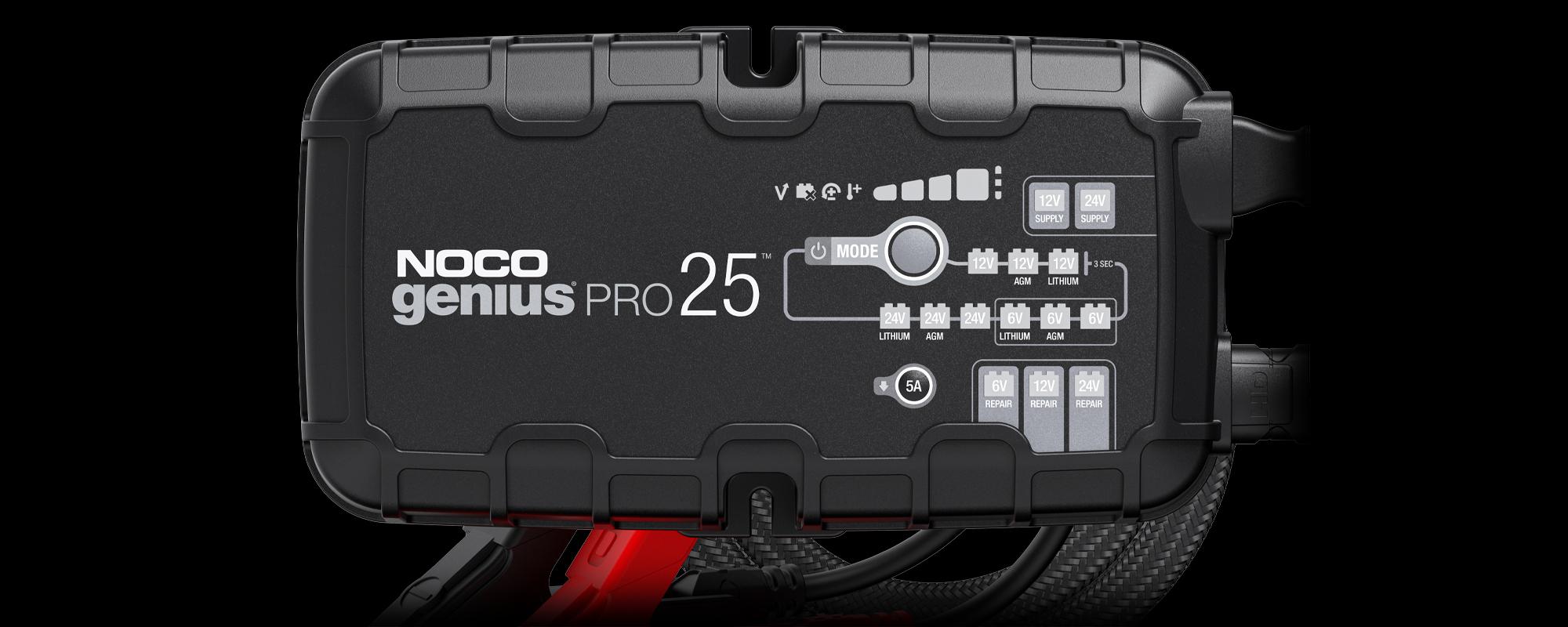

GENIUSPRO25
Advanced Diagnostics.
Standby
The charger is in standby mode or the battery voltage is too low for the charger to detect.
High Voltage
The battery voltage is too high for the selected charge mode. Check the battery and charge mode.
Bad Battery
There is a possible battery short or the battery will not hold a charge. Have the battery checked by a professional.
Polarity
Charger is connected to the battery in reverse. Reverse the connections.
High Temp
Charger internal temperature too high / Charger will resume function once the Charger internal temperature drops.
Low Temp
All Error LED’s will flash. Ambient temperature is too cold. Charger will resume once the temperature is back within operating limits.
GENIUSPRO25
Advanced Charging.
Lead-Acid
Used for 6V, 12V, or 24V wet cell, gel, enhanced flooded, maintenance- free, & calcium batteries.
AGM Mode
Used for 6V, 12V, or 24V AGM batteries.
Lithium
Used for 6V, 12V, or 24V lithium iron phosphate (LiFePO4) batteries with Battery Management Systems (BMS).
Force Mode
Used to charge batteries below 1V. All charge mode LED’s will flash and the selected mode will illuminate.
Supply
Converts to a DC power supply for powering 12V or 24V DC devices, or as a memory retainer when replacing a battery.
Repair
Used to repair old, idle, damaged, stratified, or sulfated batteries.
5A Charge
Allows the unit to operate at a lower charge current for smaller batteries or for maintenance.
GENIUSPRO25
Charge Levels.
25% Charged
Pulsing Red 25% - The battery is less than 25% charged.
50% Charged
Pulsing Red 50% - The battery is less than 50% charged.
75% Charged
Pulsing Orange - The battery is less than 75% charged.
100% Charged
Pulsing Green - The 100% Charge LED will slowly pulse “on” and “off”, when the battery is less than 100% fully charged.
Complete
Solid Green - When the battery is fully charged, the Green LED will be solid, and the 25%, 50% and 75% Charge LEDs will turn “off”.
Optimization
Pulsing Bar - the Bar LED will chase slowly and turn off when the battery is fully optimized. The charger can be left connected indefinitely.
VIDEOS
How to Change Modes on NOCO GENIUS PRO
More Videos
GENIUSPRO25
ACCESSORIES.
Make the most of your NOCO GeniusPRO charger. Add more ways to charge with GeniusPRO accessories. Designed for high power efficiency and performance. The following accessories are compatible with GENIUSPRO25:
