Videos
How to jump start using your NOCO Boost GB20
More Videos
GB20
HOW TO JUMP START.

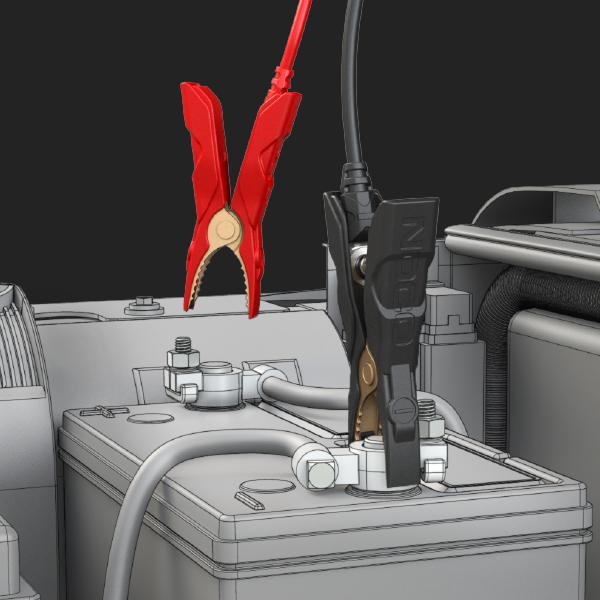

ATTACH CLAMPS.

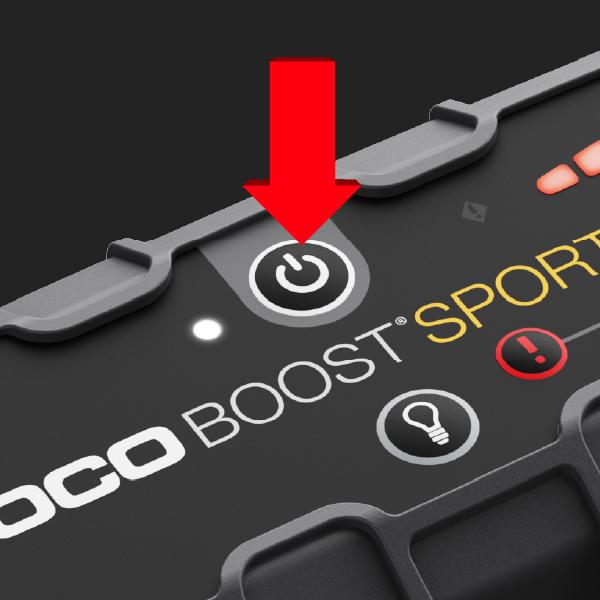

POWER ON.

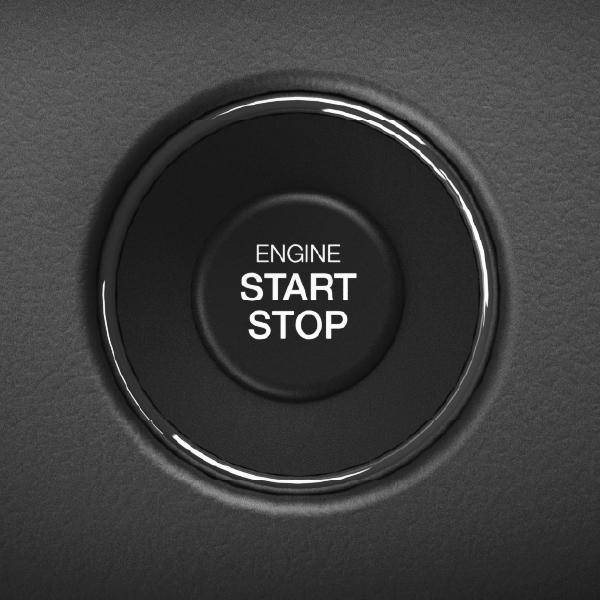

START VEHICLE.

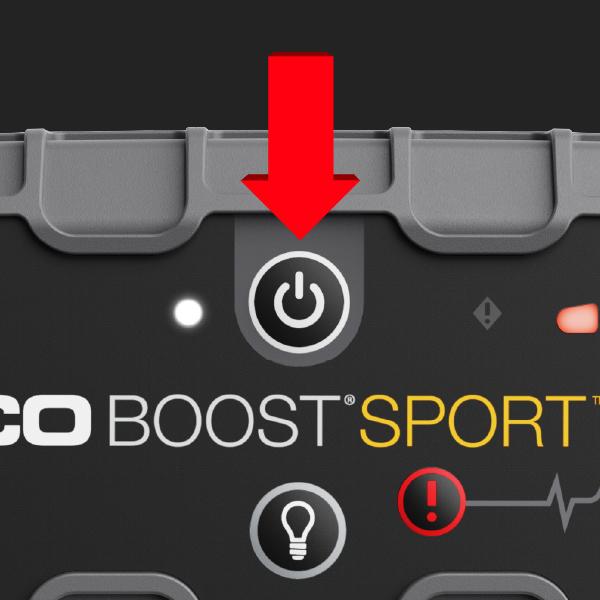

POWER OFF.
Or power off/on to reset.
GB20
LEDs
Power LED
Illuminates White when unit is "on".
Error LED
Illuminates Red if reverse polarity is detected. Blinks “on” and “off” when internal battery temperature is too high.
Charge LEDs
Indicates the charge level of the internal battery.
Boost LED
Illuminates White when Boost is active. LED flashes White when Manual Overide feature is active.
GB20
BUTTONS
Power Button
Push to turn unit "on" and "off".
Light Mode
Toggles the ultra-bright LED light through 7 light modes: 100% > 50% > 10% > SOS > Blink > Strobe > Off
Manual Override
To enable, push and hold for three (3) seconds. WARNING: Disables safety protection and manually forces Boost "On". Only for use when a battery is too low to be detected.
Boost
TROUBLESHOOTING.
ERROR
REASON / SOLUTIONS
Error LED: Solid Red
Reverse polarity/Reverse the battery connections.
Error LED: Blinking Red w/Cables Connected Properly
The internal battery is too hot/ Allow the unit to cool. Bring the unit into cooler environment.
Boost Light Does Not Come On w/Cables Connected Properly
Connected battery is below 2-volts/ Remove all loads, and try again, or use Manual Override Mode.
GB20
MANUAL OVERRIDE
PUSH AND HOLD FOR 3 SECONDS.
WARNING: Disables safety protection and manually forces Boost “On”. Only for use when a battery voltage is too low to be detected.
Connect, Charge, and Store.
GB20 Accessories
The GB20 is compatible with an array of NOCO accessories. Connect to your motorycle battery more easily by mounting the GBC007 eyelets, or charge more quickly with the NUSB211NA charging adapter. Store and protect your GB20 with the GBC013.
