What's In The Box

• NLX27 12V 100Ah Lithium Dual-Purpose Battery
• NLX27 Handle
• (2) SAE Posts
• (2) 3/8"-24 Threaded Terminal
• (2) 3/8"-24 x 5/16"-24 Threaded Terminal
• (2) 3/8-24 x 9/16” Terminal Bolts
• (2) 3/8"-24 Hex Nuts
• (2) 5/16"-24 Hex Nuts
• (4) Terminal Covers
• (2) Terminal Caps
• (2) Hex Keys
• Safety & Warranty Information

Operating Requirements

Operating Temperature: -4° to 122°F (-20º to 50ºC)

Charging Temperature: 14º to 122ºF (-10º to 50ºC)

Storage Temperature: -4° to 122°F (-20º to 50ºC)

Recommended Storage Temperature: 77°F (25°C)

Battery Chemistry

Lithium Iron Phosphate

Battery Capacity

100 Amp-Hours / 1280 Watt-Hours

Starting Current

1400 Amps (Peak)

Continuous Current

175 Amps

BCI Size

Group 27

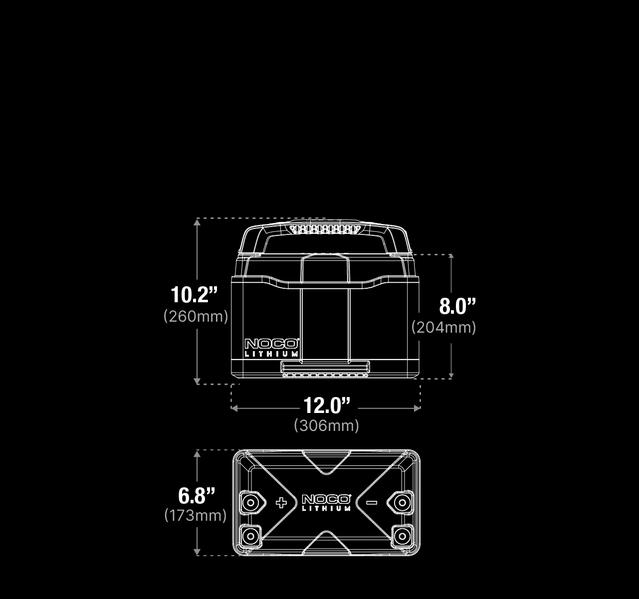

Product Size

Height: 8.03 inches (204 mm)

Width: 12.05 inches (306 mm)

Depth: 6.81 inches (173 mm)

Weight: 28 lbs (12.7 kg)

IP Rating

IP66

Limited Warranty

5-Year Limited Warranty
