NLP9

Tech Specs

What's in the box

  • NLP9 Lithium Powersport Battery
  • (2) 3-Way Terminals
  • (1) 0.5 Inch (12.5 mm) Spacer
  • Hex Key
  • User Guide & Warranty Information

Operating Requirements

Operating Temperature: -4° to 140°F (-20° to 60°C)

Charging Temperature: 14º to 122ºF (-10º to 50ºC)

Storage Temperature: -4º to 140ºF (-20º to 60ºC)

Battery Chemistry

Lithium Iron Phosphate

Battery Capacity

3 Amp-Hours / 38.4 Watt-Hours

Lead-Acid Equivalent

12 Amp-Hours

Starting Current

400 Amps (Peak)

BCI Size

9

Compatible Battery Sizes

BTX7A-BS
BTX9-BS
BTR9-BS
YTX9
YTX7A-BS
YTX9-BS
ETX9

Product Size

Height: 3.64 inches (92.5 mm)

Width: 5.87 inches (149 mm)

Depth: 3.43 inches (87 mm)

Weight: 2.29 lbs (1.03 kg)

IP Rating

IP66

Limited Warranty

5-Year Limited Warranty

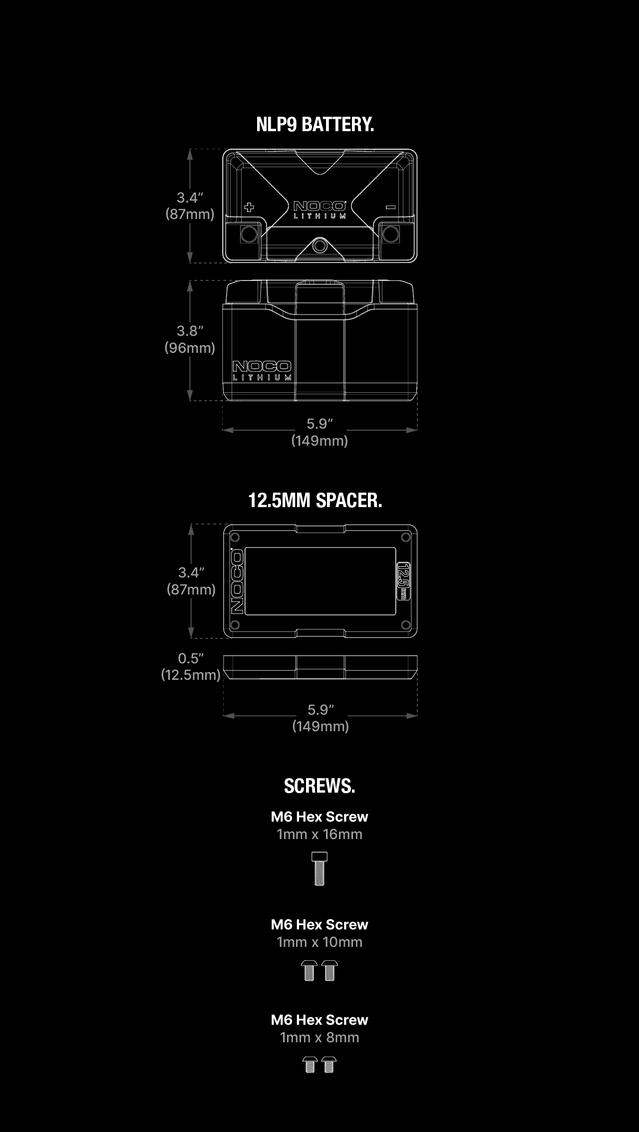

NLP9_Dimensions_F9T_XS

DIMENSIONS.
