NLP30

Tech Specs

What's in the box

  • NLP30 Lithium Powersport Battery
  • (2) 3-Way Terminals
  • Hex Key
  • User Guide

Operating Requirements

Operating Temperature: -4° to 140°F (-20° to 60°C)

Charging Temperature: 14º to 122ºF (-10º to 50ºC)

Storage Temperature: -4º to 140ºF (-20º to 60ºC)

Battery Chemistry

Lithium Iron Phosphate

Battery Capacity

7.8 Amp-Hours / 99.84 Watt-Hours

Lead-Acid Equivalent

32 Amp-Hours

Starting Current

700 Amps (Peak)

BCI Size

30

Compatible Battery Sizes

BTX30L-BS
BTX30L
GYZ32HL
YIX30L
ETX30L

Product Size

Height: 6.89 inches (175 mm)

Width: 6.54 inches (166 mm)

Depth: 4.96 inches (126 mm)

Weight: 5 lbs (2.27 kg)

IP Rating

IP66

Limited Warranty

5-Year Limited Warranty

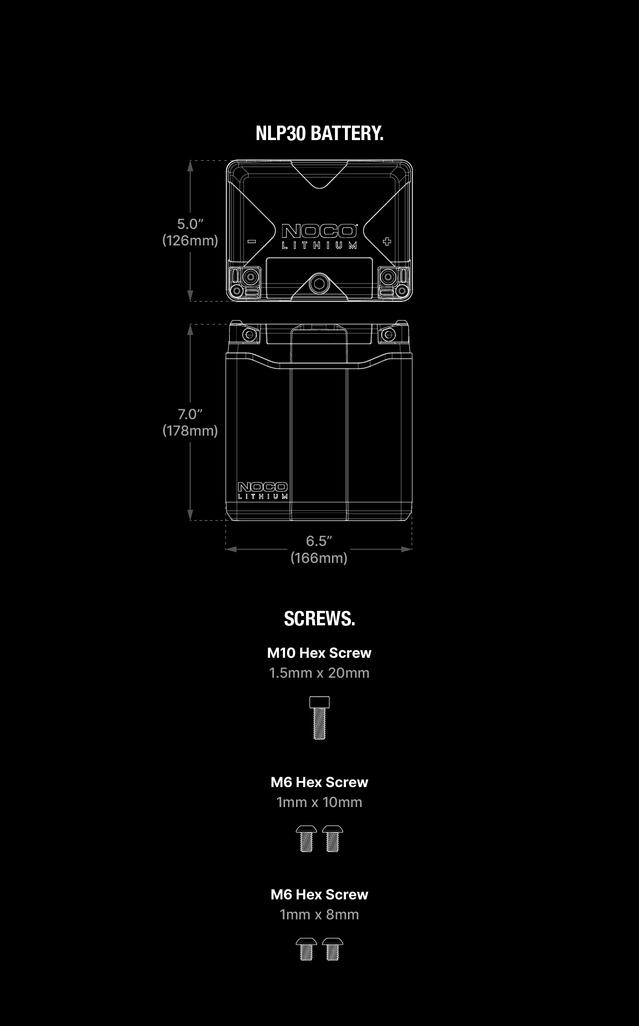

NLP30_Dimensions_F9T_XS

Dimensions.
