What's In The Box

• GENPRO10X1 On-Board Battery Charger
• (2) Self-Tapping Screws
• User Guide & Warranty Information

Operating Requirements

Line Voltage: 120V to 240V AC

Frequency: 50Hz to 60Hz

Operating Temperature: -4° to 104°F(-20° to 40°C)

Storage Temperature: -22° to 140°F(-30° to 60°C)

Relative Humidity: 0 to 95% Non-Condensing

Charging

Current: 10 Amps DC x 1 Bank

Voltages: 12 Volts

Chemistry: Lead-Acid and Lithium

Types: AGM, CA, EFB, Gel, Lithium, MF, Wet

Capacity Range: Up to 230 Amp-Hours

Maintenance: All Battery Sizes

Power

Consumption: 150 Watts x 1 Bank (150 Watts Max)

Safety

Short-Circuit: Yes

Open-Circuit: Yes

Overheating: Yes

Overcharge: Yes

Spark-Proof: Yes

Reverse Polarity: Yes

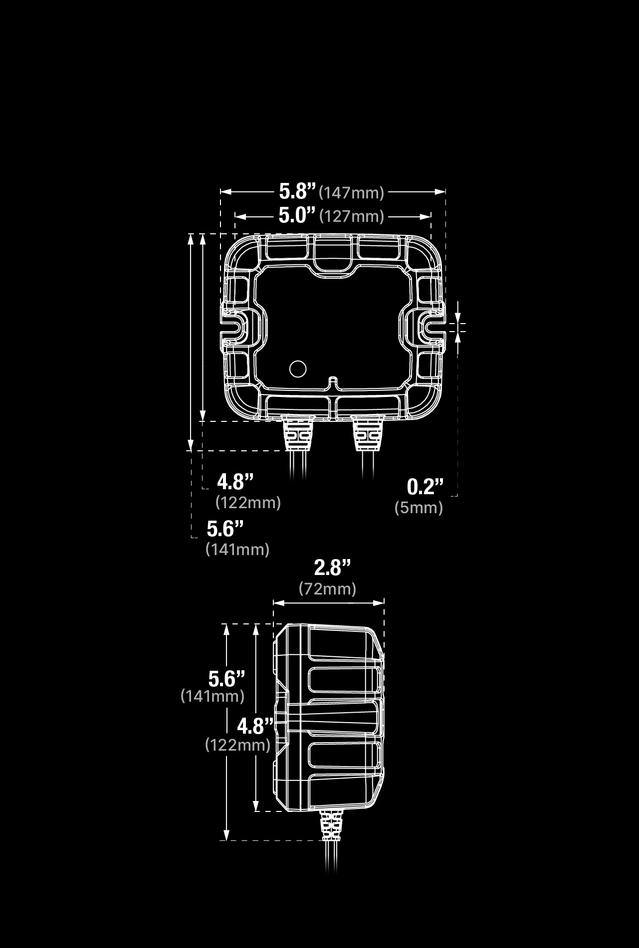

Product Size

Height: 5.55in (141mm)

Width: 5.79in (147mm)

Depth: 2.83in (72mm)

Weight: 5.33lb (2.42kg)

Cable Management

DC Cable + Clamp Length: 72in (182cm)

DC Cable Size: 14

DC Fuse Size: 15

AC Cable Length: 72in (182cm)

AC Cable Size: 18

Oil, gas, grease, water, chemical, UV, abrasion resistant

Protection

IP Rating: IP68

Limited Warranty

3- Limited Warranty
