AIR20
Tech Specs
What's In The Box
- AIR20 Portable Air Compressor w/ 3ft Braided Hose & 20ft Power Cord + Clamps
- Safety & Warranty Information
- Microfiber Storage Bag
- Presta Valve Adapter
- Needle Adapter
- Inflatable Toy Adapter
Operating Requirements
Operating Temperature: -4° to 122°F(-20°C to +50°C)
Storage Temperature: -4° to 122° F(-20°C to +50°C)
Relative Humidity: 0 to 95% Non-Condensing
Power
Voltage: 12 Volts
Max Current Draw: 22 Amps
Working Current: 18 Amps
Motor Rating: 280 Watts
Motor Efficiency: 80%
Cooling: Natural Convection
Air Compressor
Max Pressure: 100 psi / 6.89 bar / 689.48 kPa
Max Tire Size: 35 inches
Max Airflow: 47 Liters Per Minute
Duty Cycle: 15 min @ 30PSI on time / 45 min off time
Manual Mode Duty Cycle: 5 min on time / 30 min off time
Fill Time 0 - 40 PSI: 2.5 min +/- 10% with 205-65R16 95H Tire
Fill Time 35 - 40 PSI: 25 sec +/- 10% with 205-65R16 95H Tire
Pressure Gauge: Intuitive Interface + Digital Gauge
Features: Dwell, Auto-Memory, Auto-Shutoff, Manual Mode
Cord Management
DC Cable Length: 20ft (6.1m)
Plug Type: AA01 Micro Clamps
DC Cable Size: 14 AWG
DC Fuse Size: 25A Fuse
Air Hose Length: 3ft (0.91m)
Air Hose Material: Black EDPM with Polyester Braiding
Oil, gas, grease, water, chemical, UV, abrasion resistant
Safety
Over-Current: Yes
Over-Temperature: Yes
LED Flashlight
60 Lumens
Number of Modes: 6X (100%, 50%, 10%, SOS, Blink, Off)

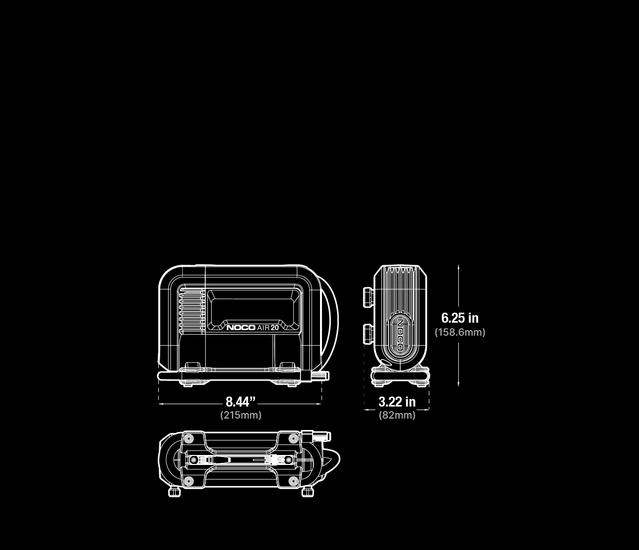

Product Size
Height: 6.25in (159mm)
Width: 8.44in (214mm)
Depth: 2.93in (74mm)
Weight: 6.81lb (3.09kg)
IP Rating
IP55 (Electronics)
Limited Warranty
1-Year Limited Warranty
