What's In The Box

• AIR10 Portable Air Compressor w/ 3ft Braided Hose & 10ft Power Cord + 12V Cigarette Lighter Plug
• Safety & Warranty Information
• Microfiber Storage Bag
• Presta Valve Adapter
• Needle Adapter
• Inflatable Toy Adapter

Operating Requirements

Operating Temperature: -4°F to 122°F(-20°C to +50°C)

Storage Temperature: -4° to 122° F (-20°C to +50°C)

Relative Humidity: 0 to 95% Non-Condensing

Vehicle Requirement: 12V Port to include a minimum 15A Fuse

Power

Voltage: 12 Volts

Max Current Draw: 12 Amps

Working Current: 10 Amps

Motor Rating: 138 Watts

Motor Efficiency: 80%

Cooling: Natural Convection

Air Compressor

Max Pressure: 60 psi / 4.14 bar / 413.68 kPa

Max Tire Size: 31 Inches

Max Airflow: 36 Liters Per Minute

Duty Cycle: 25 min @ 30PSI on time / 35 min off time

Manual Mode Duty Cycle: 5 min on time / 30 min off time

Fill Time 0 - 40 PSI: 3.8 min +/- 10% with 205-65R16 95H Tire

Fill Time 35 - 40 PSI: 41 sec +/- 10% with 205-65R16 95H Tire

Pressure Gauge: Intuitive Interface + Digital Gauge

Features: Dwell, Auto-Memory, Auto-Shutoff, Manual Mode

Cord Management

DC Cable Length: 10ft (3m)

Plug Type: GC019 Hardwired Cigarette Lighter Plug

DC Cable Size: 18 AWG

DC Fuse Size: 15A Fuse

Air Hose Length: 3ft (0.91m)

Air Hose Material: Black EDPM with Polyester Braiding

Oil, gas, grease, water, chemical, UV, abrasion resistant

Safety

Over-Current: Yes

Over-Temperature: Yes

LED Flashlight

60 Lumens

Number of Modes: 6X (100%, 50%, 10%, SOS, Blink, Off)

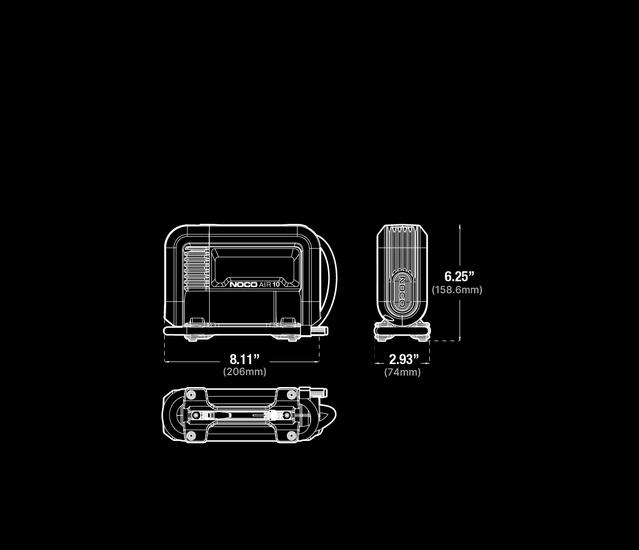

Product Size

Height: 6.25in (159mm)

Width: 8.11in (206mm)

Depth: 2.93in (74mm)

Weight: 5.39lb (2.44kg)

IP Rating

IP55 (Electronics)

Limited Warranty

1-Year Limited Warranty
