Easy To Use.
CONNECT TO 12V PLUG.

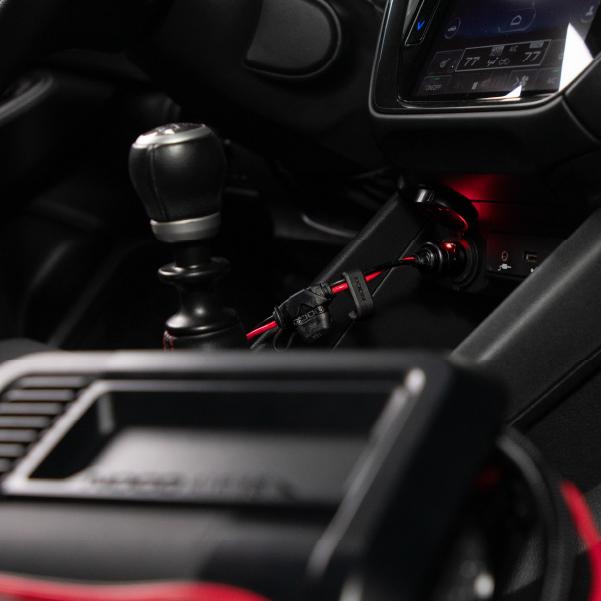

The vehicle must be on/running for NOCO AIR10 to power on. Connect the 12V cable on the AIR10 to the female 12V plug (12V AUX/cigarette lighter port) in the vehicle.
CONNECTING AIR HOSE.

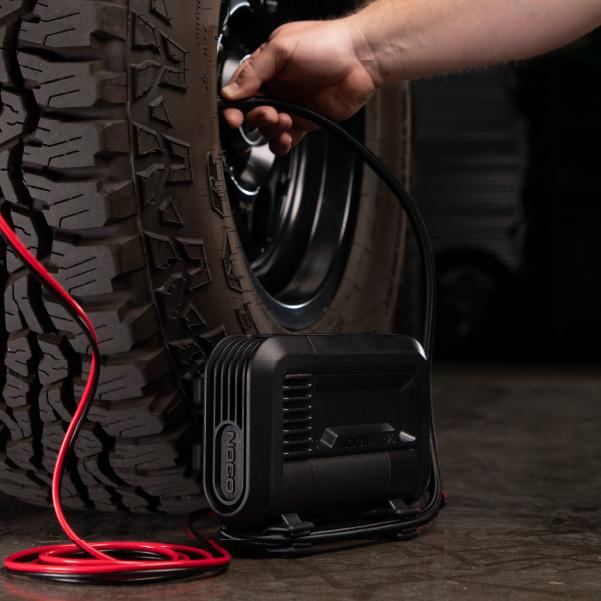

Connect the air hose on the AIR10 to the tire before starting inflation. The air hose will screw onto the tire's air valve. No tools are necessary and should be hand tightened.
SET PSI.

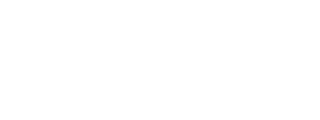

To set the pressure, press the < or > buttons. The minimum pressure that can be set is 15.0 PSI. For applications requiring less than 15.0 PSI, it is recommended to use Manual Mode.
POWER ON.
Power button is pressed, the compressor will turn on and will display the actual pressure and the “SET” LED will turn off. The compressor will turn off when the desired pressure has been reached.
AIR10
Intuitive Pressure Gauge.
Set Pressure

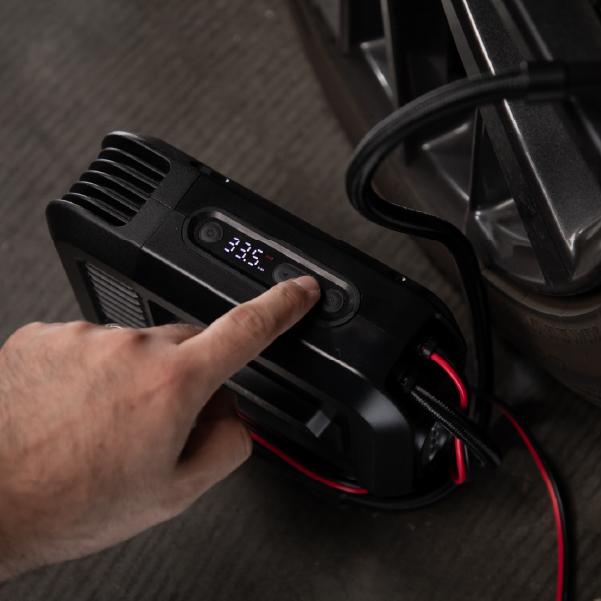

When the display is in pressure set mode the “SET” LED will illuminate. Use the arrow buttons to set the desired pressure.
Actual Pressure

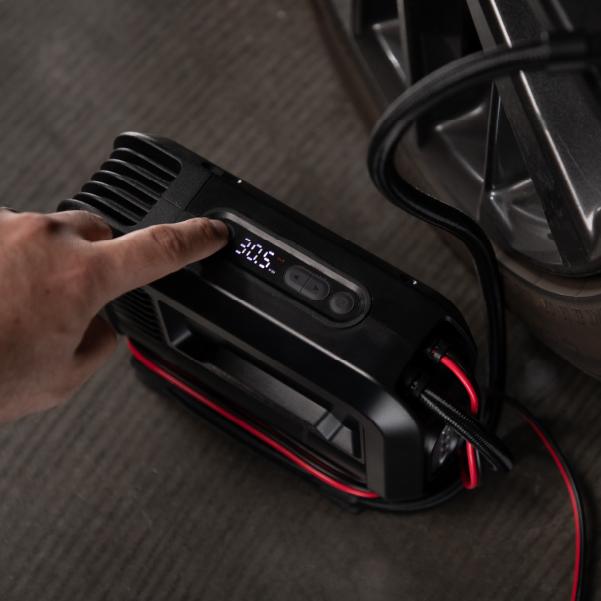

When the “POWER” button is pressed, the compressor will begin inflating, the “SET” LED will turn off and the actual pressure will be displayed.
Change Units
To change units of pressure, hold both arrow buttons simultaneously for 3 seconds, use either arrow button to cycle through units.
Auto-Shutoff
Auto-shutoff works when pressure is above 15 PSI. Simply set the pressure and start inflating. AIR will shut off when the desired pressure is reached.
Manual Mode
When pressure is below 15 PSI, use manual mode. Set pressure to 0.0 and press the "POWER" button. AIR will run until the "POWER" button is pressed again.
Error - Hot
Internal temperature is too high, the compressor will shut off. Wait for the unit to cool down before powering on again.
Error - Cold
Temperature is too cold, the compressor will shut off. Compressor can resume once temperature is back within limits.
AIR10

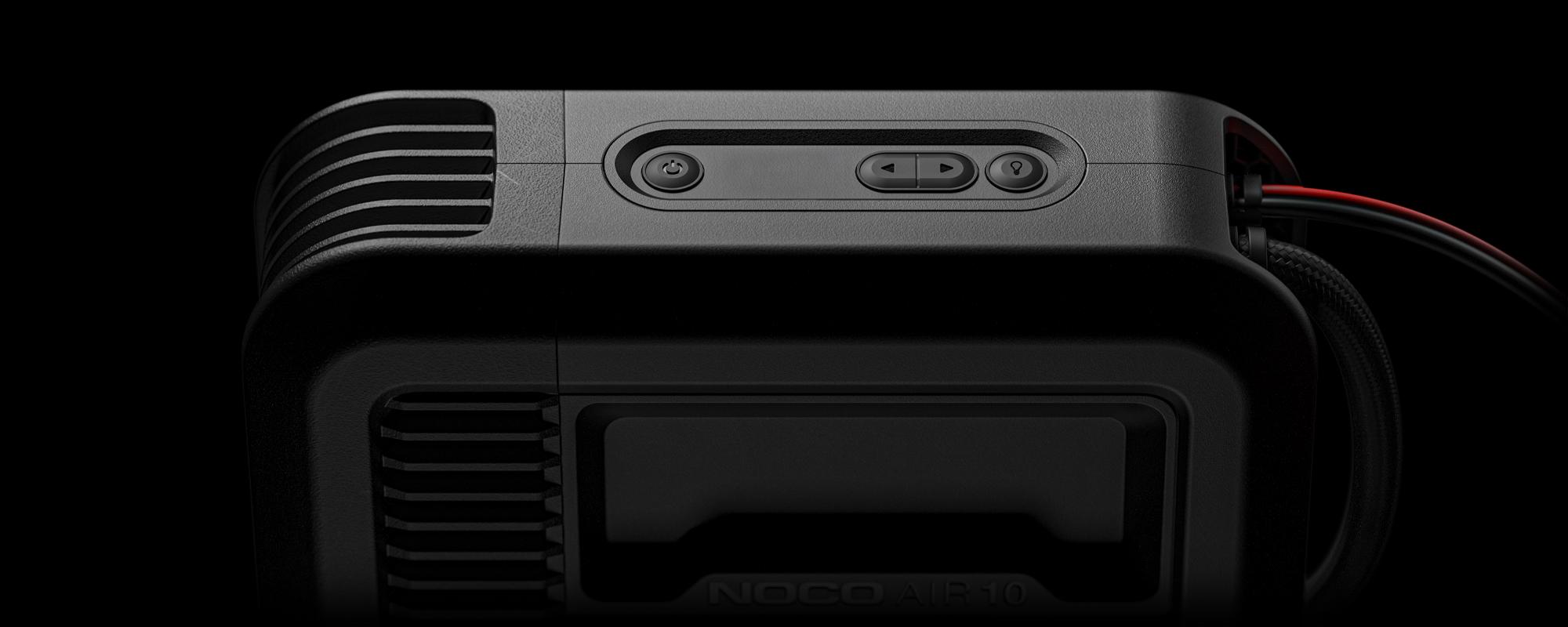

Buttons.
Power Button
Push to start or stop inflating.
Arrow Buttons
Hold both Arrow Buttons to begin changing the pressure units. When LED Display is on, use the Arrow Buttons to change the set pressure.
Light Mode Button
Toggles the ultra-bright LED light through 6 light modes: 100% > 50% > 10% > SOS > Blink > Off.
AIR
1 YEAR WARRANTY.
All NOCO Air Portable Air Compressors come with a limited 1 Year warranty. Register your product after purchasing to qualify for the applicable warranty.
AIR10
COMPATIBLE ACCESSORIES.
The following accessories are compatible with the selected product.
